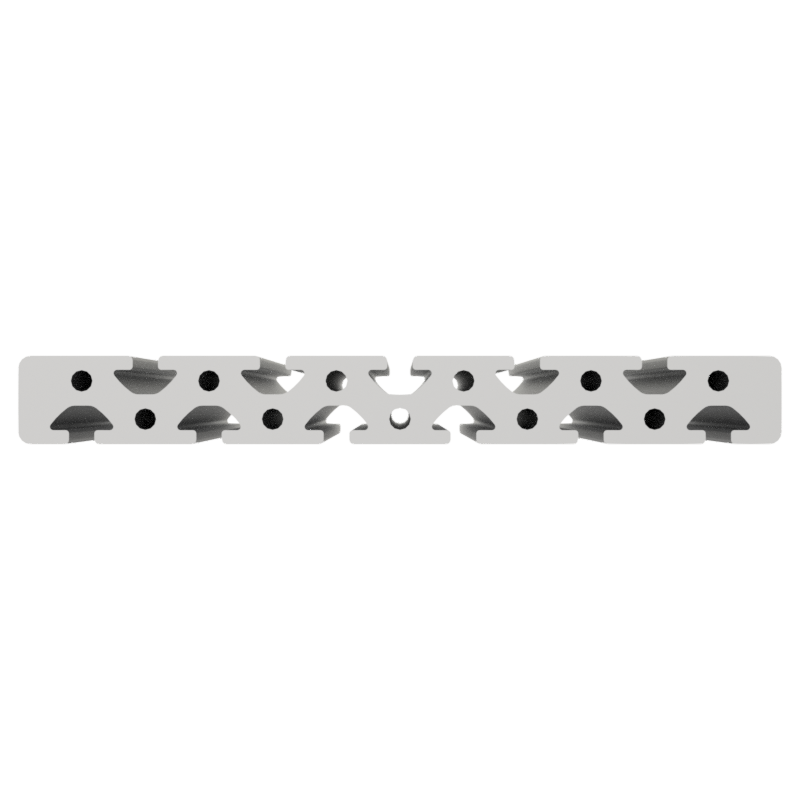

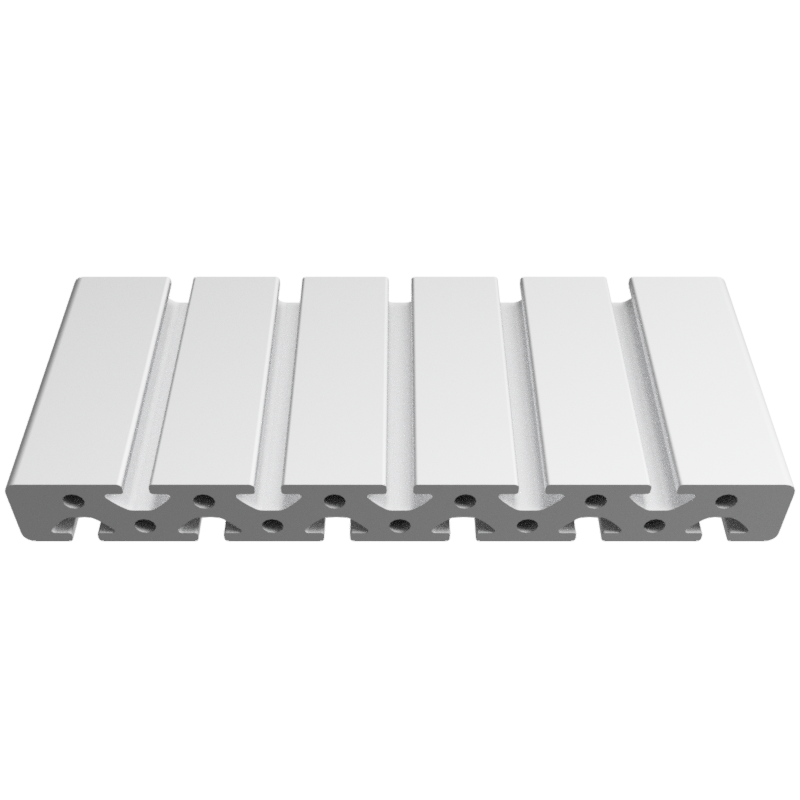

Profile 8 200x40, natural
Profile length:
Cut length
Maunsystem GmbH
Loading...
€321.16*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€321.16 *
Product number:
PI-1081 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1017623
Weight:
1.67 kg
Description
Product information "Profile 8 200x40, natural"
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 0.0.473.88
Details
- ESD ESD-safe = Ja
- Â Area A = 45,7 cm2
- Â Area moment of inertia Torsion It = 26,82 cm4
- Â Area moment of inertia um x-axis Ix = 30,25 cm4
- Â Area moment of inertia um y-axis Iy = 2.347,38 cm4Â
- Weight spec. Length [kg/m] m = 12,29 kg/mÂ
- Delivery unit Cut to length max. 6000 mmÂ
- Material Al, anodisedÂ
- permissible Slot pull-out force F = 5000 N
- Â Section modulus um x-axis Wx = 21,3 cm3
- Â Section modulus um y-axis Wy = 195,62 cm3
| Colour: | natural |
|---|---|
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Profile height: | 28 mm |
| Profile length: | Cut length |
| Profile width: | 240 mm |
| Series: | Series 8 |
| Size: | 240x28 |
