Angle and flat profiles in aluminium – slot 8 compatible
I-type profiles
Profiles 5
Profiles 6
Profiles 8
Profiles 8X
Profiles 8-30
Profiles 10
Profiles 12

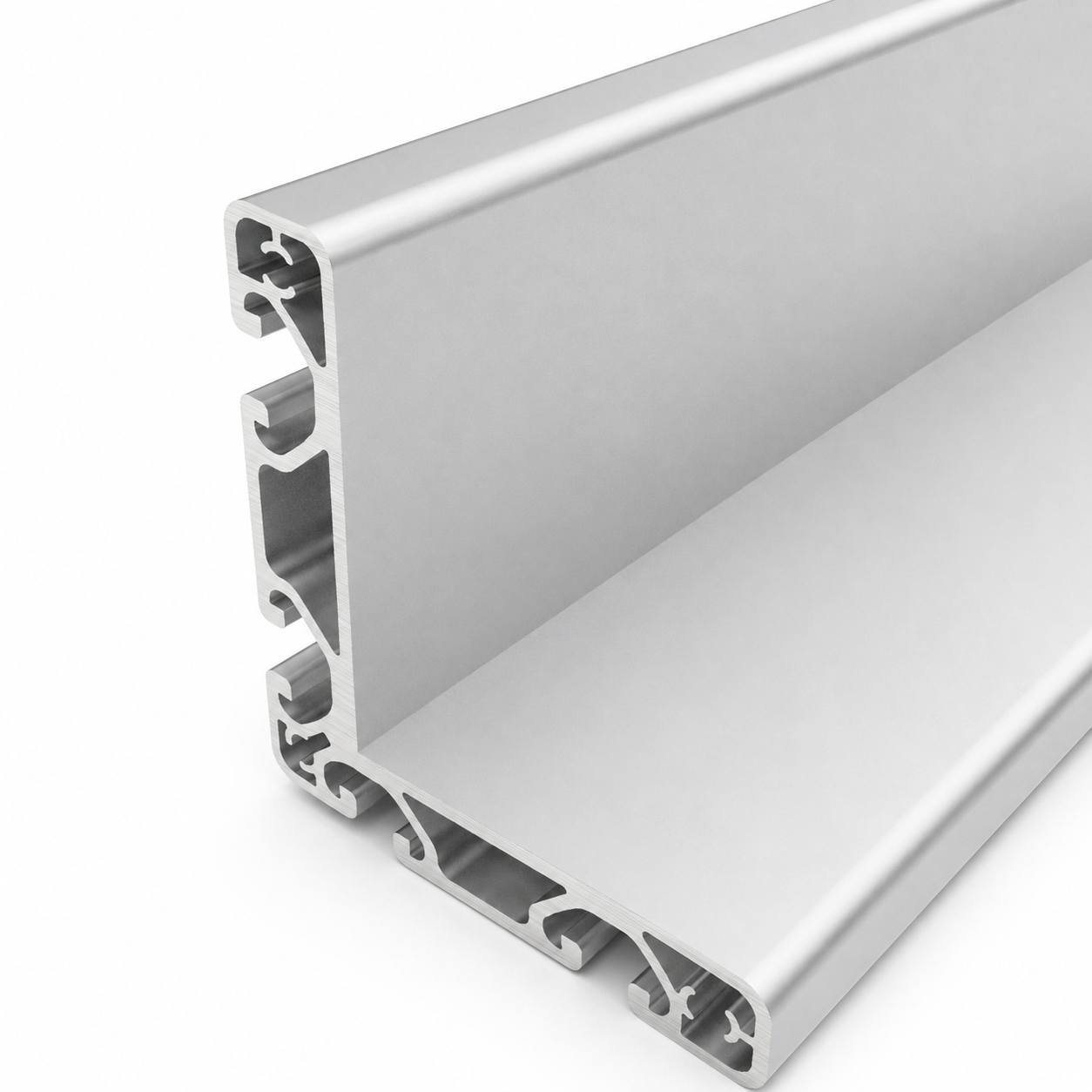

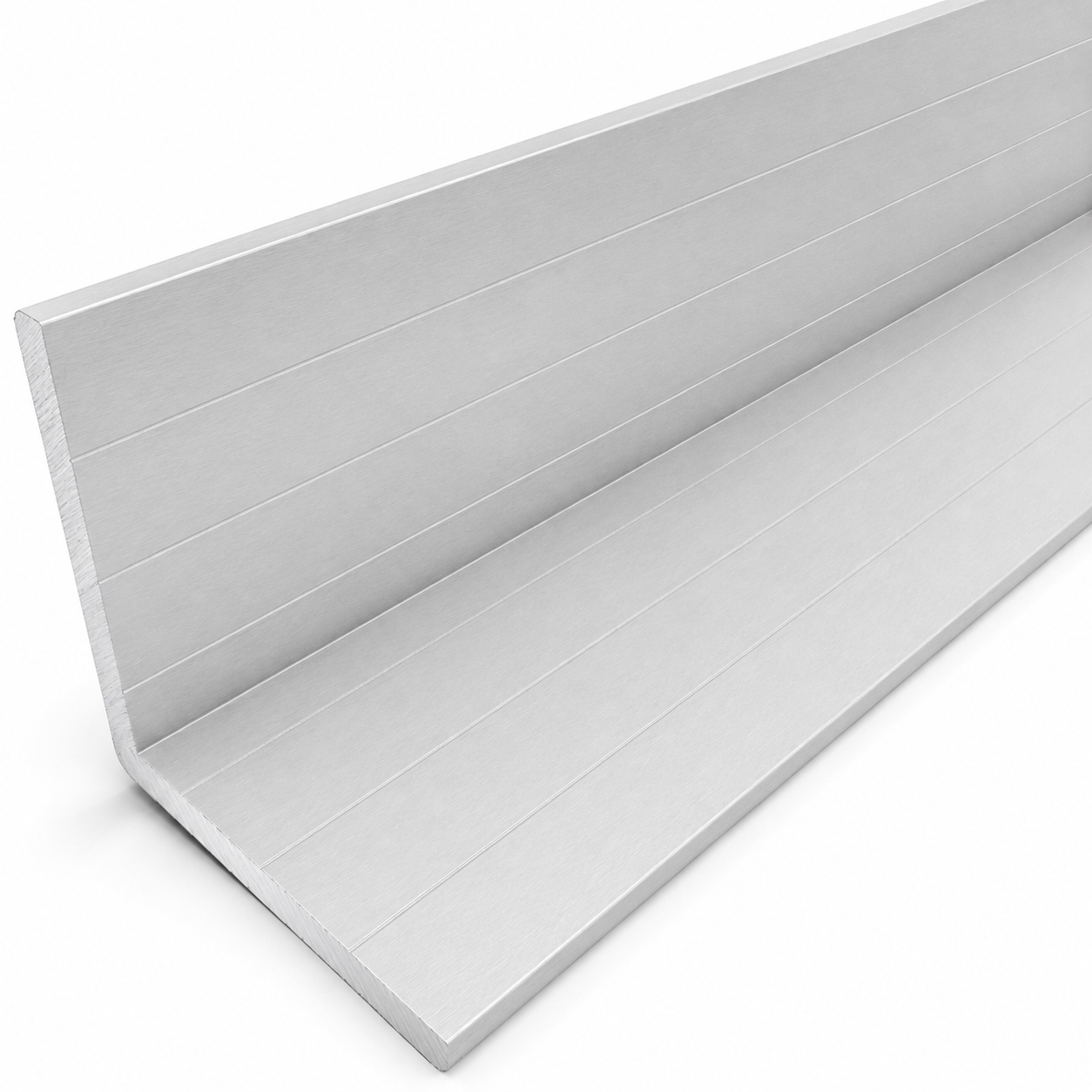

Profile 8 W80x80 E, natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 3000 mmCompatible with item 7.0.001.12
Profile 8 W80x80 E, natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mm
Profile 8 W80x80x40 light, natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 6030 mm

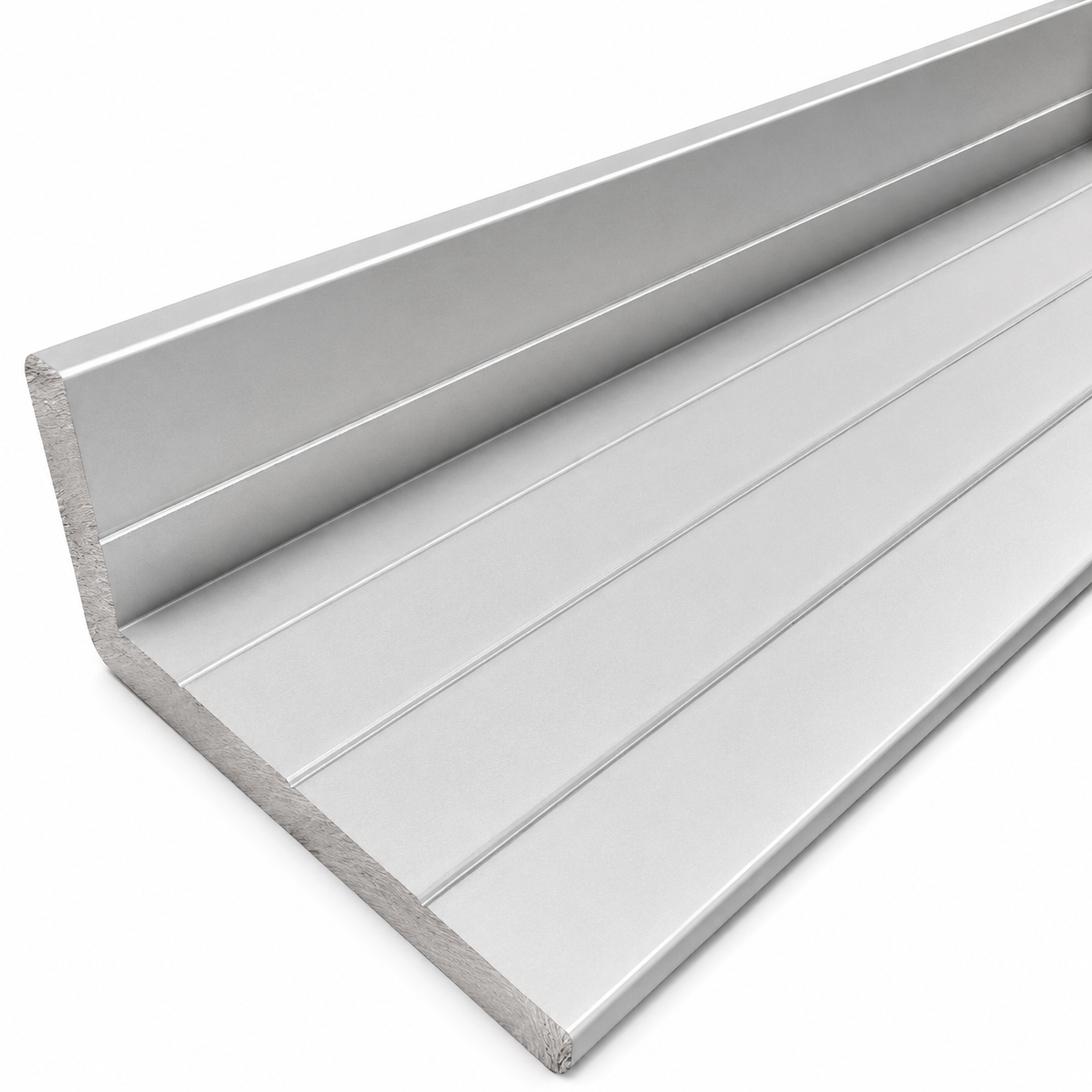

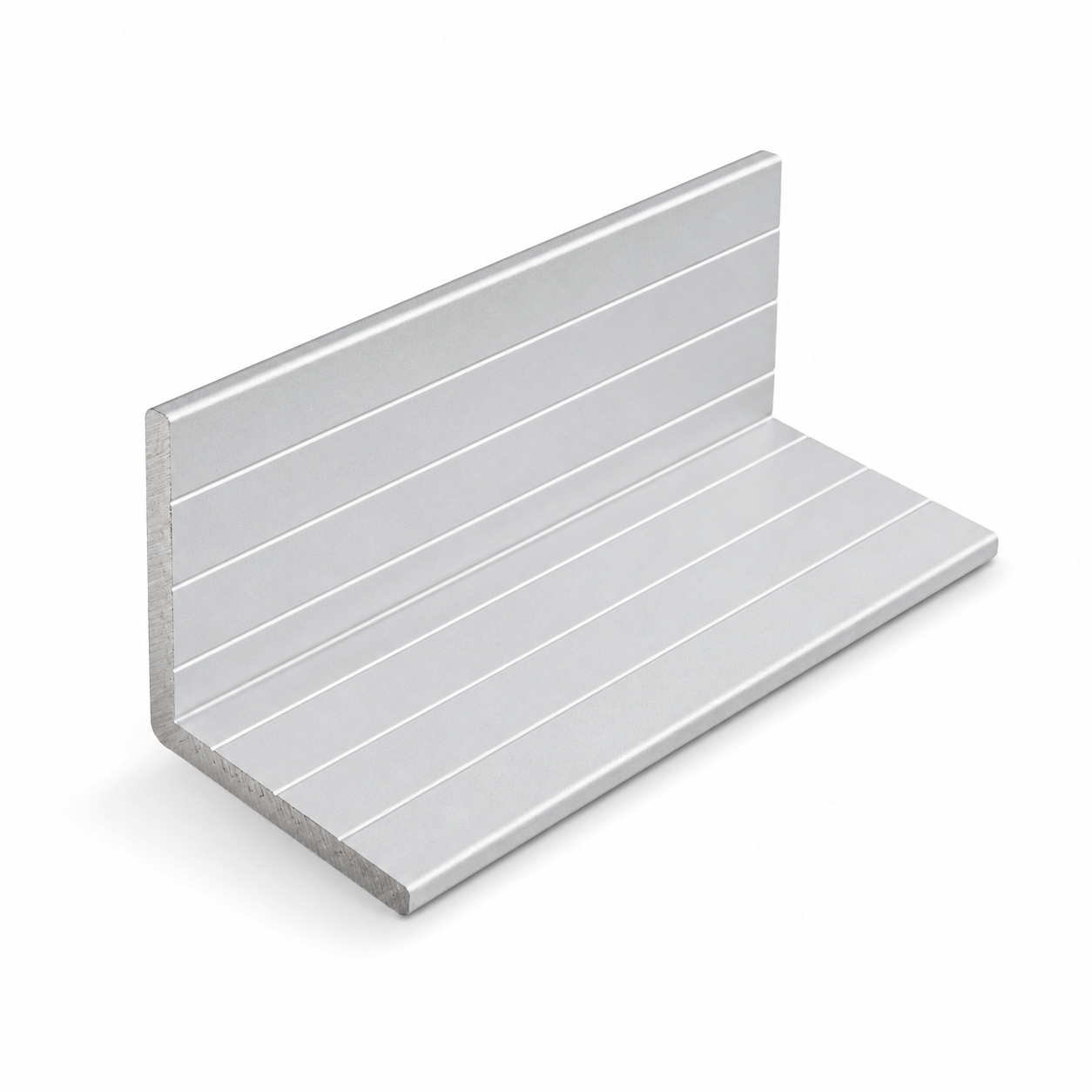

Profile M 40x40x4 E natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.30
Profile M 40x40x4 E natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.30
Profile M 40x40x4 E natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 2000 mmCompatible with item 7.0.002.7

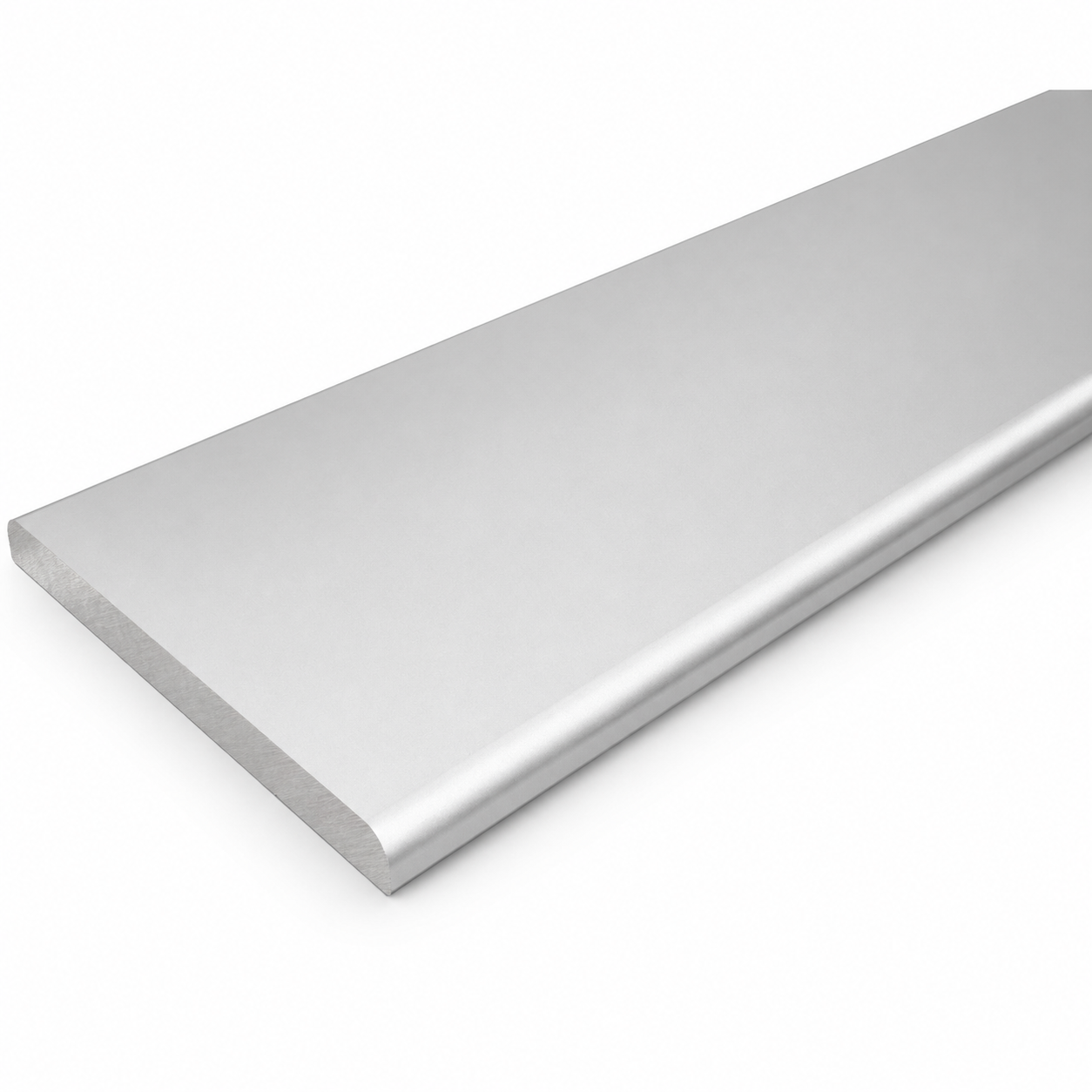

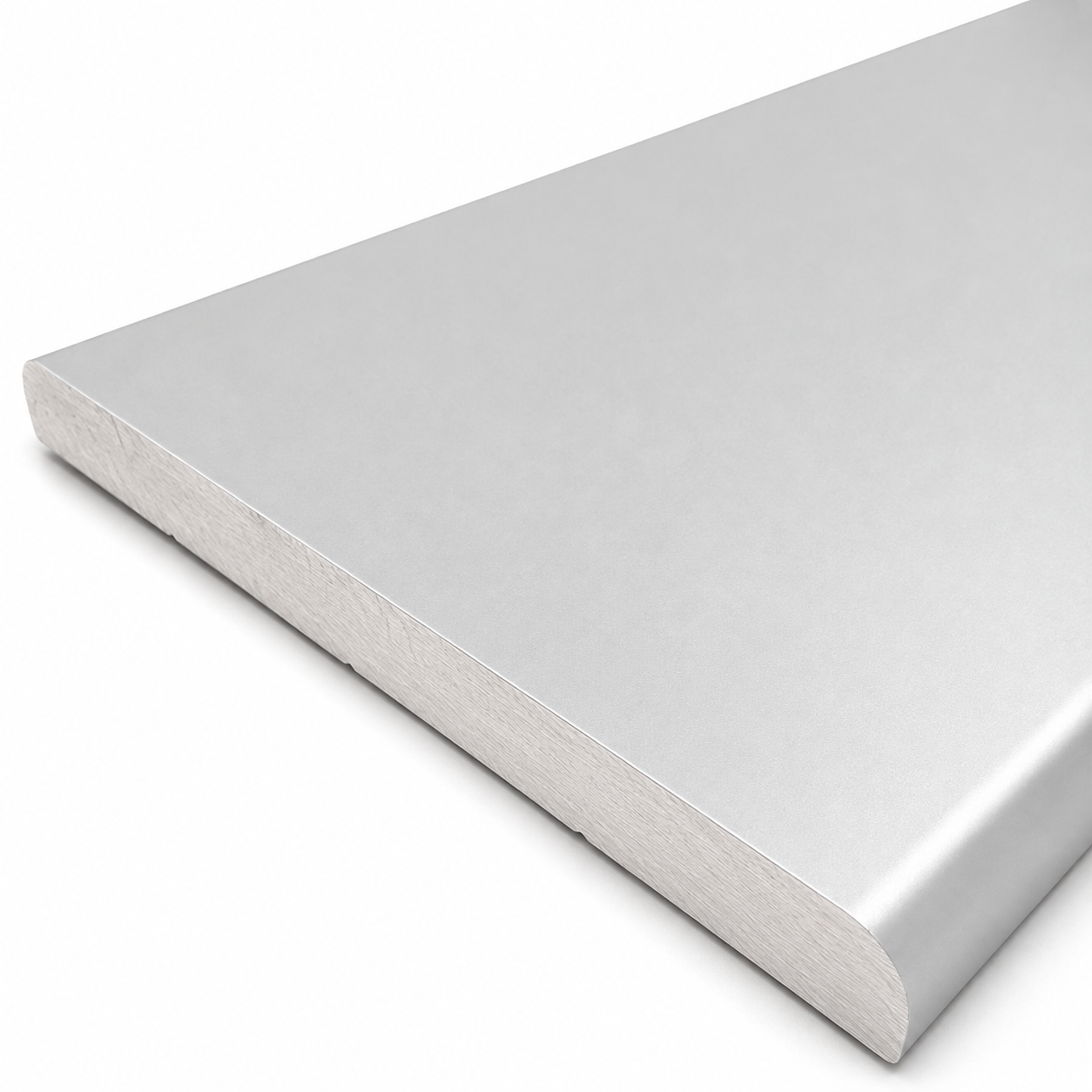

Profile M 80x8 E, natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc. Cut to size max. 2000 mmCompatible with item 7.0.001.22
Profile M 80x8 E, natural
Angle and flat profiles can be used in a variety of ways, e.g. for edging panel elements, as end or support strips, etc.Delivery length 200 mmCompatible with item 7.0.002.67
Technische Daten
Gilt für alle Profile dieser Baureihe. Abweichungen einzelner Varianten stehen auf der jeweiligen Produktseite.
Item kompatibel
| Slot pull-out force | F=1.750 N – F=2.500 N |
|---|---|
| Material | Al Mg Si 0.5 F25, artificially aged |
| Surface | natural anodised E6/EV1 |
| Tolerances | to EN 12020-2 |
| Supply form | Bars up to 6,000 mm, cut to the millimetre |
| Compatible with | Item |
Verfügbare Querschnitte
Alle Varianten dieser Baureihe auf einen Blick — Querschnitt, Nutenausführung, Bauart und Nutauszugskraft je Profil.
| Cross section | Slots | Type | Slot pull-out force | Product |
|---|---|---|---|---|
| 80x80 mm | 4 sides closed | economy | — | To the profile |
| 80x80 mm | Open grooves | economy | F=1.750 N | To the profile |
| 80x80 mm | Open grooves | light | F=2.500 N | To the profile |
| 40x40 mm | 4 sides closed | economy | — | To the profile |
| 40x25 mm | 4 sides closed | economy | — | To the profile |
| 40x20 mm | 4 sides closed | economy | — | To the profile |
| 40x4 mm | 4 sides closed | economy | — | To the profile |
| 80x8 mm | 4 sides closed | economy | — | To the profile |
Systemkompatibilität
Was zur Angle and Flat Profiles passt – und was nicht. Der Zusatz „kompatibel" bleibt bewusst: Item ist eine fremde Marke, wir führen kein Originalteil.
Was passt
- Profile 8 W80x80 takes the complete slot 8 accessory range – T-slot nuts M4 to M8, connectors in grid 40
- Bolting to slot 8 structures via T-slot nuts and through-holes
- Cut to length – these profiles are mostly used as add-on parts rather than as a load-bearing structure
- Load-bearing structure to match: aluminium profiles slot 8 in grid 40
- Matching infills and panels: panel elements
Was nicht passt
- The profiles M without a slot do not take T-slot nuts – here you drill and bolt through
- Connectors in grid 30 or 50 – the hole pattern does not match
Maßlich kompatibel zu Item Angle and Flat Profiles. Kein Originalteil von Item, keine Vertriebs- oder Lizenzbeziehung. Profile mit anderer Nutbreite sind nicht kompatibel.
Anwendungsbeispiele
Item-kompatible Profile im Einsatz
Edge protection and reinforcement
Angle profiles as an edge finish on panels, sheets and cladding.Attaching sheets and panels
Flat profiles M 40x4 and M 80x8 as a bolting plane between structure and infill.Sensor and device carriers
Small angles for sensors, terminal boxes and operating elements on existing machinery.Frames and stops
Profile 8 W80x80 as a load-bearing corner angle where a solid profile would be too heavy.Item Profile: häufig gestellte Fragen und Antworten
Hier finden Sie Antworten auf die häufigsten Fragen zu unseren Item kompatiblen Aluprofilen. Von der Maßgleichheit über die richtige Nutbreite bis zu Material und Zuschnitt.
Bleibt eine Frage offen, hilft Ihnen unser Team persönlich weiter. Sie erreichen uns Mo. bis Fr. von 9 bis 17 Uhr unter 09452 9334-0.
Can I use T-slot nuts in these profiles?
What are flat profiles M 40x4 and M 80x8 for?
