Cover Profile 8 40-2-90, natural
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 9 |
€35.40
|
| From 10 To 49 |
€33.00
|
| From 50 |
€29.00
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€35.40 *
Product number:
PI-1555 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001494
Length:
6000 mm
Weight:
2.562 kg
Description

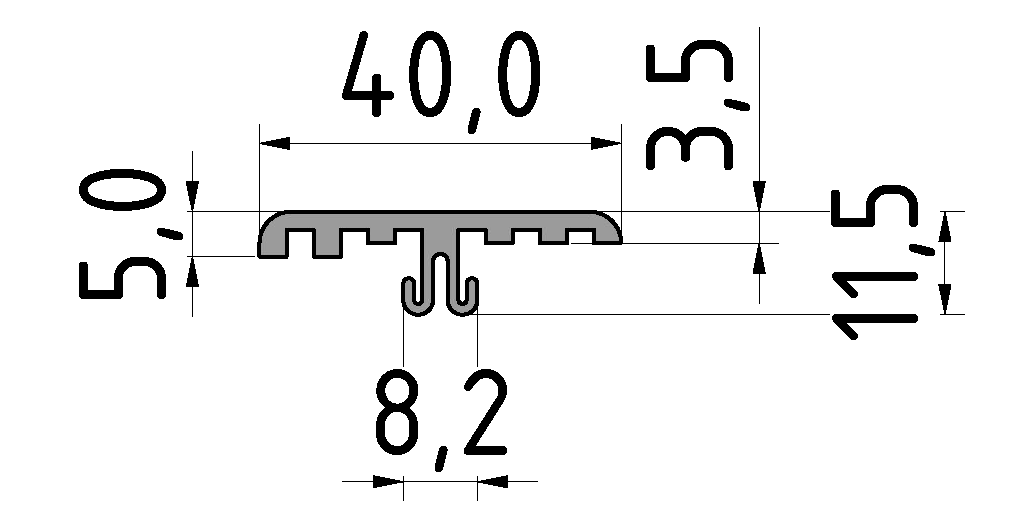

Product information "Cover Profile 8 40-2-90, natural"
The cover profile is used to fix panel elements with a thickness of 2 mm. With the clamping profile, a quick and uncomplicated exchange of the panel elements is possible. The panel elements are inserted from the front with the cover profile. These are pressed onto the profiles and clamp the panel elements in the profile grooves.
Details
lx 0,12 cm4
ly 1,63 cm4
wx 0,143 cm3
wy 0,783 cm3
Profilfläche 1,48 cm2
Gewicht 1,20 kg/m
ly 1,63 cm4
wx 0,143 cm3
wy 0,783 cm3
Profilfläche 1,48 cm2
Gewicht 1,20 kg/m
Step-Datei
Download| Colour: | Alu natural |
|---|---|
| Compatible with: | item |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Panel width : | 2 mm |
| Part type : | Fastening profile |
| Profile length: | 6000 mm bar |
| Series: | Series 8 |
Skip product gallery
![Cover Profile 8 40-2-90, natural]( "Cover Profile 8 40-2-90, natural")
€5.90
/ 1000 mm
*
PI-1555 SZ
Cover Profile 8 40-2-90, natural
The cover profile is used to fix panel elements with a thickness of 2 mm. With the clamping profile, a quick and uncomplicated exchange of the panel elements is possible. The panel elements are inserted from the front with the cover profile. These are pressed onto the profiles and clamp the panel elements in the profile grooves.Cut to size max. 6000 mm
