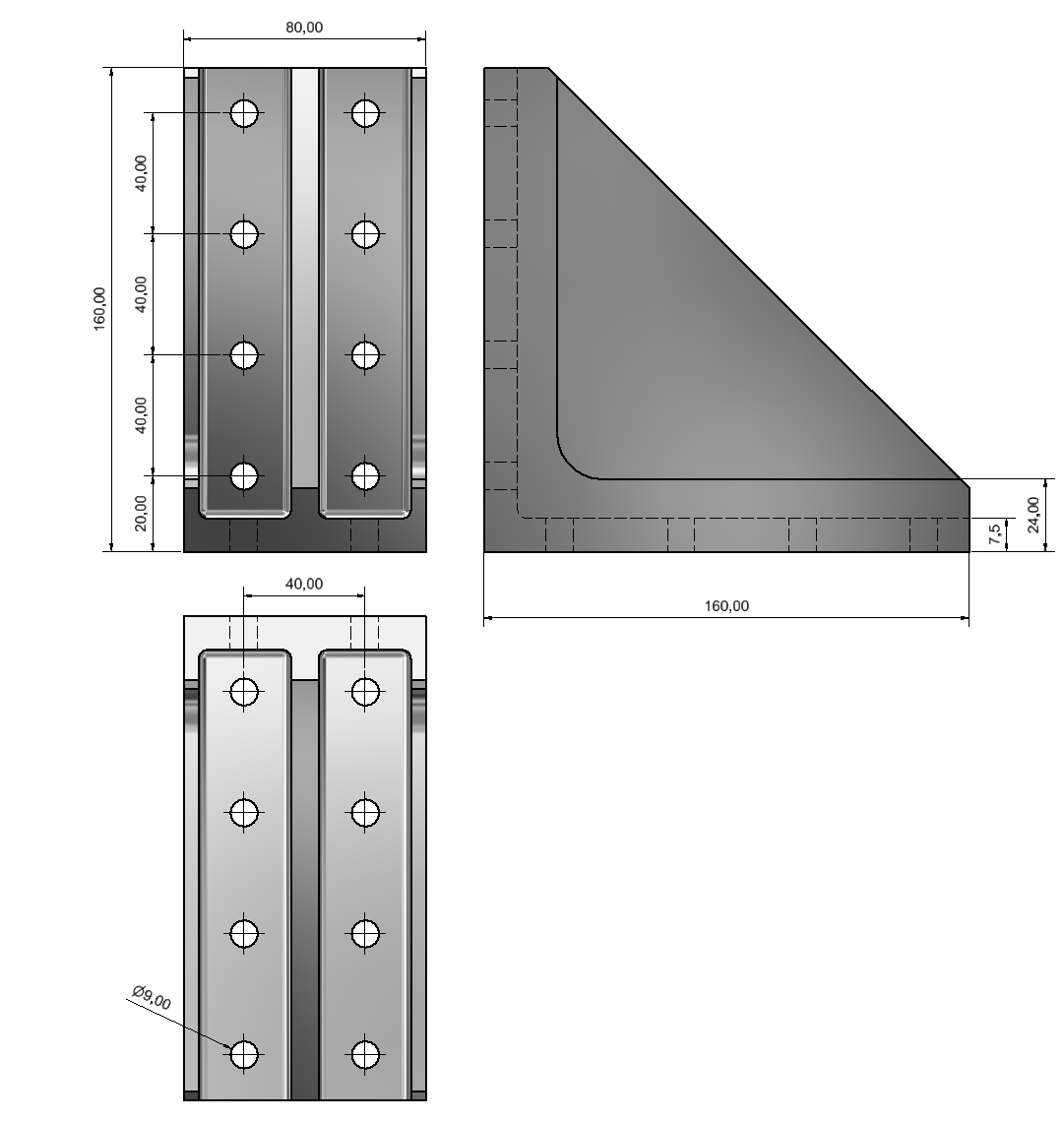

Angle Bracket 8 160x160 Al M8, white aluminium
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 9 |
€49.98*
|
| From 10 To 99 |
€48.21*
|
| From 100 |
€46.54*
|
| Accessories total price | €0.00 |
accessories
Accessories total price
€49.98 *
Product number:
ZI-1862
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1003520
Weight:
1.1 kg
Product information "Angle Bracket 8 160x160 Al M8, white aluminium"
Angles are a force-locking and machining-free connection. These are also used as additional reinforcement of connections and as a fastening element for attachments
Compatible with item 0.0.602.36
Step-Datei
Download| Angle bracket type: | Angle bracket Al |
|---|---|
| Colour: | white aluminium |
| Compatible with: | item |
| Force limitation: | F < 8.000 N |
| Part type : | Bracket |
| Series: | Series 8 |
| Size: | 160x160 mm |
| Torque limitation: | F x l < 800 Nm |
| Verbindungsart: | Rechtwinkelig |
Skip product gallery
From
€3.57*
ZI-1861
Fastening Set for Angle Bracket 8 160x160 M8
The fastening set is the screw connection set for Angle 8 160x160
