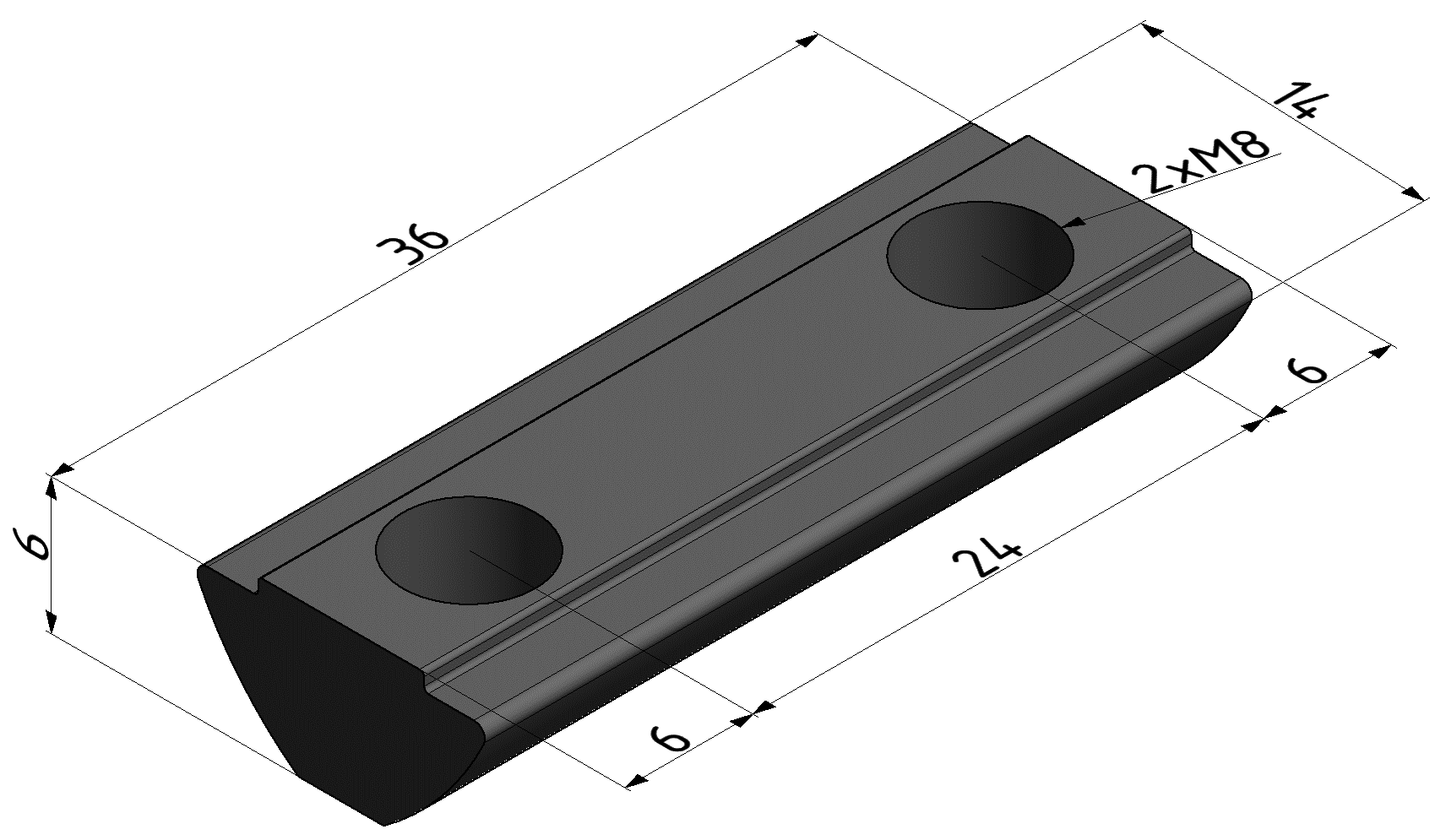

T-Slot Nut 8 St 2xM8-36, bright zinc-plated
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 9pcs |
€2.22
|
| From 10 To 99pcs |
€1.99
|
| From 100pcs |
€1.89
|
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€2.22 *
Product number:
NI-1100
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001288
Weight:
0.016 kg
Description
Product information "T-Slot Nut 8 St 2xM8-36, bright zinc-plated"
T-Slot Nuts for fastening and screwing all kinds of components. The slot nut can be positioned anywhere in the profile slot by means of a spring-loaded pressure piece.
Compatible with item 0. 0.610.80
Compatible with item 0.0.610.80
Step-Datei
| Compatible with: | item |
|---|---|
| Material: | Galvanized steel |
| Moment: | 14 Nm |
| Number of threads: | 2 Thread |
| Part type : | T-slot nut |
| Series: | Series 8 |
| Slot pull-out force: | F=7.000 N |
| T-Slot Nut Variant: | retractable V |
| Thread: | M8 |
Skip product gallery
![Universal-Fastener 8, bright zinc-plated]( "Universal-Fastener 8, bright zinc-plated")
Regular price:
From
€0.96
VI-1010

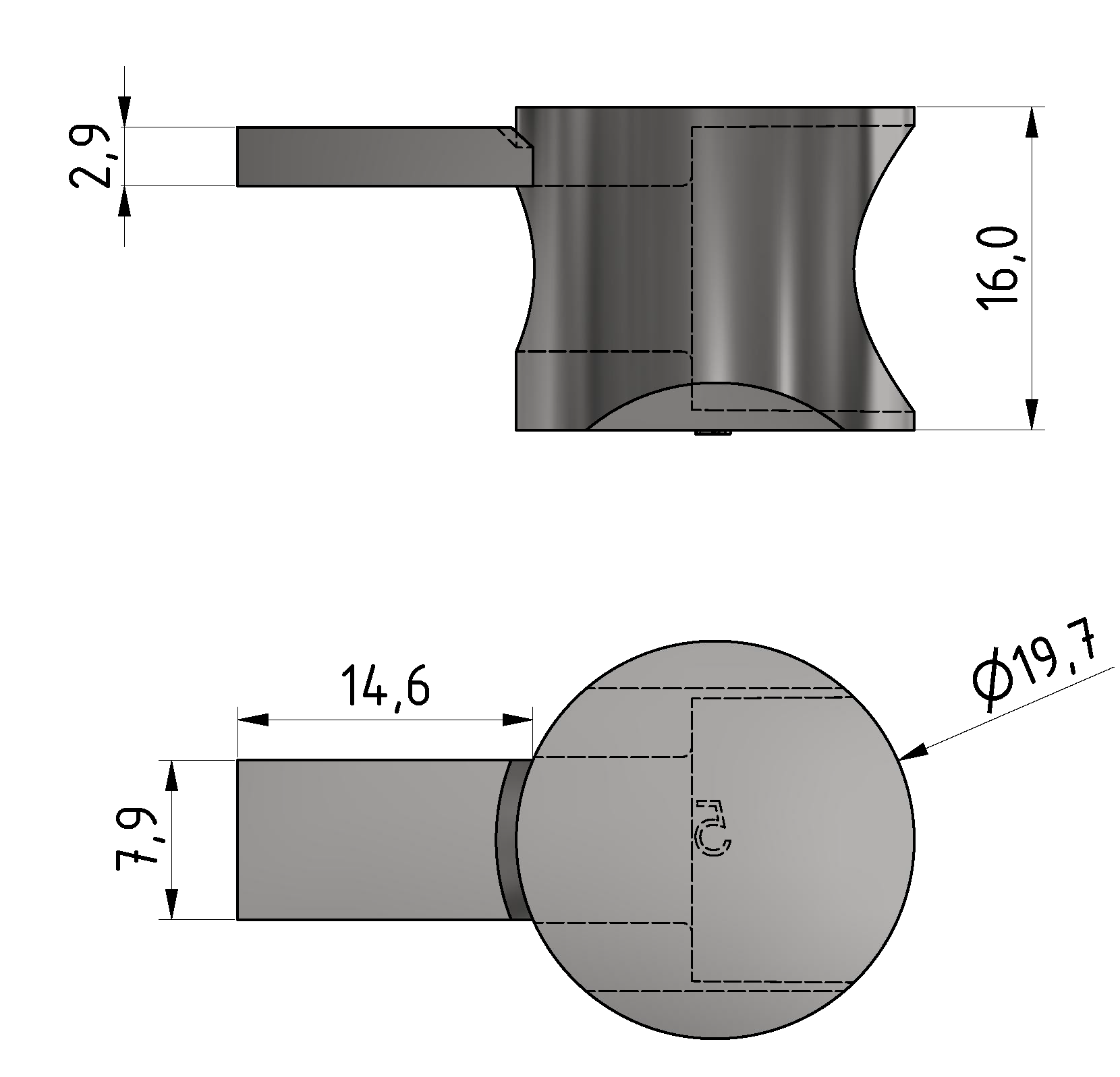

Universal-Fastener 8, bright zinc-plated
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be retrofitted into an existing construction. Machining only on one profile
S-1345
Button-Head Screw ISO 7380, bright zinc-plated
Standard high-strength bolts for the profile modular system to use appropriate in the groove
Variants from €0.08
Regular price:
From
€0.21
