T-Slot Nut 6 St 2xM6-58, bright zinc-plated

T-Slot Nut 6 St 2xM6-58, bright zinc-plated
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
T-Slot Nut 6 St 2xM6-58, bright zinc-plated
T-Slot Nut 6 St 2xM6-58, bright zinc-plated
T-Slot Nut 6 St 2xM6-58, bright zinc-plated
T-Slot Nut 6 St 2xM6-58, bright zinc-plated
T-Slot Nut 6 St 2xM6-58, bright zinc-plated
Quantity Unit price
To 99
€1.54*
From 100 To 499
€1.50*
From 500
€1.20*
Accessories total price €0.00

Prices excl. VAT plus shipping costs

accessories

Universal-Fastener 6, bright zinc-plated
€1.10 - €1.53*
Universal-Fastener 6, bright zinc-plated
€1.10 - €1.53*
Button-Head Screw ISO 7380, bright zinc-plated
Length: 22 mm | Thread: M6
€0.17*
Button-Head Screw ISO 7380, bright zinc-plated
Length: 22 mm | Thread: M6
€0.17*
T-Slot Nut 6 St 2xM5-58, bright zinc-plated
€1.20 - €1.54*
T-Slot Nut 6 St 2xM5-58, bright zinc-plated
€1.20 - €1.54*
T-Slot Nut 6 St 2xM5-28, bright zinc-plated
€1.10 - €1.39*
T-Slot Nut 6 St 2xM5-28, bright zinc-plated
€1.10 - €1.39*
T-Slot Nut 6 St 2xM6-28, bright zinc-plated
€1.10 - €1.39*
T-Slot Nut 6 St 2xM6-28, bright zinc-plated
€1.10 - €1.39*
Accessories total price

€1.54 *

PDF-Datasheet
Product number: NI-3125
Manufacturer: Maunsystem GmbH
Manufacturer number: 1001335
Weight: 0.016 kg

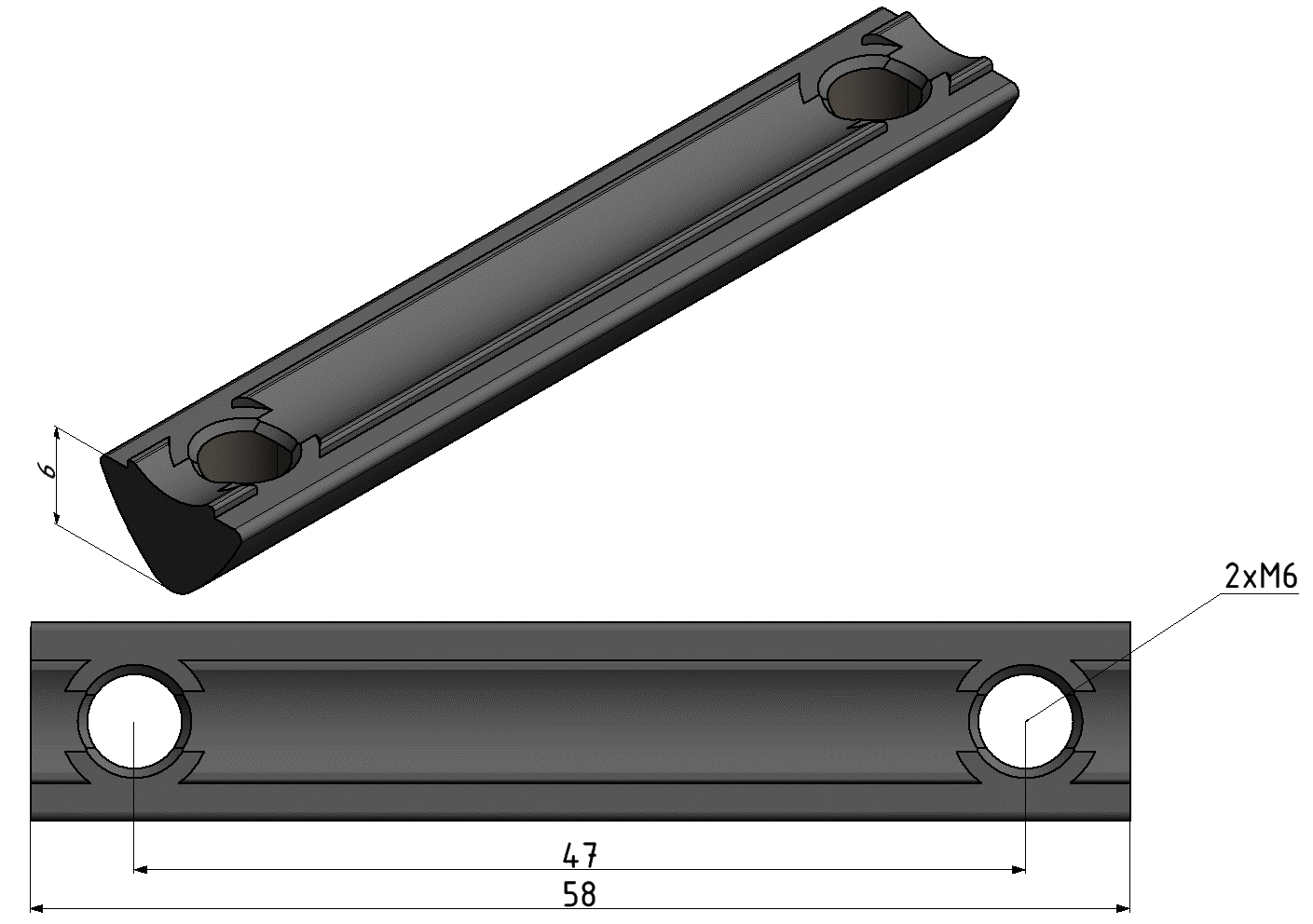

Product information "T-Slot Nut 6 St 2xM6-58, bright zinc-plated"

T-Slot Nuts for fastening and screwing all kinds of components. The slot nut can be positioned anywhere in the profile slot by means of a spring-loaded pressure piece.
Compatible with item 0. 0.610.72

Compatible with item 0.0.610.72

Step-Datei

Download
Compatible with: item
Kraft zulässig: Fzul. = 3.500 N
Material: Galvanized steel
Moment: 14 Nm
Number of threads: 2 Thread
Series: Series 6
T-Slot Nut Variant: swivel in smooth
Thread: M6
Skip product gallery
Universal-Fastener 6, bright zinc-plated Universal-Fastener 6, bright zinc-plated
VI-3010
Universal-Fastener 6, bright zinc-plated

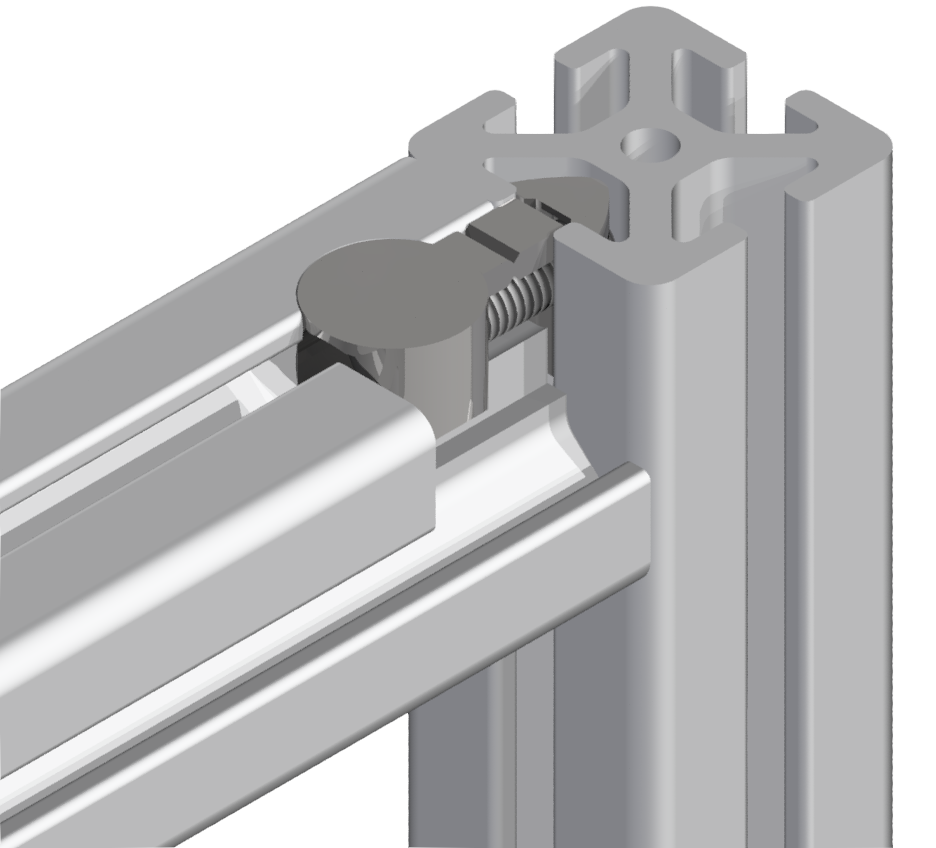

Universal and friction-locked connection of all profiles in a series Can be subsequently slid in the groove. Can be retrofitted into an existing construction. Machining only on one profile

From €1.10*
Button-Head Screw ISO 7380, bright zinc-plated
S-1275
Button-Head Screw ISO 7380, bright zinc-plated
Standard high-strength bolts for the profile modular system to use appropriate in the groove

Variants from €0.12*
€0.17*
Skip product gallery
T-Slot Nut 6 St 2xM5-58, bright zinc-plated T-Slot Nut 6 St 2xM5-58, bright zinc-plated
NI-3120
T-Slot Nut 6 St 2xM5-58, bright zinc-plated

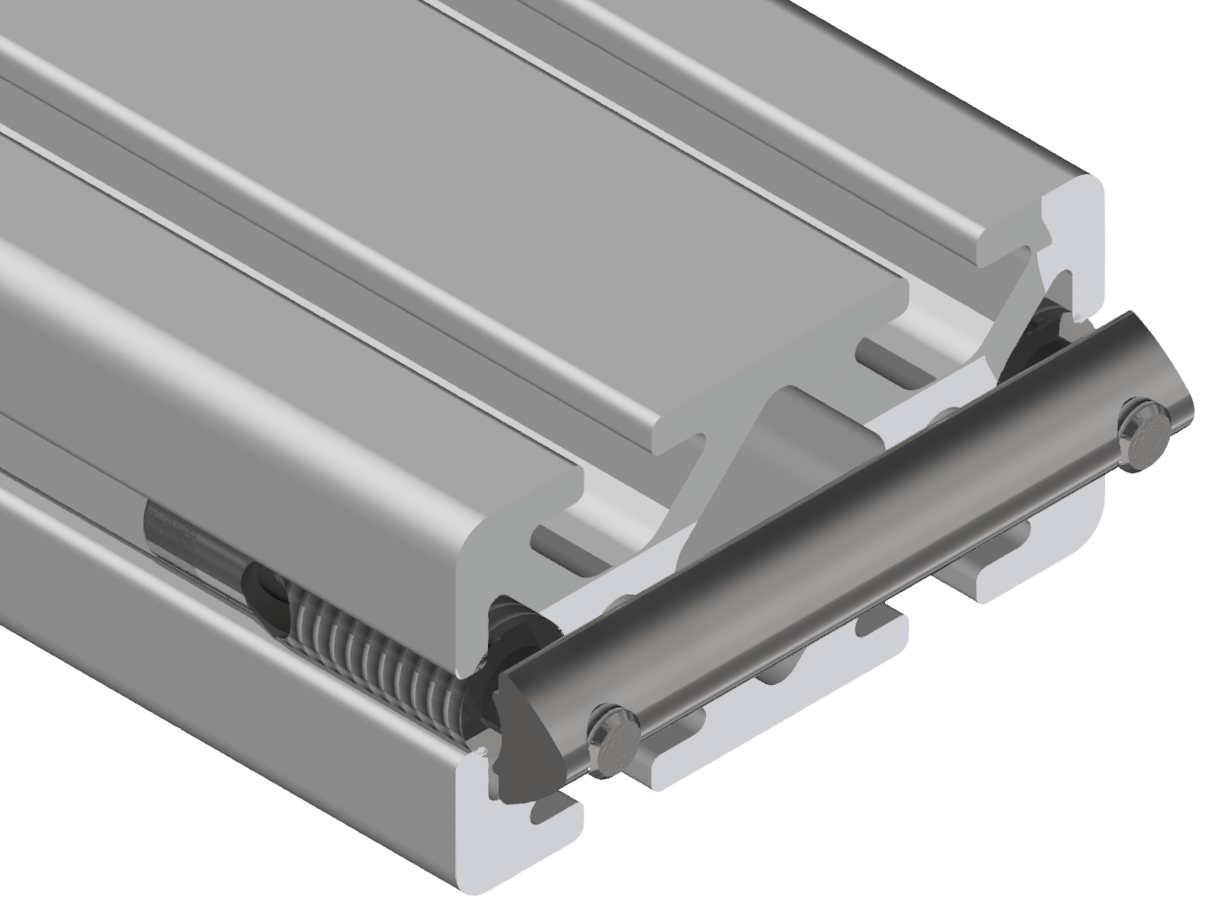

T-Slot Nuts for fastening and screwing all kinds of components. The slot nut can be positioned anywhere in the profile slot by means of a spring-loaded pressure piece. Compatible with item 0. 0.615.76

From €1.20*
T-Slot Nut 6 St 2xM5-28, bright zinc-plated T-Slot Nut 6 St 2xM5-28, bright zinc-plated
NI-3110
T-Slot Nut 6 St 2xM5-28, bright zinc-plated

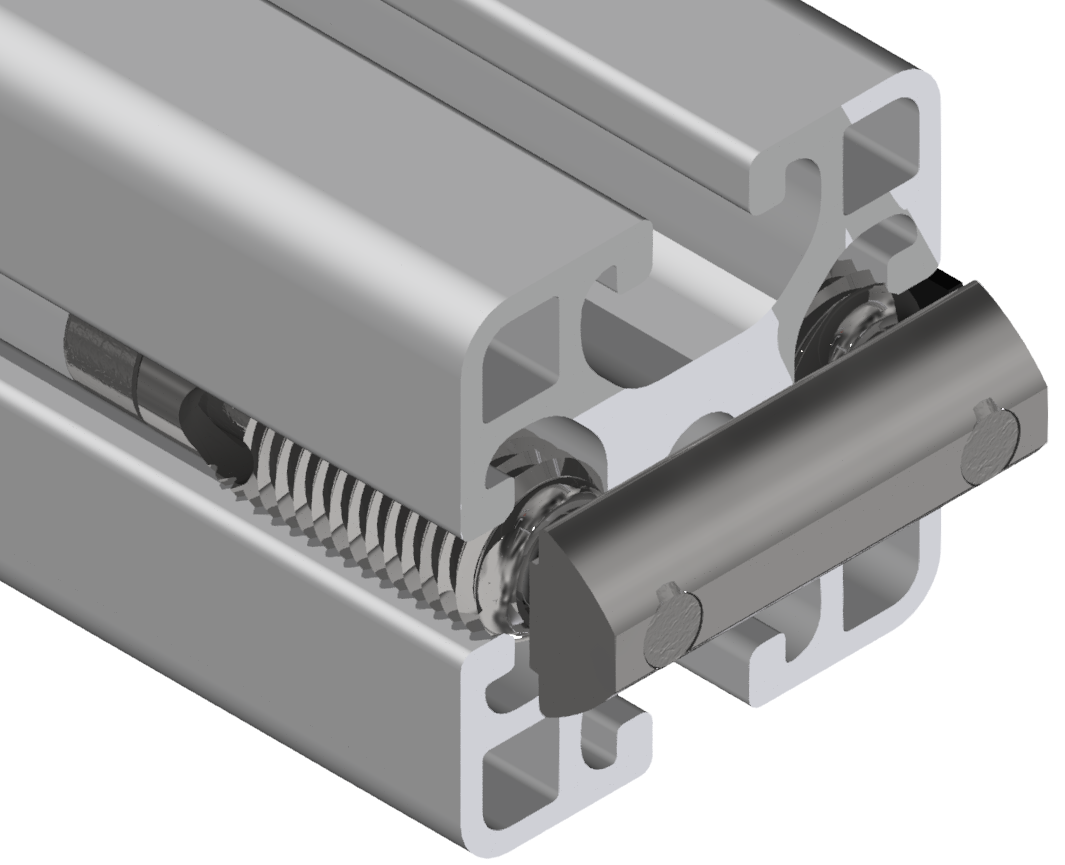

T-Slot Nuts for fastening and screwing all kinds of components. The slot nut can be positioned anywhere in the profile slot by means of a spring-loaded pressure piece. Compatible with item 0. 0.616.73
