Product information "Profile 90x90 natural-10"

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 990 500

Compatible with Bosch 3 842 990 500

Details

l    301,96 cm4
w    67,07 cm3
Profilfläche    38,93 cm2
Gewicht    10,51 kg/m



Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Cuts
Execution: heavy
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 45
Nutauszugskraft: F=12.000 N
Profile length: Cut length
Series: Series 45-10
Size: 90x90 mm
Tolerances: EN 12020-2
Breite Profil: 90 mm
Höhe Profil: 90 mm

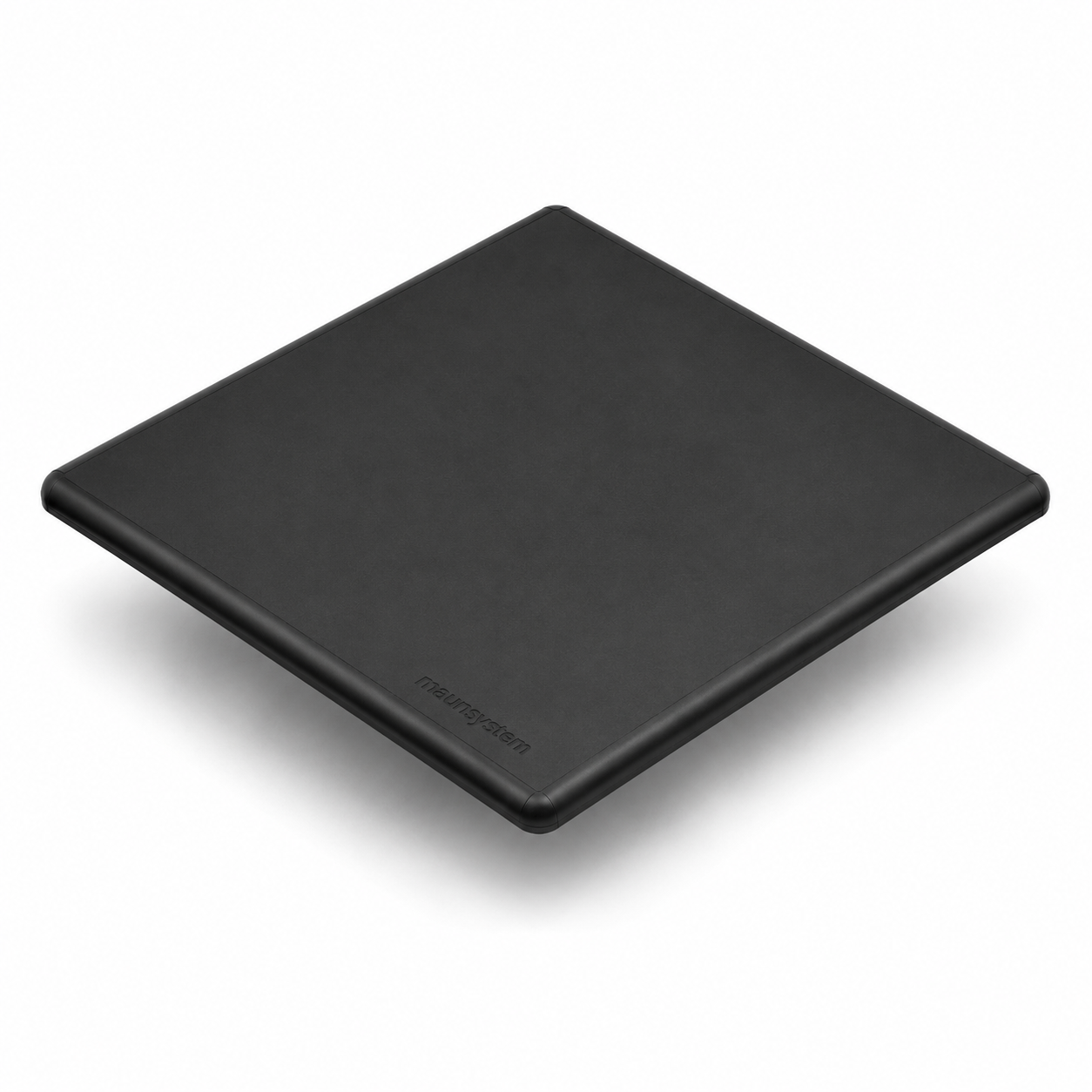

Cap 90x90 heavy, black-10 Cap 90x90 heavy, black-10
AB-3075
Cap 90x90 heavy, black-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€1.60*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-N
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-W
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

Variants from €3.10*
€4.71*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-G
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*
Bolt Connector Set 90, bright zinc-plated-10 Bolt Connector Set 90, bright zinc-plated-10
VB-3030
Bolt Connector Set 90, bright zinc-plated-10
The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.95*
Qick Connector 0°, bright zink-plated-10 Qick Connector 0°, bright zink-plated-10
VB-3050
Qick Connector 0°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
Qick Connector 90°, bright zink-plated-10 Qick Connector 90°, bright zink-plated-10
VB-3045
Qick Connector 90°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
T- Matic Connector Set, bright zinc-plated-10 T- Matic Connector Set, bright zinc-plated-10
VB-3037
T- Matic Connector Set, bright zinc-plated-10
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*
