Profile 90x180 natural-10
Profile length:
Cut length
Maunsystem GmbH
Loading...
€194.21*
| Accessories total price | €0.00 |
accessories
Accessories total price
€194.21 *
Product number:
PB-1285 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1006843
Weight:
17.2 kg
Product information "Profile 90x180 natural-10"
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 990 416
Compatible with Bosch 3 842 990 416
Details
lx 2138,3 cm4
ly 544,3 cm4
wx 237,6 cm3
wy 121 cm3
Profilfläche 63,6 cm2
Gewicht 17,2 kg/m
ly 544,3 cm4
wx 237,6 cm3
wy 121 cm3
Profilfläche 63,6 cm2
Gewicht 17,2 kg/m
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 45 |
| Nutauszugskraft: | F=12.000 N |
| Profile length: | Cut length |
| Series: | Series 45-10 |
| Size: | 90x180 mm |
| Tolerances: | EN 12020-2 |
| Breite Profil: | 180 mm |
| Höhe Profil: | 90 mm |
Skip product gallery
€3.17*
AB-3082

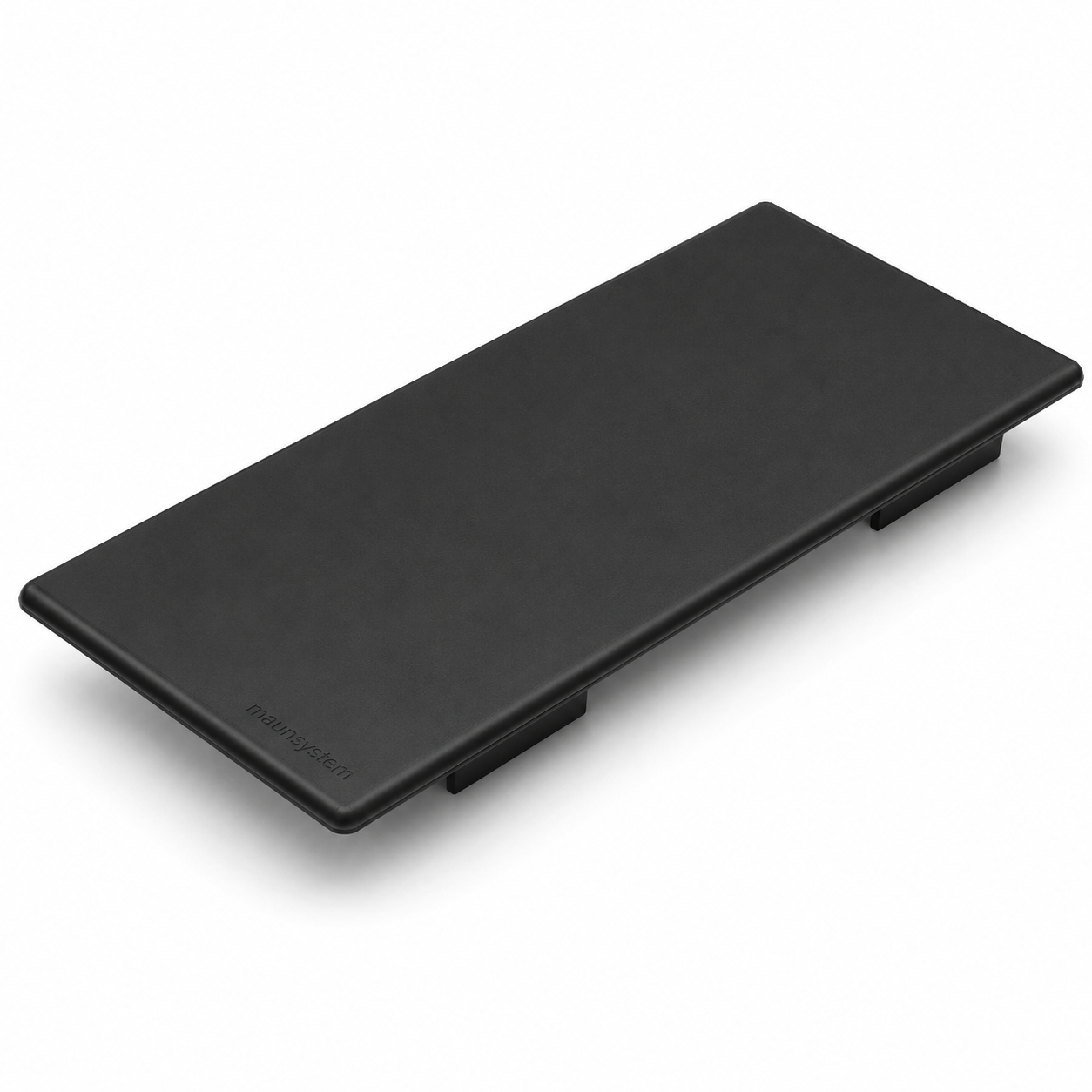

Cap 90x180 heavy, black-10
