Profile 80x80 4N 90° light natural-10

Profile length: Cut length
Profile 80x80 4N 90° light natural-10
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
Profile 80x80 4N 90° light natural-10
Profile 80x80 4N 90° light natural-10
Profile 80x80 4N 90° light natural-10
Profile 80x80 4N 90° light natural-10
Profile 80x80 4N 90° light natural-10

€162.10*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Accessories total price

€162.10 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PB-1180 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006825

Product information "Profile 80x80 4N 90° light natural-10"

The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 993 658

Compatible with Bosch 3 842 993 658

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Cuts
Execution: light
Groove shape: 2 sides closed 90°
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 40
Nutauszugskraft: F=7.000 N
Profile length: Cut length
Series: Series 40-10
Size: 80x80 mm
Tolerances: EN 12020-2
Breite Profil: 80 mm
Höhe Profil: 80 mm
Skip product gallery
Conduit Cap 80x80, black Conduit Cap 80x80, black
AI-1095
Conduit Cap 80x80, black
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Kabelkanalquerschnitte. Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen oder durch Verschrauben.

From €2.50*

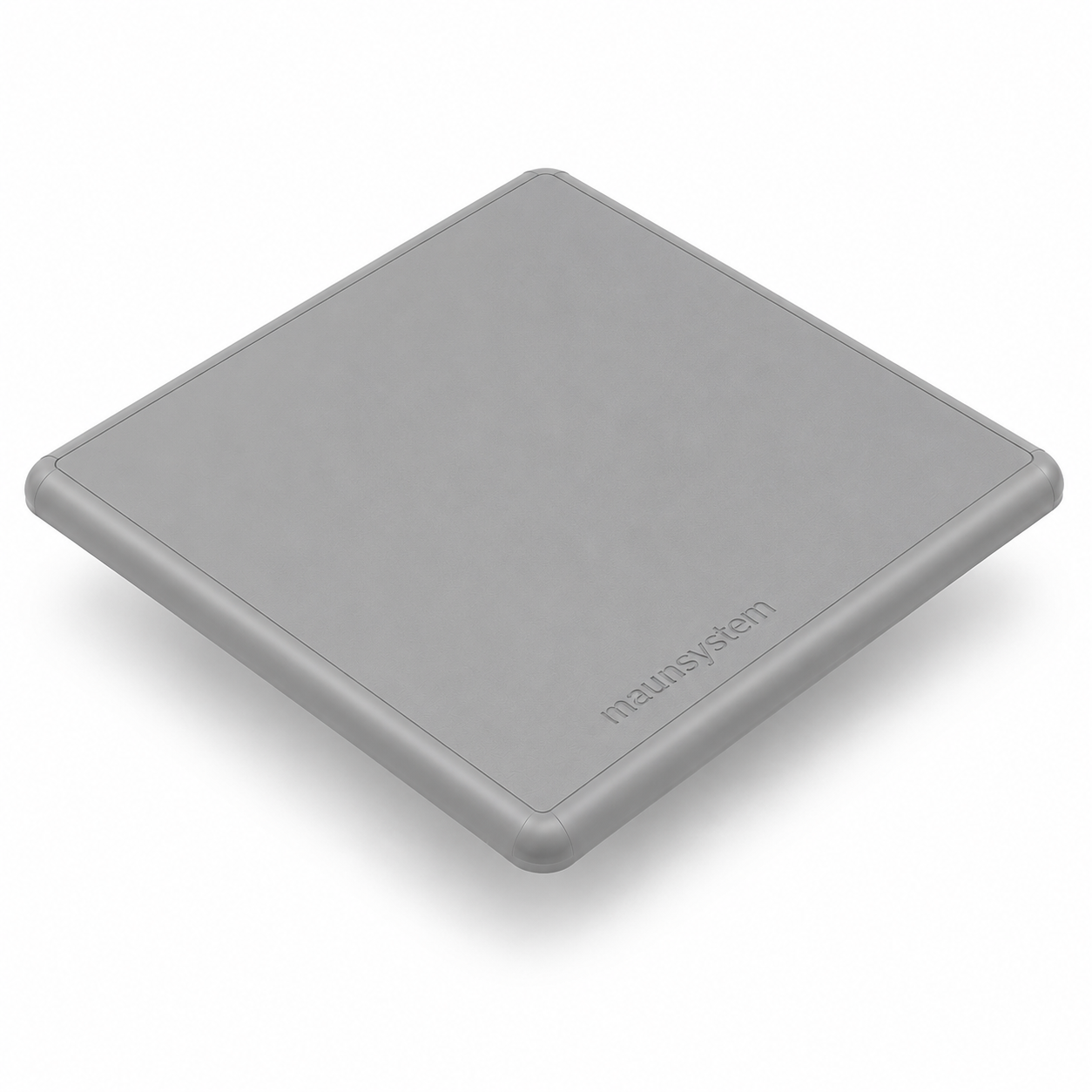

Cap 80x80-10 Cap 80x80-10
AB-3015-G
Cap 80x80-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.90*
Skip product gallery
Bolt Connector Set 80, bright zinc-plated-10 Bolt Connector Set 80, bright zinc-plated-10
VB-3025
Bolt Connector Set 80, bright zinc-plated-10
The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.89*
Inner Connector Set R, bright zinc-plated-10 Inner Connector Set R, bright zinc-plated-10
VB-3095
Inner Connector Set R, bright zinc-plated-10
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.

€2.20*
T- Matic Connector Set, bright zinc-plated-10 T- Matic Connector Set, bright zinc-plated-10
VB-3037
T- Matic Connector Set, bright zinc-plated-10
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*
Angle Bracket Set 40 ST, black-10 Angle Bracket Set 40 ST, black-10
ZB-3127
Angle Bracket Set 40 ST, black-10
Mounting bracket made of steel for stable and secure connection of profiles

€3.50*
