Profile 8 80x40, natural
Profile length:
Cut length
Maunsystem GmbH
Loading...
€51.20*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€51.20 *
Product number:
PI-1196 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1009461
Weight:
4.5 kg
Description

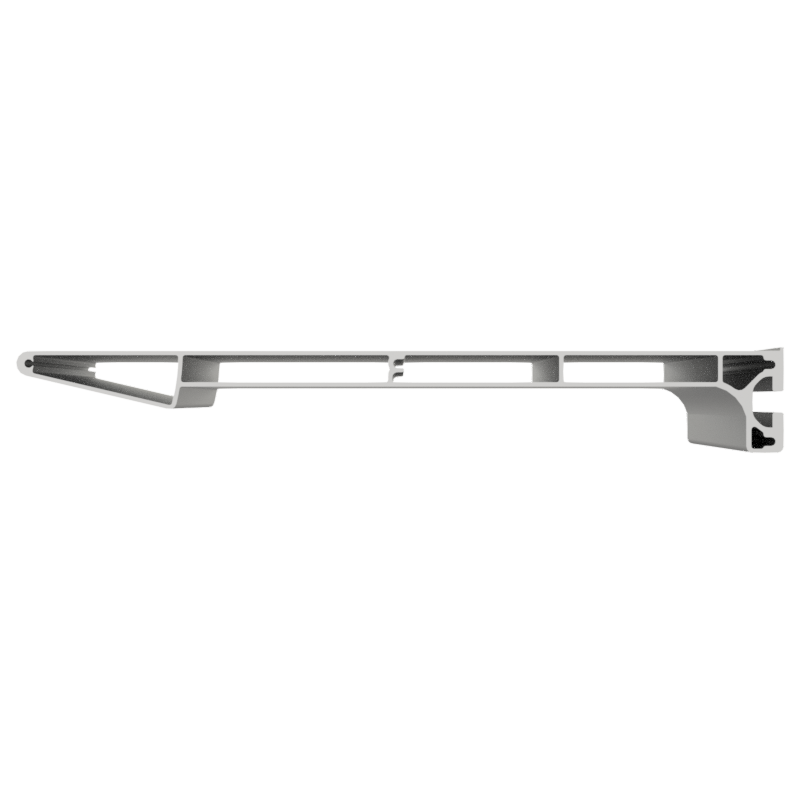

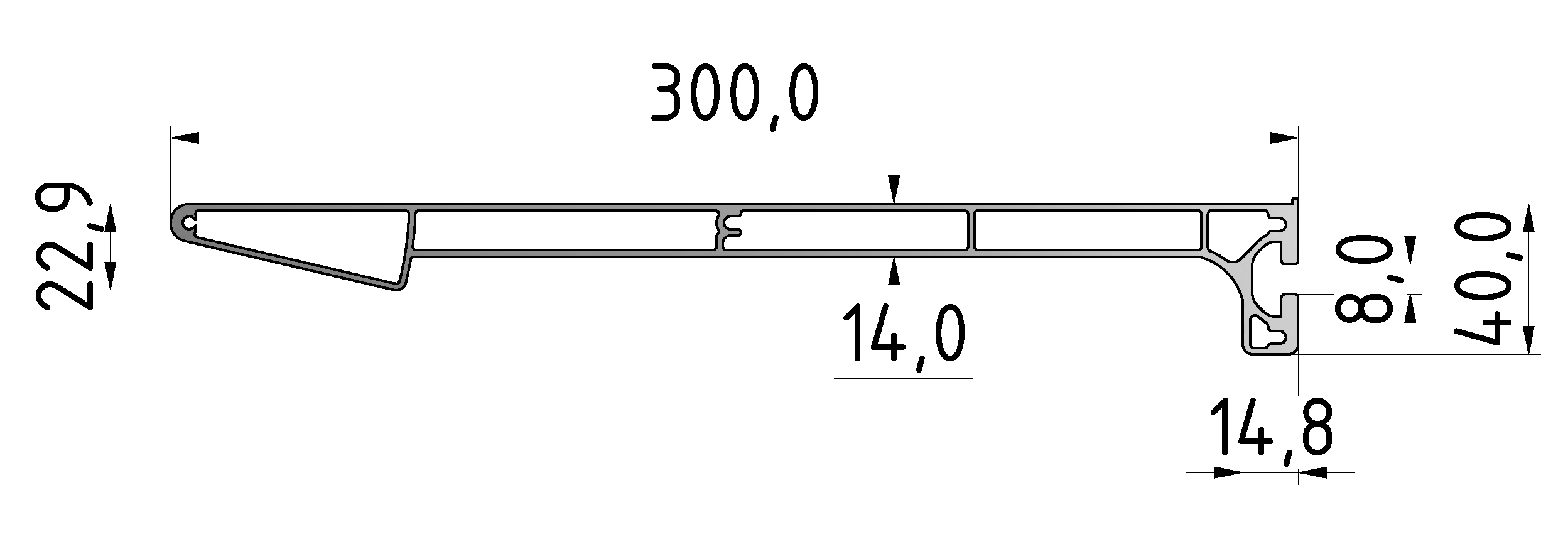

Product information "Profile 8 80x40, natural"
Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 0.0.608.49
Details
- Finish natural
- Â ESD ESD-safe = No
- Â Area A = 9,61 cm2
- Â Area moment of inertia Torsion It = 44,2 cm4
- Â Area moment of inertia um x-axis Ix = 77,15 cm4
- Â Area moment of inertia um y-axis Iy = 20,58 cm4
- Â Weight spec. Length [kg/m] m = 2,59 kg/m
- Â Delivery unit Cut to length max. 6000 mm
- Â Material Al, anodised
- Â Section modulus um x-axis Wx = 19,29 cm3
- Â Section modulus um y-axis Wy = 10,29 cm3
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Nutauszugskraft: | F=2.500 N |
| Part type : | Shelves |
| Profile length: | Cut length |
| Series: | Series 8, Workstation systems |
| Tolerances: | EN 12020-2 |
