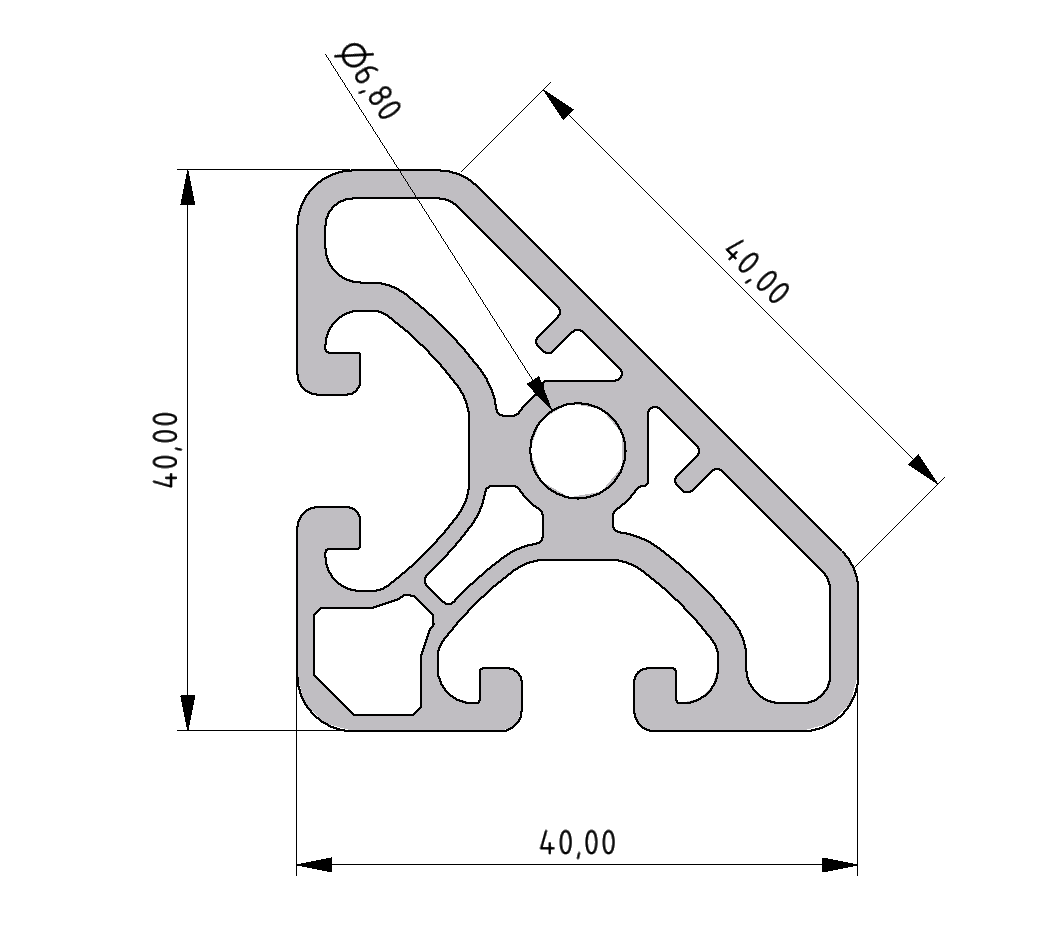

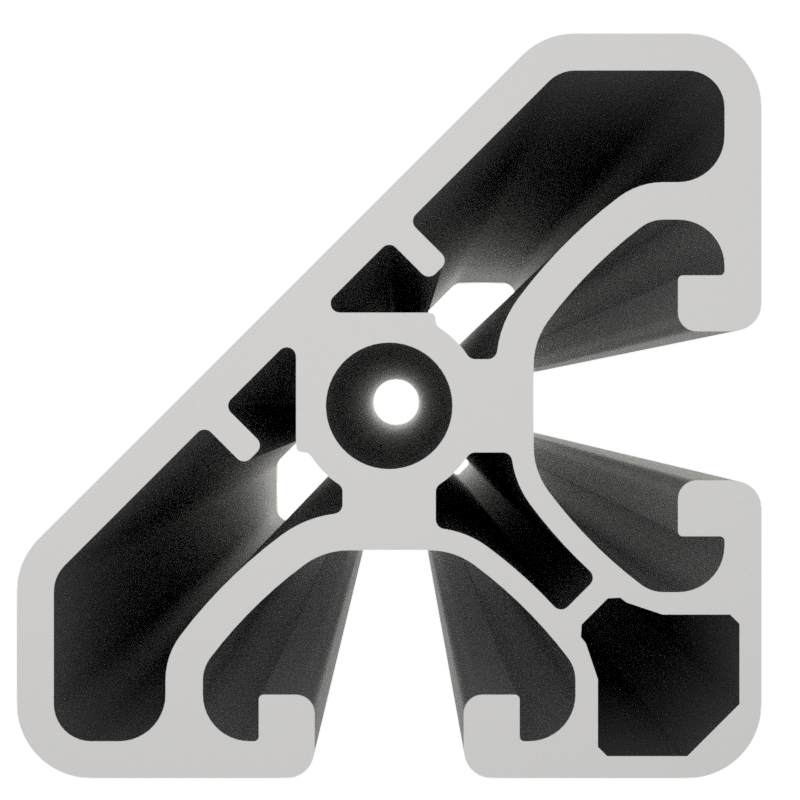

Profile 8 40x40-45° light, natural
Profile length:
Cut length
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 6pcs |
€110.93
|
| From 7pcs |
€104.18
|
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€20.46 *
Product number:
PI-1147 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1017621
Weight:
1.67 kg
Description
Product information "Profile 8 40x40-45° light, natural"
The profiles 8 light with closed grooves are suitable for assemblies of all kinds. With the closed groove side, visually appealing and low-maintenance constructions can be realised. The grooves and core holes of Profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 7.0.000.12
Details
- ESD ESD-safe = Ja
- Area A = 4,35 cm2
- Area moment of inertia Torsion It = 2 cm4
- Area moment of inertia um x-axis Ix = 5,7 cm4
- Area moment of inertia um y-axis Iy = 5,7 cm4
- Weight spec. Length [kg/m] m = 1,17 kg/m
- Delivery unit Cut to length max. 6000 mm
- Material Al, anodised
- permissible Slot pull-out force F = 1750 N
- Section modulus um x-axis Wx = 2,51 cm3
- Section modulus um y-axis Wy = 2,51 cm3
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Triangular |
| Delivery unit: | Cuts |
| Execution: | economy |
| Groove shape: | 1 side closed, Angle bracket profile |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Profile height: | 40 mm |
| Profile length: | Cut length |
| Profile width: | 40 mm |
| Series: | Series 8 |
| Size: | 40x40 mm |
| Slot pull-out force: | F=1.750 N |
| Tolerances: | EN 12020-2 |
