Profile 8 40x16, natural

Profile length: Cut length
Profile 8 40x16, natural
Profile 8 40x16, natural
Profile 8 40x16, natural
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
Profile 8 40x16, natural
Profile 8 40x16, natural
Profile 8 40x16, natural
Profile 8 40x16, natural
Profile 8 40x16, natural
Profile 8 40x16, natural
Profile 8 40x16, natural

€14.67*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Cap 8 40x16, black
Colour: black
€0.70 - €0.94*
Cap 8 40x16, black
Colour: black
€0.70 - €0.94*

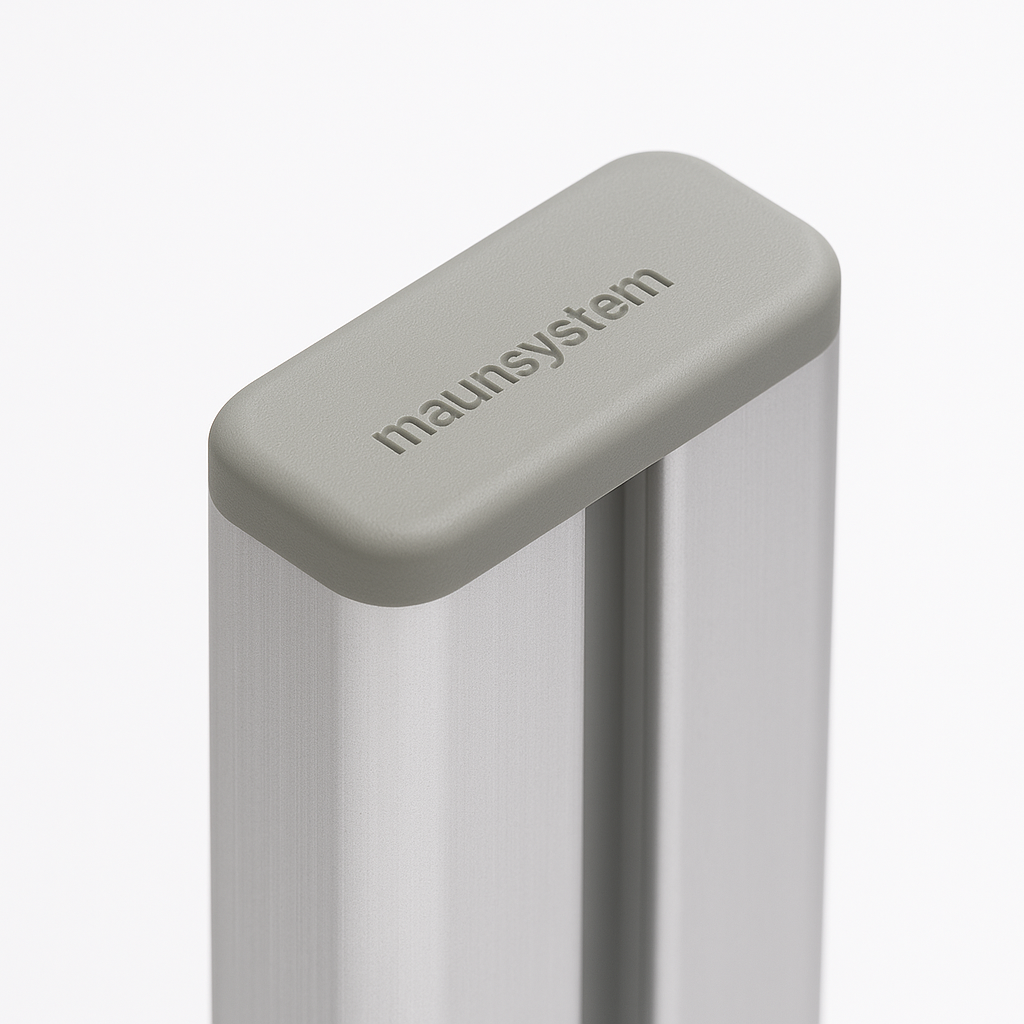

Cap 8 40x16, grey
Colour: grey
€0.70 - €0.94*
Cap 8 40x16, grey
Colour: grey
€0.70 - €0.94*
Angle Bracket Set 8 40x40, black
€2.85 - €3.95*
Angle Bracket Set 8 40x40, black
€2.85 - €3.95*
Angle Bracket Set 8 40x40, black
€3.95 - €4.95*
Angle Bracket Set 8 40x40, black
€3.95 - €4.95*
Angle Bracket Set 8 80x80, black
€4.95 - €6.11*
Angle Bracket Set 8 80x80, black
€4.95 - €6.11*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Automatic-Fastening Set 8, bright zinc-plated
€1.60 - €2.86*
Automatic-Fastening Set 8, bright zinc-plated
€1.60 - €2.86*
Accessories total price

€14.67 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PI-1010 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1007024
Weight: 1.18 kg

Product information "Profile 8 40x16, natural"

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm

Compatible with item 0.0.026.84

Details

lx    1,06 cm4
ly    6,75 cm4
wx    1,25 cm3
wy    3,37 cm3
Profilfläche    4,15 cm2
Gewicht    1,12 kg/m


Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: item
Contour: Rectangular
Delivery unit: Cuts
Execution: heavy
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Nutauszugskraft: F=5.000 N
Profile length: Cut length
Series: Series 8
Size: 40x16 mm
Tolerances: EN 12020-2
Breite Profil: 40 mm
Höhe Profil: 16 mm
