Profile 8 160x80, natural

Profile length: Cut length
Profile 8 160x80, natural
Profile 8 160x80, natural
3D
Click and move
Profile 8 160x80, natural
Profile 8 160x80, natural
Profile 8 160x80, natural
Profile 8 160x80, natural
Profile 8 160x80, natural
Profile 8 160x80, natural
Profile 8 160x80, natural
Profile 8 160x80, natural

€230.25*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Angle Bracket Set 8 40x40, black
€2.85 - €3.95*
Angle Bracket Set 8 40x40, black
€2.85 - €3.95*
Angle Bracket Set 8 40x40, black
€3.95 - €4.95*
Angle Bracket Set 8 40x40, black
€3.95 - €4.95*
Angle Bracket Set 8 80x80, black
€4.95 - €6.11*
Angle Bracket Set 8 80x80, black
€4.95 - €6.11*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set 8 80x80, black
€7.12 - €7.98*
Angle Bracket Set V 8 40 Zn
€4.89 - €5.12*
Angle Bracket Set V 8 40 Zn
€4.89 - €5.12*
Automatic-Fastening Set 8, bright zinc-plated
€1.60 - €2.86*
Automatic-Fastening Set 8, bright zinc-plated
€1.60 - €2.86*
Standard-Fastening Set 8, bright zinc-plated
€1.05 - €1.30*
Standard-Fastening Set 8, bright zinc-plated
€1.05 - €1.30*
Standard-Fastening Set 8, bright zinc-plated
€0.35 - €0.68*
Standard-Fastening Set 8, bright zinc-plated
€0.35 - €0.68*
Universal-Fastening Set 8, bright zinc-plated
€1.30 - €1.47*
Universal-Fastening Set 8, bright zinc-plated
€1.30 - €1.47*
Accessories total price

€230.25 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PI 1085 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1021822
Weight: 15.08 kg

Product information "Profile 8 160x80, natural"

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm

Compatible with item 0.0.483.34

Details

lx    427,59 cm4
ly    2181,99 cm4
wx    106,9 cm3
wy    218,2 cm3
Profilfläche    55,74 cm2
Gewicht    15,05 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: item
Contour: Rectangular
Delivery unit: Cuts
Execution: heavy
Groove shape: Open grooves
Material: Al Mg Si 0.5 F25, artificially aged
Nutauszugskraft: F=5.000 N
Profile length: Cut length
Series: Series 8

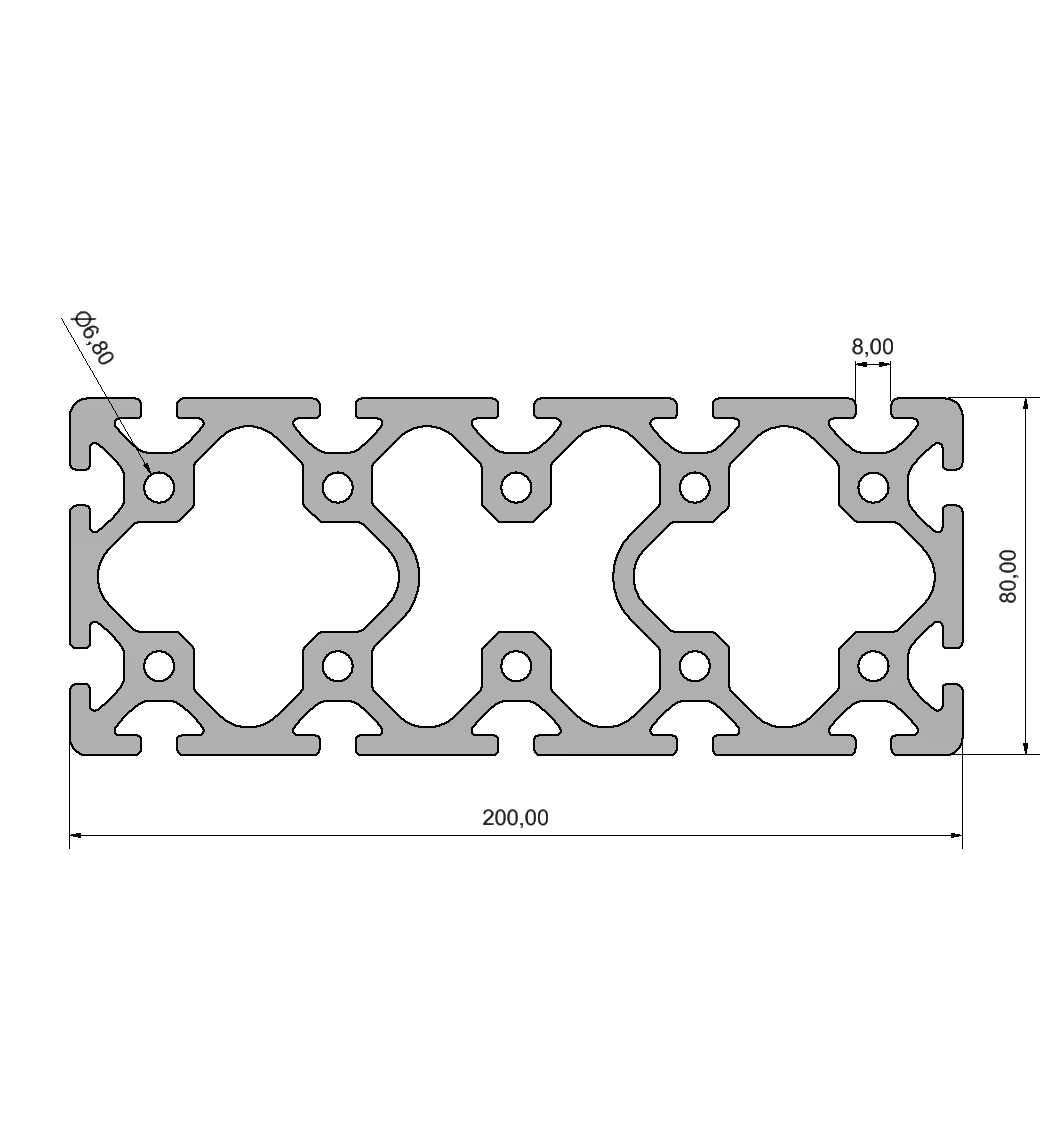

Size: 200x80
Tolerances: EN 12020-2
Breite Profil: 200 mm
Höhe Profil: 80 mm
