Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PI-1025 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006653
Weight: 8.39 kg

Product information "Profile 8 160x28, natural"

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm

Compatible with item 0.0.026.85

Details

lx    695,74 cm4
ly    20,25 cm4
wx    86,97 cm3
wy    14,16 cm3
Profilfläche    30,36 cm2
Gewicht    8,23 kg/m



Step-Datei

Download
Colour: natural
Compatible with: item
Contour: Rectangular
Delivery unit: Cuts
Execution: heavy
Groove shape: Open grooves
Nutauszugskraft: F=5.000 N
Profile length: Cut length
Series: Series 8
Size: 160x28 mm
Breite Profil: 160 mm
Höhe Profil: 28 mm
Skip product gallery

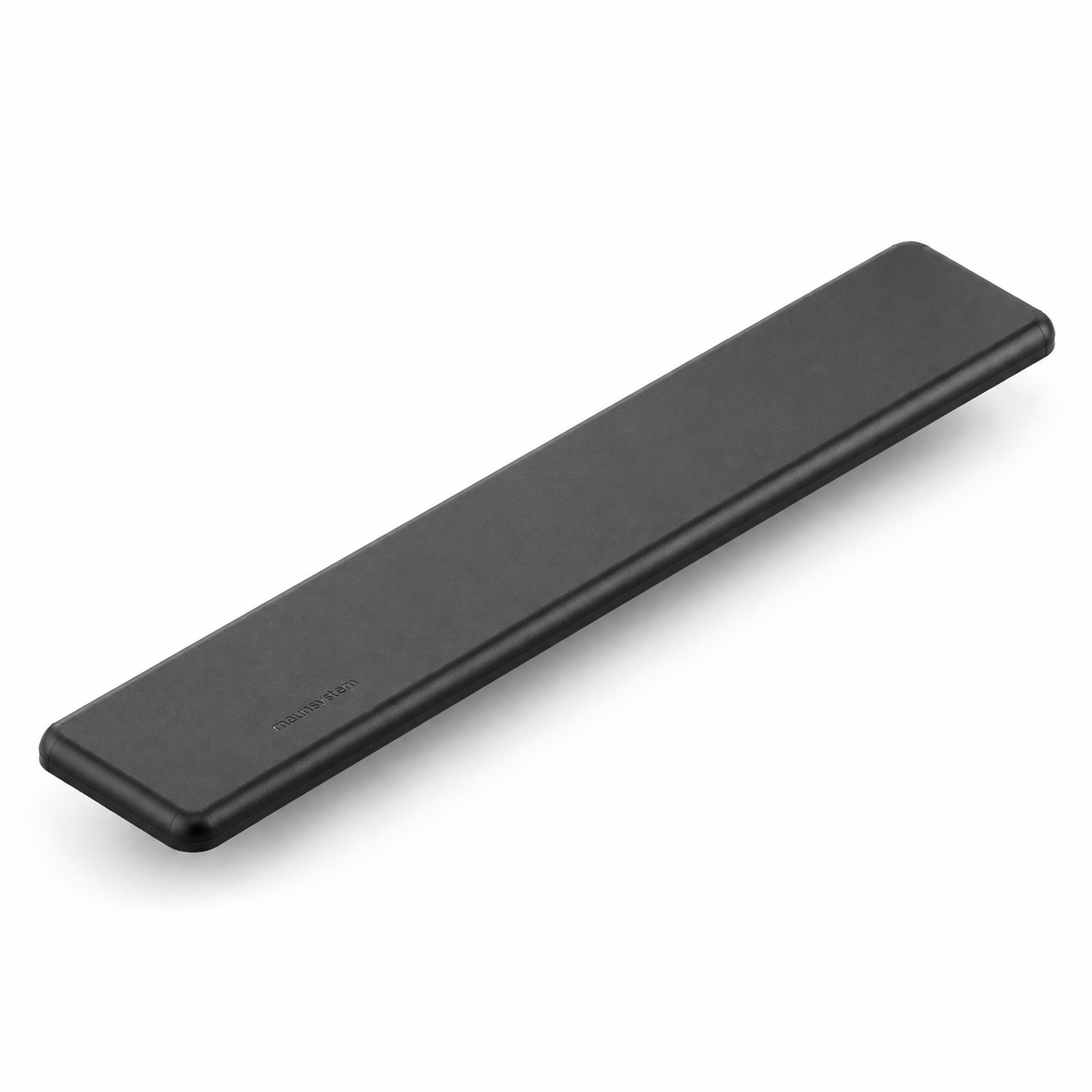

Cap 8 160x28, black Cap 8 160x28, black
AI-1081
Cap 8 160x28, black
0.0.026.80

From €2.10*
Skip product gallery
Angle Bracket Set 8 40x40, black Angle Bracket Set 8 40x40, black
ZI-1100-S
Angle Bracket Set 8 40x40, black
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €2.85*
Angle Bracket Set 8 40x40, black Angle Bracket Set 8 40x40, black
ZI-1100
Angle Bracket Set 8 40x40, black
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €3.95*
Angle Bracket Set 8 80x80, black Angle Bracket Set 8 80x80, black
ZI-1115-S
Angle Bracket Set 8 80x80, black
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €4.95*
Angle Bracket Set 8 80x80, black Angle Bracket Set 8 80x80, black
ZI-1198
Angle Bracket Set 8 80x80, black
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €7.12*
Angle Bracket Set 8 80x80, black Angle Bracket Set 8 80x80, black
ZI-1115
Angle Bracket Set 8 80x80, black
Angles are a force-locking and unworkable connection. These are also used as additional reinforcement of connections and as a fastening element for attachments. Integrated twisting fuses for fixation in the profile are available. These are removed if necessary.

From €7.12*
Automatic-Fastening Set 8, bright zinc-plated Automatic-Fastening Set 8, bright zinc-plated
VI-1102
Automatic-Fastening Set 8, bright zinc-plated
Extremely fast and flexible connection without mechanical processing Universal and friction-locked connection of all profiles in a series Can be subsequently moved in the groove. Can be retrofitted into an existing construction. Connector assembly only on one profile

From €1.60*
