Profile 60x90 natural-10
Profile length:
Cut length
Maunsystem GmbH
Loading...
€76.42*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€76.42 *
Product number:
PB-1520 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1006849
Weight:
6.92 kg
Description
Product information "Profile 60x90 natural-10"
The profiles in pitch 60 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 990 450
Details
lx 211,09 cm4
ly 90,43 cm4
wx 47,21 cm3
wy 30,14 cm3
Profile cross-section 25,64 cm2
Weight 6,92 kg/m
ly 90,43 cm4
wx 47,21 cm3
wy 30,14 cm3
Profile cross-section 25,64 cm2
Weight 6,92 kg/m
Step-Datei
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Rectangular |
| Delivery unit: | Cuts |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 20 |
| Profile height: | 60 mm |
| Profile length: | Cut length |
| Profile width: | 90 mm |
| Series: | Series 60-10 |
| Size: | 60x90 mm |
| Slot pull-out force: | F=12.000 N |
| Tolerances: | EN 12020-2 |
Skip product gallery
![Cap 60x90, black-10]( "Cap 60x90, black-10")
Regular price:
€1.55
AB-3070

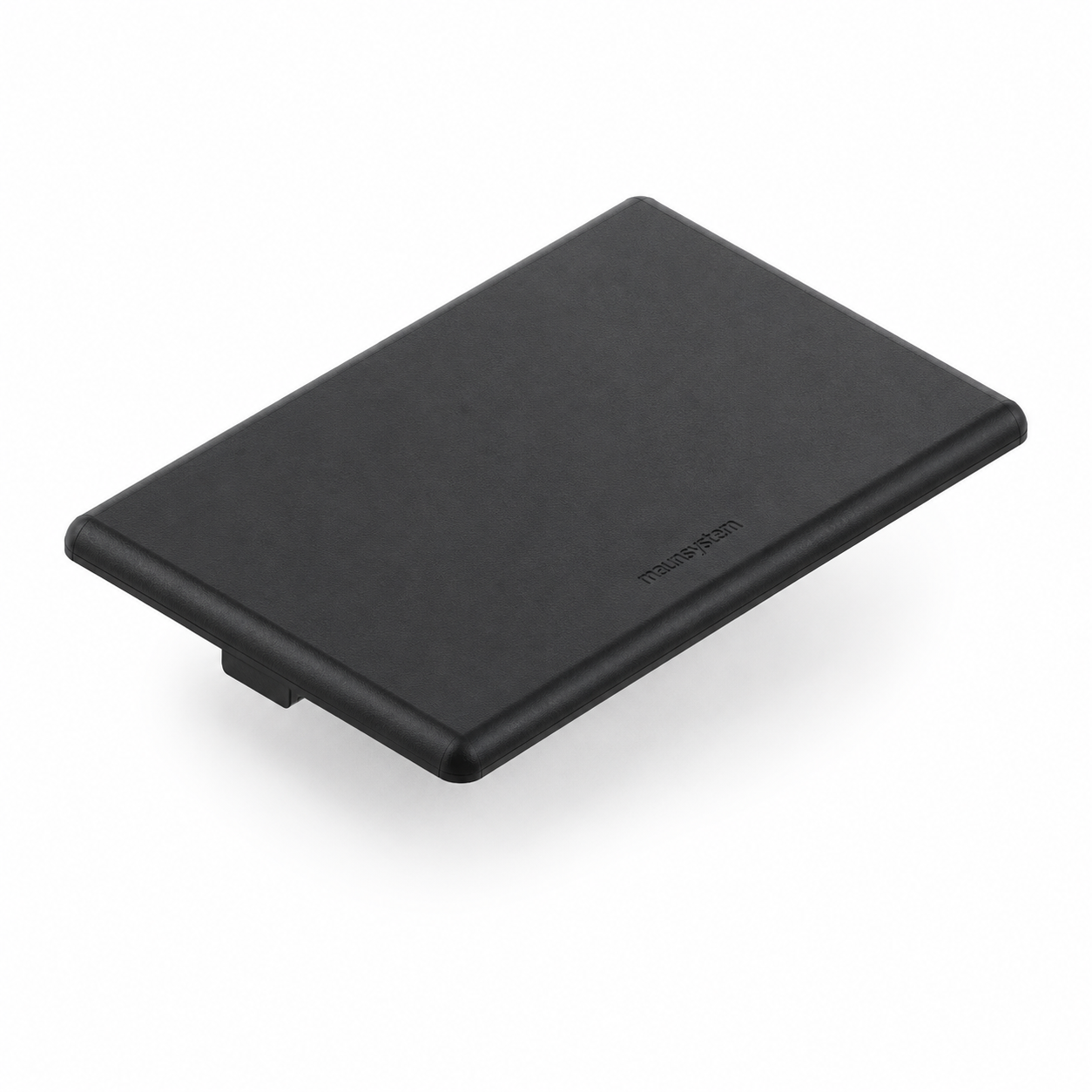

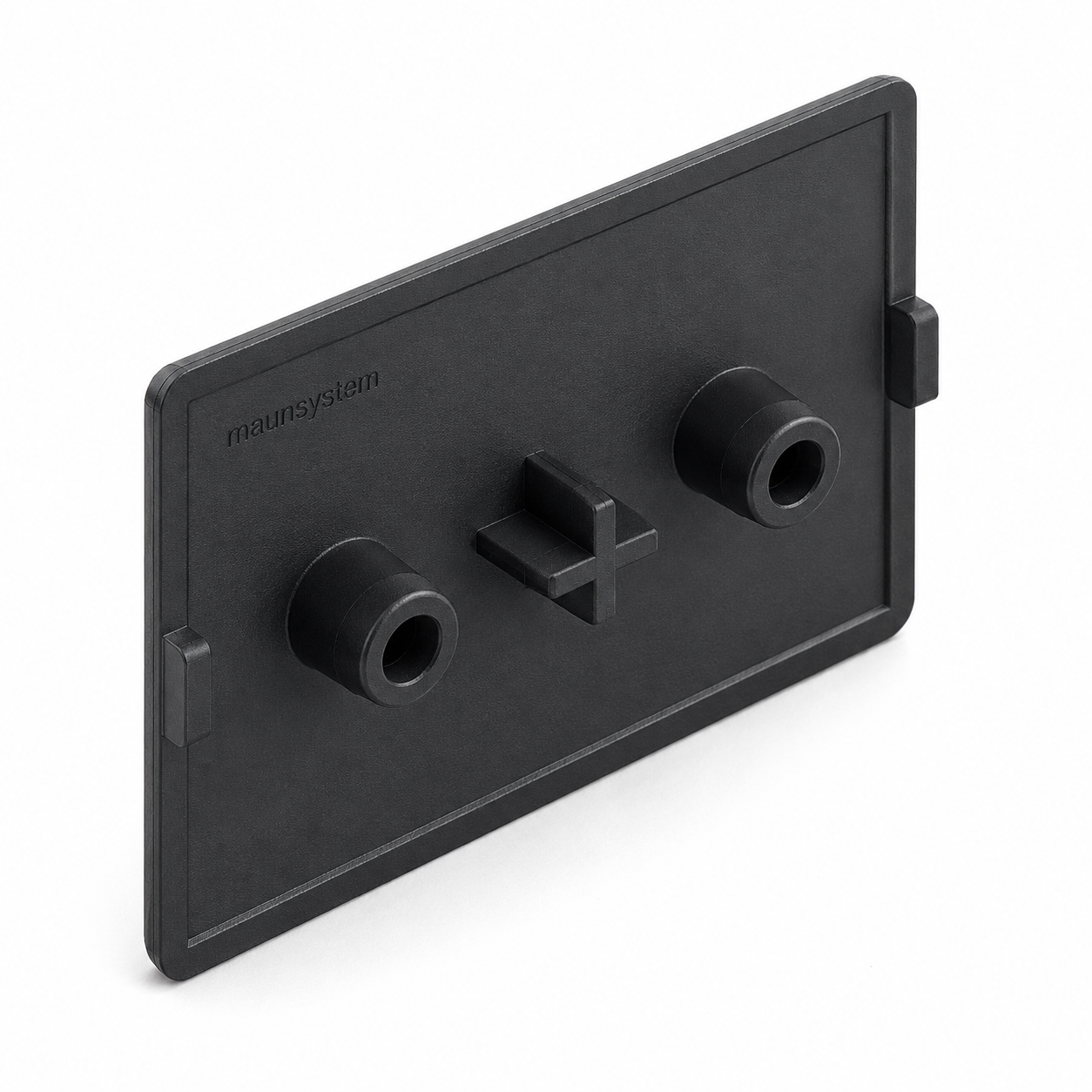

Cap 60x90, black-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.
Skip product gallery
![Cap 60x90, black-10]( "Cap 60x90, black-10")
Regular price:
€1.55
AB-3070
Cap 60x90, black-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.
