Profile 60x60 light natural-8
Profile length:
Cut length
Maunsystem GmbH
Loading...
€33.54*
| Accessories total price | €0.00 |
accessories
Accessories total price
€33.54 *
Product number:
PB-1885 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1006873
Weight:
2.58 kg
Description
Product information "Profile 60x60 light natural-8"
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 993 033
Step-Datei
Download| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Square |
| Delivery unit: | Cuts |
| Execution: | light |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 30 |
| Nutauszugskraft: | F=4.000 N |
| Profile length: | Cut length |
| Series: | Series 30 8 |
| Size: | 60x60 mm |
| Tolerances: | EN 12020-2 |
Skip product gallery
![Cap 60x60,-10]( "Cap 60x60,-10")
Regular price:
€1.27
![Cap 60x60,-10]( "Cap 60x60,-10")
Regular price:
€1.27

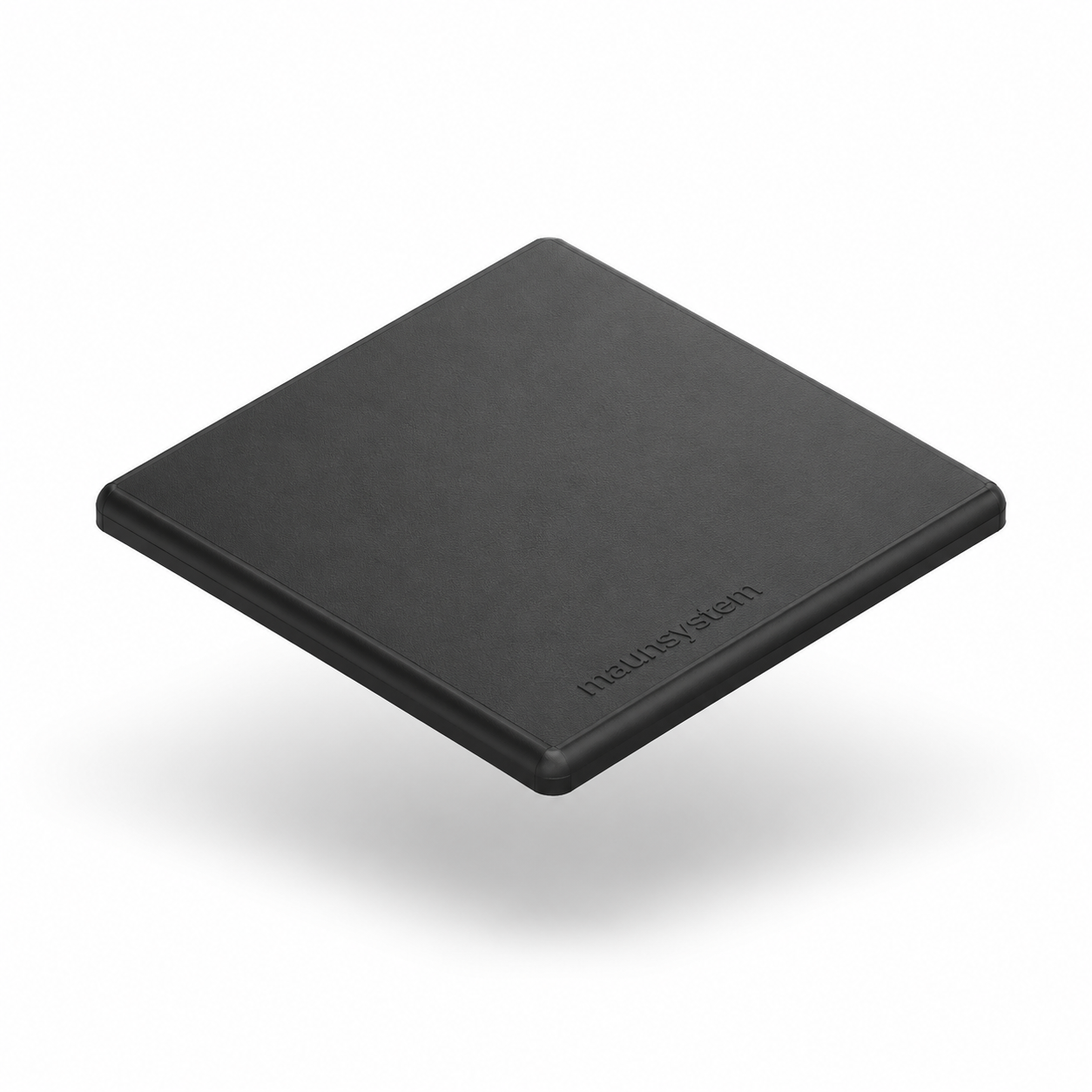

AB-3065-S
Cap 60x60,-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

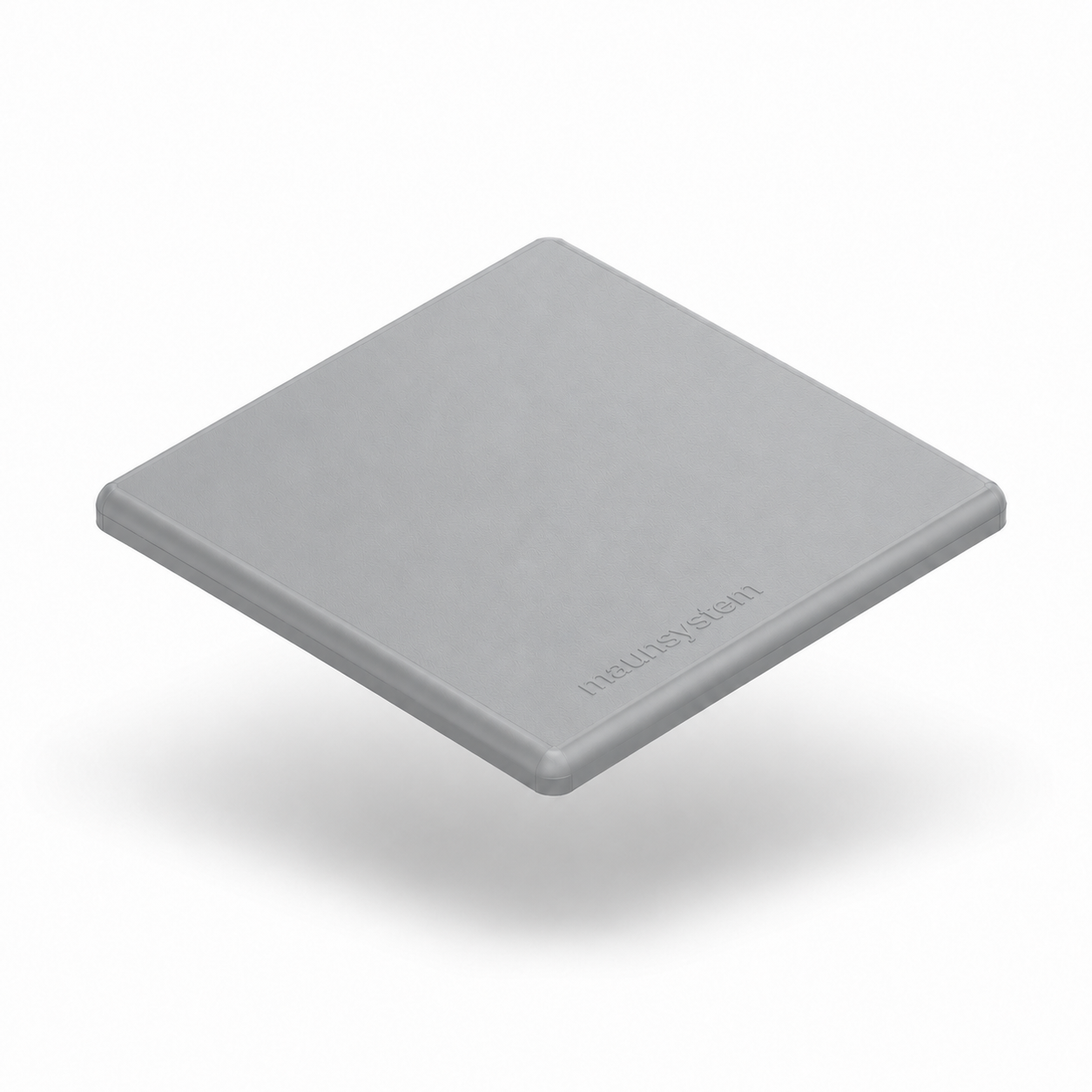

AB-3065-G
Cap 60x60,-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.
Skip product gallery
![Bolt Connector Set 30, bright zinc-plated-8]( "Bolt Connector Set 30, bright zinc-plated-8")
Regular price:
€3.15
![Inner Connector R Set, bright zinc-plated-8]( "Inner Connector R Set, bright zinc-plated-8")
Regular price:
€2.07
![T- Matic Double Connector Set 60, bright zinc-plated-8]( "T- Matic Double Connector Set 60, bright zinc-plated-8")
Regular price:
€11.13
![Angle Bracket Set 30 ST, black-/]( "Angle Bracket Set 30 ST, black-/")
Regular price:
€2.76
VB-2010
Bolt Connector Set 30, bright zinc-plated-8
The pin connector is used for connecting two rectangular profiles It is designed for very high loads, even fürTorsion suitable. The shoring in already assembled components is possible.
VB-2060
Inner Connector R Set, bright zinc-plated-8
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.
VB-2039
T- Matic Double Connector Set 60, bright zinc-plated-8
Extremely fast and flexible connection without mechanical processing Universal and force-fitting connection of all profiles in one series Can be subsequently moved in the groove. Can be retrofitted into an existing construction. Connector assembly only on one profile,
ZB-2031
Angle Bracket Set 30 ST, black-/
Very stable fasteners made of steel for the safe connection of profiles.
