Profile 5 R20-90°, natural

Profile length: Cut length
Profile 5 R20-90°, natural
3D
Click and move
Open AR View
Tap to place the object
Move the device to start
Profile 5 R20-90°, natural
Profile 5 R20-90°, natural
Profile 5 R20-90°, natural
Profile 5 R20-90°, natural
Profile 5 R20-90°, natural
Profile 5 R20-90°, natural
Profile 5 R20-90°, natural

€6.70*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Profile 5 R20-90°, natural
Profile length: Cut length
€6.70*
Profile 5 R20-90°, natural
Profile length: Cut length
€6.70*
Cap 5 R20-90°, black
€0.29 - €0.35*
Cap 5 R20-90°, black
€0.29 - €0.35*
Accessories total price

€6.70 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PI-4110 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006765
Weight: 0.474 kg

Product information "Profile 5 R20-90°, natural"

The compact design of Profiles 5 makes them particularly suitable for small and weight-optimised assemblies. The grooves and core holes of Profiles 5 are designed for M5 screws.

Cut to size max. 6000 mm


Compatible with item 0.0.425.43

Details

l    0,6 cm4
w    0,55 cm3
Profilfläche    1,76 cm2
Gewicht    0,48 kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: item
Contour: Round
Delivery unit: Cuts
Execution: heavy
Groove shape: Radius profiles
Material: Al Mg Si 0.5 F25, artificially aged
Profile length: Cut length
Series: Series 5
Size: 20x20 mm
Tolerances: EN 12020-2
Profile 5 R20-90°, natural Profile 5 R20-90°, natural
PI-4110 SZ
Profile 5 R20-90°, natural
The compact design of Profiles 5 makes them particularly suitable for small and weight-optimised assemblies. The grooves and core holes of Profiles 5 are designed for M5 screws.Cut to size max. 6000 mm

€6.70 / 1000 mm *
Details

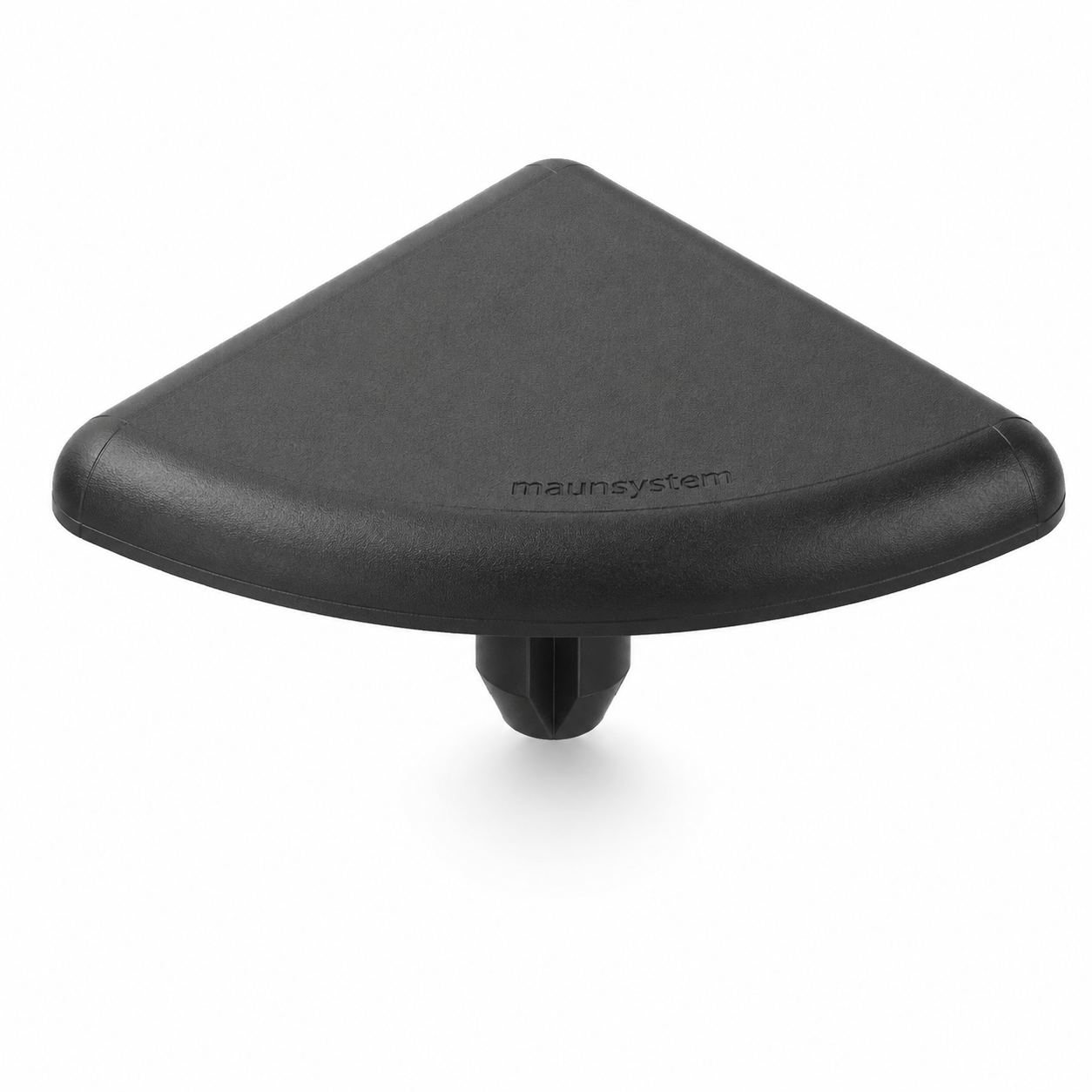

Cap 5 R20-90°, black Cap 5 R20-90°, black
AI-4050
Cap 5 R20-90°, black
0.0.425.71

From €0.29*
Angle Bracket Set 5 20x20 Angle Bracket Set 5 20x20
ZI-4040
Angle Bracket Set 5 20x20
Angles are a force-locking and machining-free connection. These are also used as additional reinforcement of connections and as a fastening element for add-on parts. Integrated anti-twist devices for fixing in the profile are provided. These are removed if required.

From €3.10*
Automatic-Fastening Set 5, bright zinc-plated Automatic-Fastening Set 5, bright zinc-plated
VI-4035
Automatic-Fastening Set 5, bright zinc-plated
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector assembly only to a profile

From €2.25*
