Profile 45x45 R light natural-10
Profile length:
Cut length
Maunsystem GmbH
Loading...
€15.72*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€15.72 *
Product number:
PB-1255 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1006836
Weight:
1.27 kg
Description
Product information "Profile 45x45 R light natural-10"
The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 992 897
Compatible with Bosch 3 842 992 897
Details
l 8,01 cm4
w 3,2 cm3
Profile cross-section 4,7 cm2
Weight 1,27 kg/m
w 3,2 cm3
Profile cross-section 4,7 cm2
Weight 1,27 kg/m
Step-Datei
| Colour: | natural |
|---|---|
| Compatible with: | Bosch |
| Contour: | Round |
| Delivery unit: | Cuts |
| Execution: | light |
| Modular dimension: | Modular dimension 45 |
| Profile height: | 45 mm |
| Profile length: | Cut length |
| Profile width: | 45 mm |
| Series: | Series 45-10 |
| Size: | 45x45 mm |
Skip product gallery
![Cap 45x45 R, black-10]( "Cap 45x45 R, black-10")
Regular price:
€1.02
AB-3045

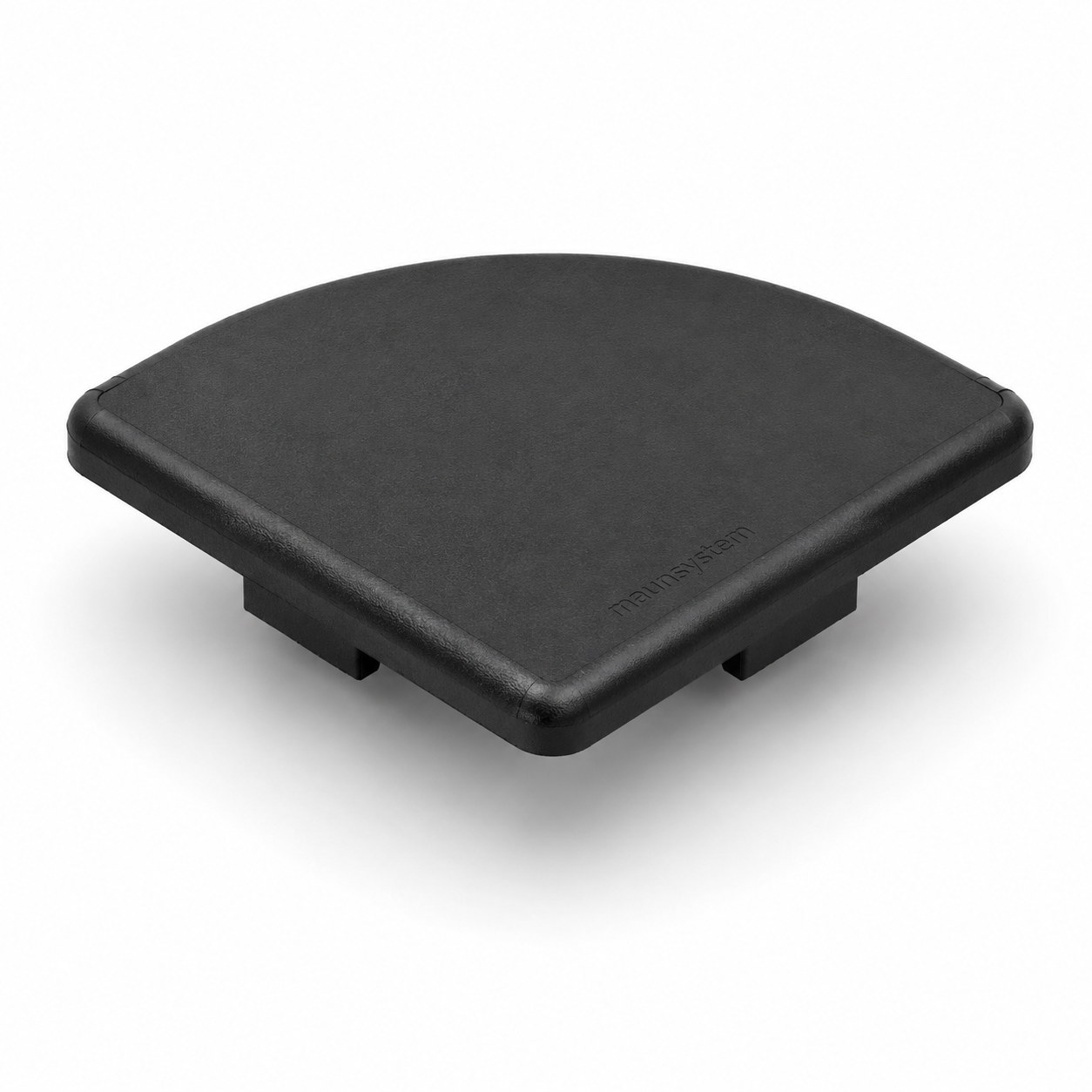

Cap 45x45 R, black-10
