Profile 45x45 2N 180° light natural-10

Profile length: Cut length
Profile 45x45 2N 180° light natural-10
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
Profile 45x45 2N 180° light natural-10
Profile 45x45 2N 180° light natural-10
Profile 45x45 2N 180° light natural-10
Profile 45x45 2N 180° light natural-10
Profile 45x45 2N 180° light natural-10

€15.88*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Accessories total price

€15.88 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PB-1230 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006830
Weight: 1.64 kg

Product information "Profile 45x45 2N 180° light natural-10"

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 992 403

Compatible with Bosch 3 842 992 403

Details

lx    11,04 cm4
ly    12,66 cm4
wx    4,91 cm3
wy    5,63 cm3
Profilfläche    6,08 cm2
Gewicht    1,64 kg/m

Step-Datei

Download
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Cuts
Execution: light
Groove shape: 2 sides closed 180°
Modular dimension: Modular dimension 45
Nutauszugskraft: F=7.000 N
Profile length: Cut length
Series: Series 45-10
Size: 45x45 mm
Breite Profil: 45 mm
Höhe Profil: 45 mm
Skip product gallery
Cap 45x45-10 Cap 45x45-10
AB-3020-S
Cap 45x45-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.62*
Cap 45x45-10 Cap 45x45-10
AB-3020-G
Cap 45x45-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.62*

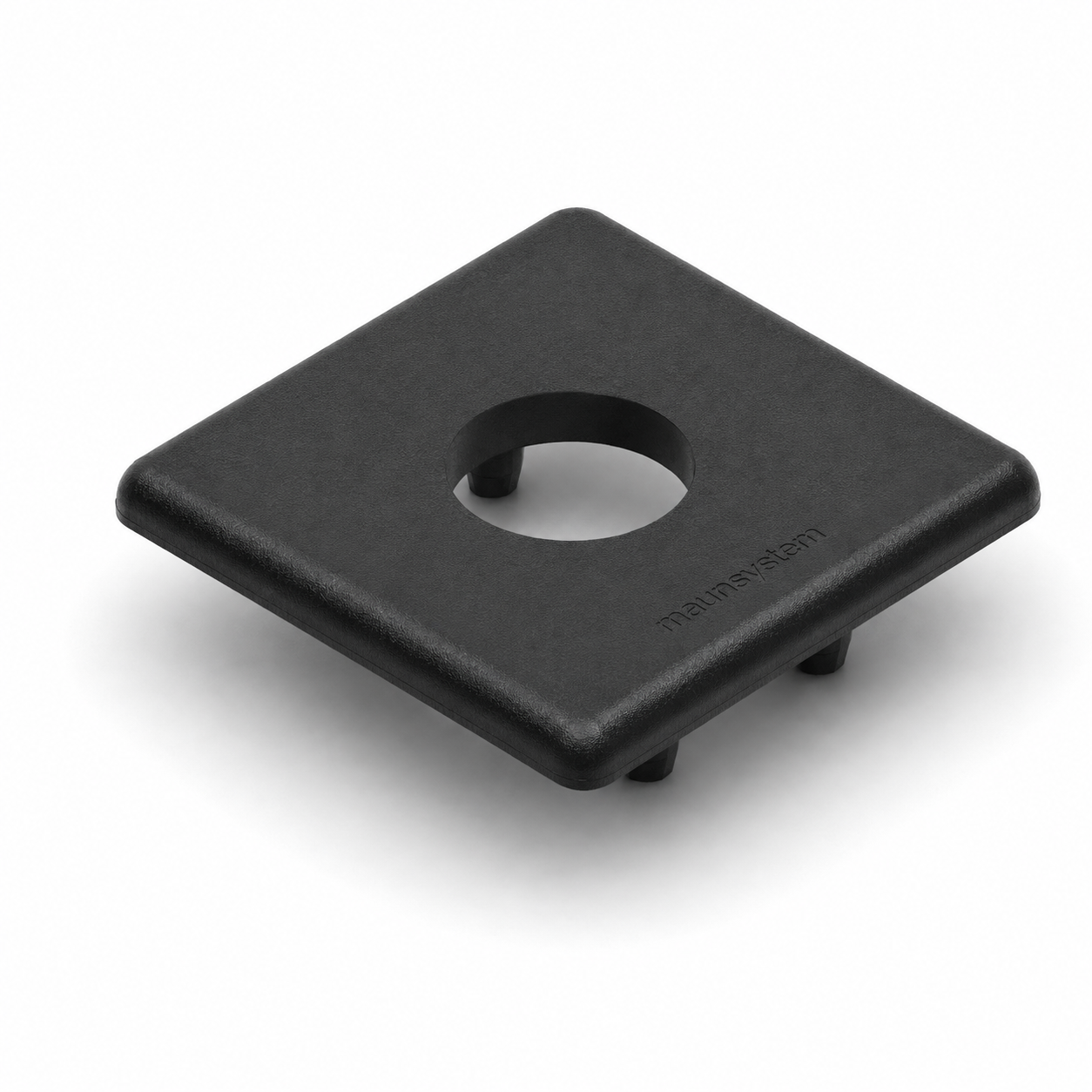

Cap 45x45 LO, black-10 Cap 45x45 LO, black-10
