Profile 45x45 1N light natural-10

Profile length: Cut length
Profile 45x45 1N light natural-10
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
Profile 45x45 1N light natural-10
Profile 45x45 1N light natural-10
Profile 45x45 1N light natural-10
Profile 45x45 1N light natural-10
Profile 45x45 1N light natural-10

€17.85*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Accessories total price

€17.85 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PB-1215 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006827
Weight: 1.69 kg

Product information " Profile 45x45 1N light natural-10 "

The profiles in pitch 45 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with Bosch 3 842 992 401

Compatible with Bosch 3 842 992 401

Details

lx    11,85 cm4
ly    12,68 cm4
wx    5,13 cm3
wy    5,64 cm3
Profilfläche    6,25 cm2
Gewicht    1,69 kg/m

Step-Datei

Download
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Cuts
Execution: light
Groove shape: 3 sides closed
Modular dimension: Modular dimension 45
Nutauszugskraft: F=7.000 N
Profile length: Cut length
Series: Series 45-10
Size: 45x45 mm
Breite Profil: 45 mm
Höhe Profil: 45 mm
Skip product gallery

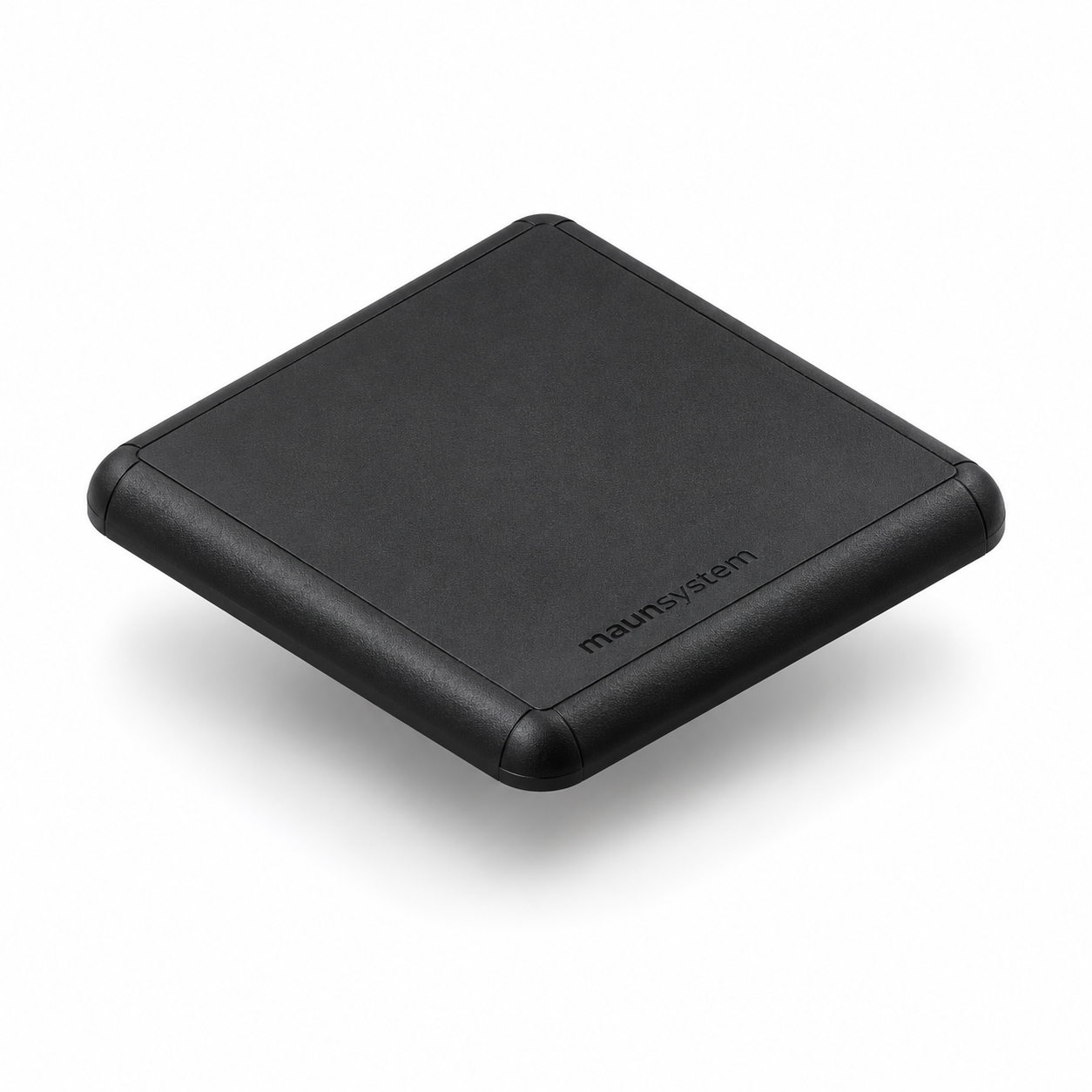

Cap 45x45-10 Cap 45x45-10
AB-3020-S
Cap 45x45-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.62*

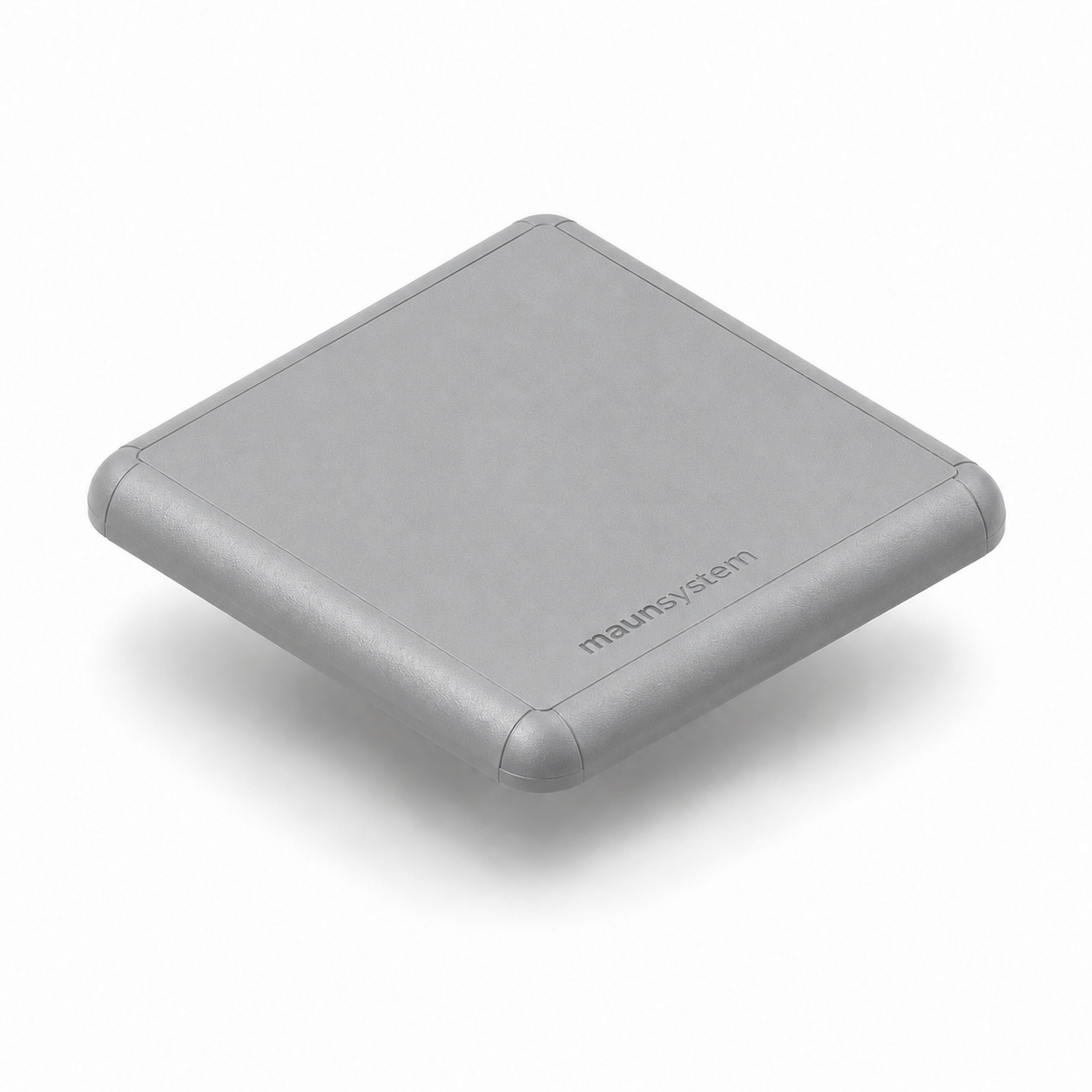

Cap 45x45-10 Cap 45x45-10
AB-3020-G
Cap 45x45-10
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.62*
Skip product gallery
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-N
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-W
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

Variants from €3.10*
€4.71*
Angle Bracket Set 45x45 - 10 Angle Bracket Set 45x45 - 10
ZB-3095-G
Angle Bracket Set 45x45 - 10
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€3.10*
Bolt Connector Set 45, bright zinc-plated-10 Bolt Connector Set 45, bright zinc-plated-10
VB-3015
Bolt Connector Set 45, bright zinc-plated-10
The bolt connector is used to connect two profiles at right angles. It is suitable for very high loads, including torsion. It can be installed in already mounted assemblies.

€3.45*
Qick Connector 0°, bright zink-plated-10 Qick Connector 0°, bright zink-plated-10
VB-3050
Qick Connector 0°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
Qick Connector 90°, bright zink-plated-10 Qick Connector 90°, bright zink-plated-10
VB-3045
Qick Connector 90°, bright zink-plated-10
Universal and force-fitting connection of all profiles in a series Can be subsequently slid in the groove. Can be swivelled into the groove Can be retrofitted into an existing construction. Machining only on one profile

€1.99*
T- Matic light Connector Set, bright zinc-plated-10 T- Matic light Connector Set, bright zinc-plated-10
VB-3035
T- Matic light Connector Set, bright zinc-plated-10
Extremely fast and flexible connection without machining mechansiche Universal and positive connection of all profiles in a series retrospectively in the groove moved. possible in an existing design retrofitting. Connector mounting only one profile,

€4.70*
