Profile 30x60 light natural-8
Profile length:
2000 mm bar
Maunsystem GmbH
Loading...
€27.47*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€27.47 *
Product number:
PB-1830 SN2000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1010176
Length:
2000 mm
Weight:
1.49 kg
Description
Product information " Profile 30x60 light natural-8 "
Profiles 8 are particularly suitable for weight-optimised assemblies. The grooves and the core holes of profiles 8 are designed for M8 screws.
Compatible with Bosch 3 842 992 457
Details
lx 19,66 cm4
ly 5,09 cm4
wx 6,55 cm3
wy 3,39 cm3
Profile cross-section 5,53 cm2
Weight 1,49 kg/m
ly 5,09 cm4
wx 6,55 cm3
wy 3,39 cm3
Profile cross-section 5,53 cm2
Weight 1,49 kg/m
Step-Datei
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Rectangular |
| Delivery unit: | Rods |
| Execution: | light |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 30 |
| Profile height: | 30 mm |
| Profile length: | 2000 mm bar |
| Profile width: | 60 mm |
| Series: | Series 30 8 |
| Size: | 60x30 mm |
| Slot pull-out force: | F=4.000 N |
| Tolerances: | EN 12020-2 |
Skip product gallery
![Cap 30x60, black-8]( "Cap 30x60, black-8")
Regular price:
€1.08
AB-2030
Cap 30x60, black-8
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.
Skip product gallery
![Bolt Connector Set 30, bright zinc-plated-8]( "Bolt Connector Set 30, bright zinc-plated-8")
Regular price:
€3.15
![Inner Connector R Set, bright zinc-plated-8]( "Inner Connector R Set, bright zinc-plated-8")
Regular price:
€2.07
![T- Matic Double Connector Set 60, bright zinc-plated-8]( "T- Matic Double Connector Set 60, bright zinc-plated-8")
Regular price:
€11.13
![Angle Bracket Set 30 ST, black-/]( "Angle Bracket Set 30 ST, black-/")
Regular price:
€2.76
VB-2010
Bolt Connector Set 30, bright zinc-plated-8
The pin connector is used for connecting two rectangular profiles It is designed for very high loads, even fürTorsion suitable. The shoring in already assembled components is possible.
VB-2060
Inner Connector R Set, bright zinc-plated-8
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.
VB-2039

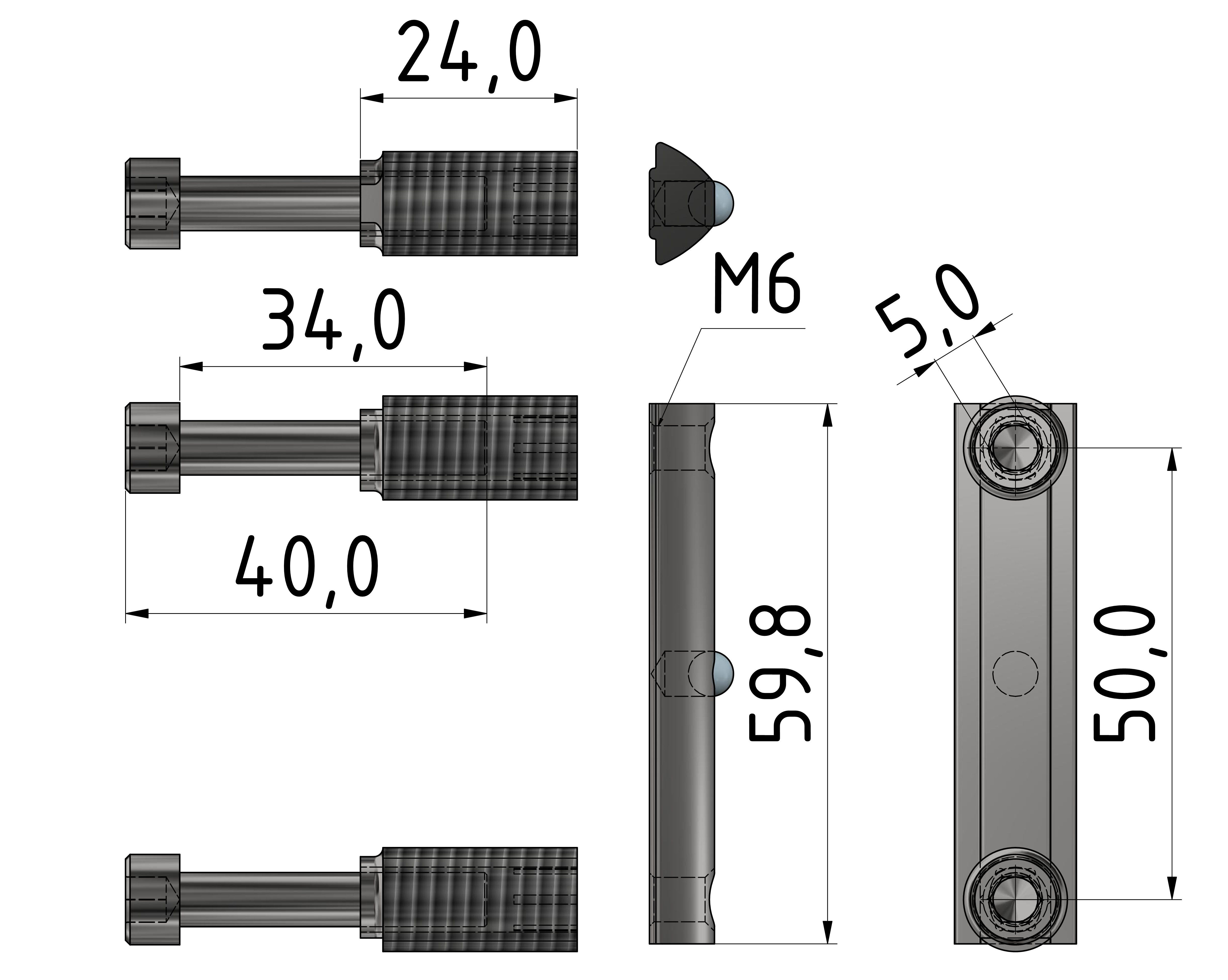

T- Matic Double Connector Set 60, bright zinc-plated-8
Extremely fast and flexible connection without mechanical processing Universal and force-fitting connection of all profiles in one series Can be subsequently moved in the groove. Can be retrofitted into an existing construction. Connector assembly only on one profile,
ZB-2031
Angle Bracket Set 30 ST, black-/
Very stable fasteners made of steel for the safe connection of profiles.
