Profile 20x20 1N natural- 6

Profile length: Cut length
Profile 20x20 1N natural- 6
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
Profile 20x20 1N natural- 6
Profile 20x20 1N natural- 6
Profile 20x20 1N natural- 6
Profile 20x20 1N natural- 6
Profile 20x20 1N natural- 6

€5.96*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

Cap 20x20-6
Colour: black
€0.38*
Cap 20x20-6
Colour: black
€0.38*
Cap 20x20-6
Colour: grey
€0.33*
Cap 20x20-6
Colour: grey
€0.33*
Accessories total price

€5.96 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PB-1726 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006854
Weight: 0.525 kg

Product information "Profile 20x20 1N natural- 6"

The compact design of Profiles 6 makes them particularly suitable for small and weight-optimised assemblies. The grooves and the core holes of the profiles 6 are designed for M6 screws.
Cut to size max. 6000 mm

Compatible with Bosch 3 842 993 421

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Compatible with: Bosch
Contour: Square
Delivery unit: Cuts
Execution: heavy
Groove shape: 3 sides closed
Material: Al Mg Si 0.5 F25, artificially aged
Modular dimension: Modular dimension 20
Nutauszugskraft: F=1.000 N
Profile length: Cut length
Series: Series 20-6
Size: 20x20 mm
Tolerances: EN 12020-2
Breite Profil: 20 mm
Höhe Profil: 20 mm
Skip product gallery
Cap 20x20-6 Cap 20x20-6
AB-1000-S
Cap 20x20-6
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

Variants from €0.33*
€0.38*
Cap 20x20-6 Cap 20x20-6
AB-1000-G
Cap 20x20-6
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Aufschlagen in die Kernbohrungen befestigt.

€0.33*
Skip product gallery

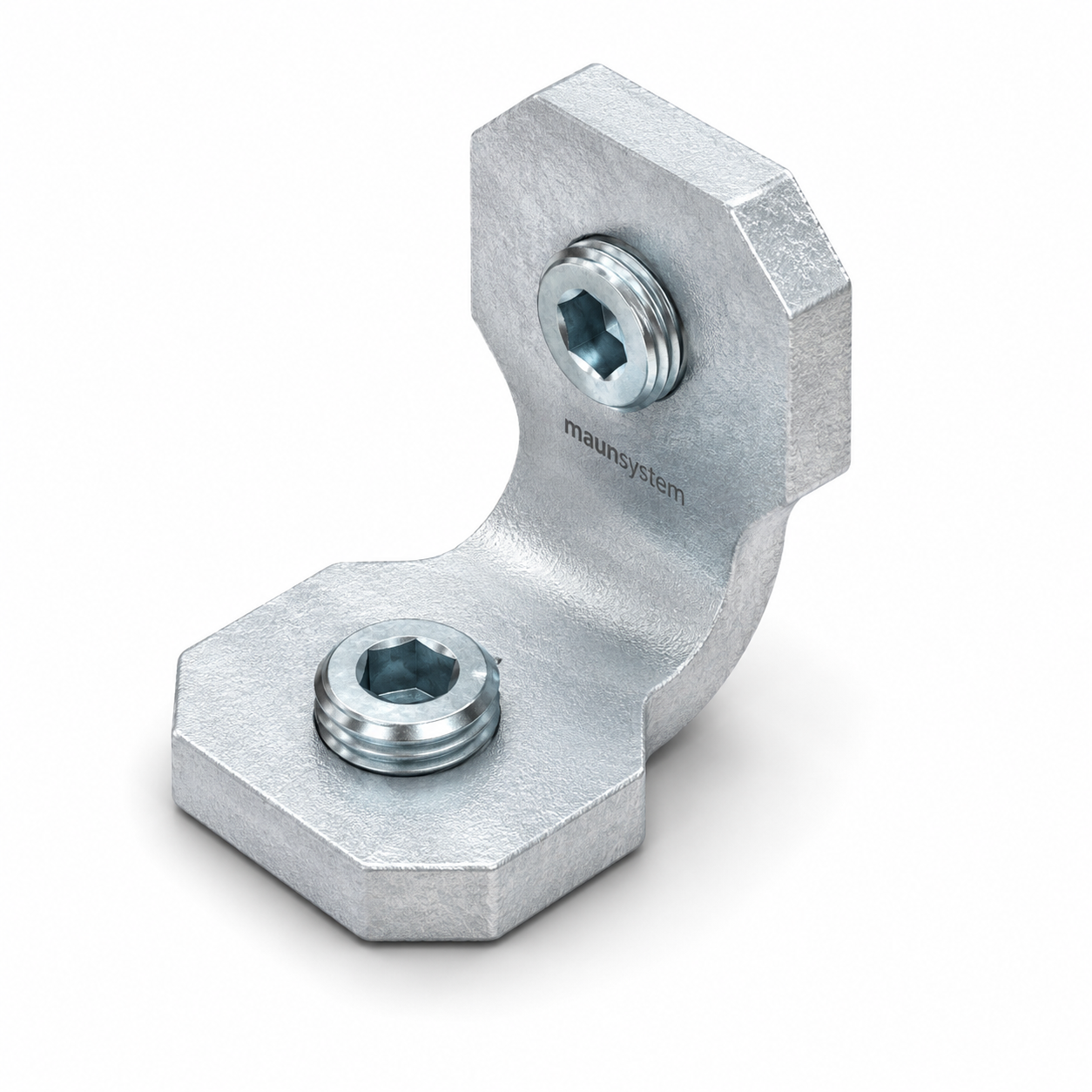

Inner Connector Set-6 Inner Connector Set-6
VB-1008
Inner Connector Set-6
The inner connector is used for connecting two angle profiles in the 90 degrees. It is not required profile machining.

€1.50*

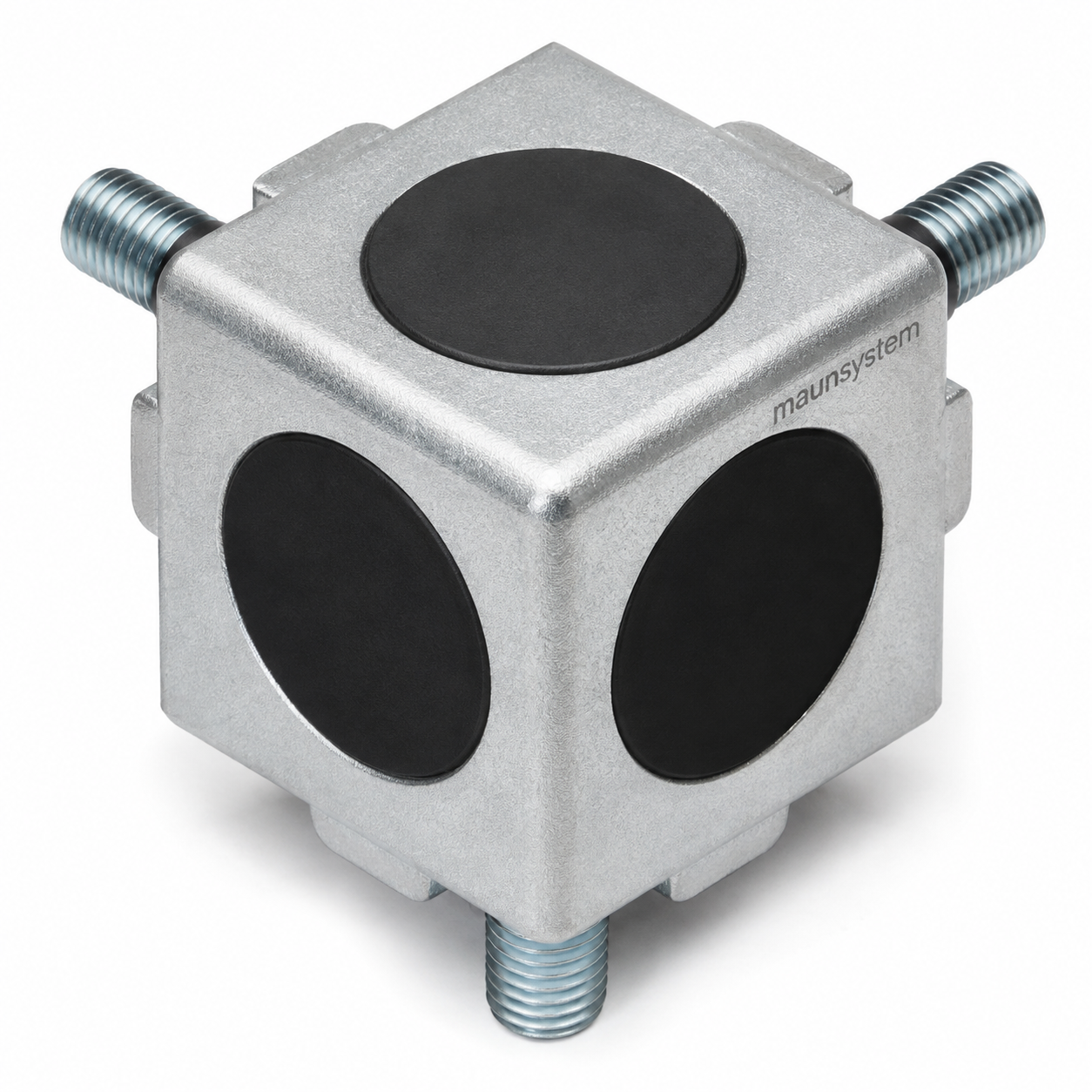

Cube Connector Set 3D 20, natural-6 Cube Connector Set 3D 20, natural-6
VB-1080
Cube Connector Set 3D 20, natural-6
Connecting sets enable the construction of visually appealing 3D room corners with 3 profiles or a corner angle with 2 profiles. A thread must be drilled into the end face of the corner profiles.

€5.41*
Angle Bracket Set 20x20, natural-6 Angle Bracket Set 20x20, natural-6
ZB-1005
Angle Bracket Set 20x20, natural-6
Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

€2.66*
