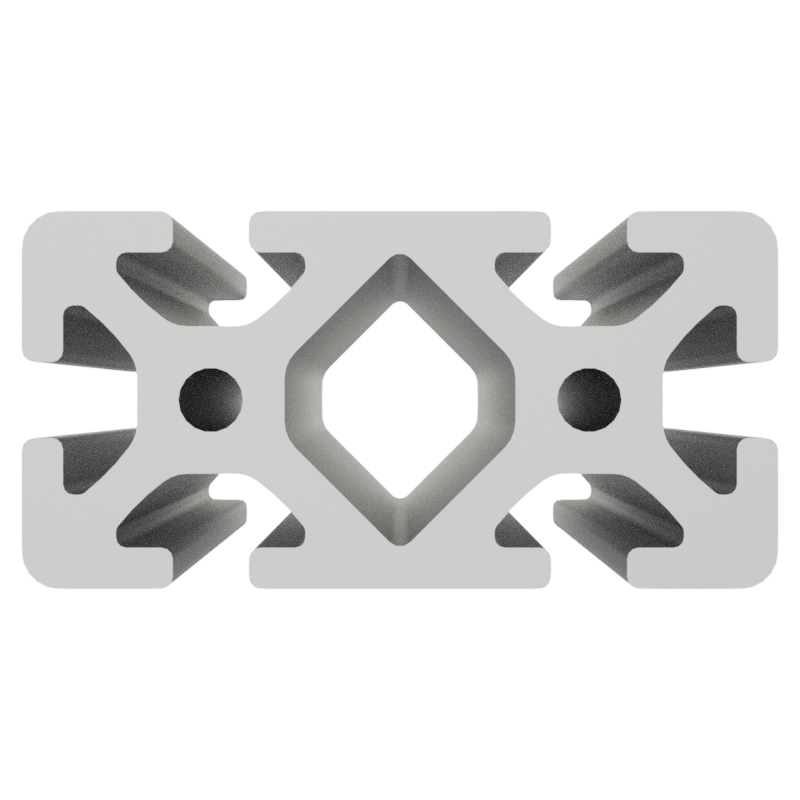

Profile 12 120x60, natural
Profile length:
6000 mm bar
Maunsystem GmbH
Loading...
| Quantity | Unit price |
|---|---|
| To 3pcs |
€610.38
|
| From 4pcs |
€591.48
|
Product number:
PI-8045 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1008936
Weight:
60.9 kg
Description
Product information "Profile 12 120x60, natural"
Profiles 12 are suitable for a wide range of assemblies. The grooves and the core holes of the profiles 12 are designed for screws M12.
Cut to size max. 6000 mm
Cut to size max. 6000 mm
Compatible with item 0.0.001.02
Details
Ix   135,4   cm4
Iy   509,7   cm4
Wx   45,1   cm3
Wy   85,1   cm3
Profile cross-section   37,58   cm2
Weight   10,15   kg/m
Iy   509,7   cm4
Wx   45,1   cm3
Wy   85,1   cm3
Profile cross-section   37,58   cm2
Weight   10,15   kg/m
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | item |
| Contour: | Rectangular |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Material: | Al Mg Si 0.5 F25, artificially aged |

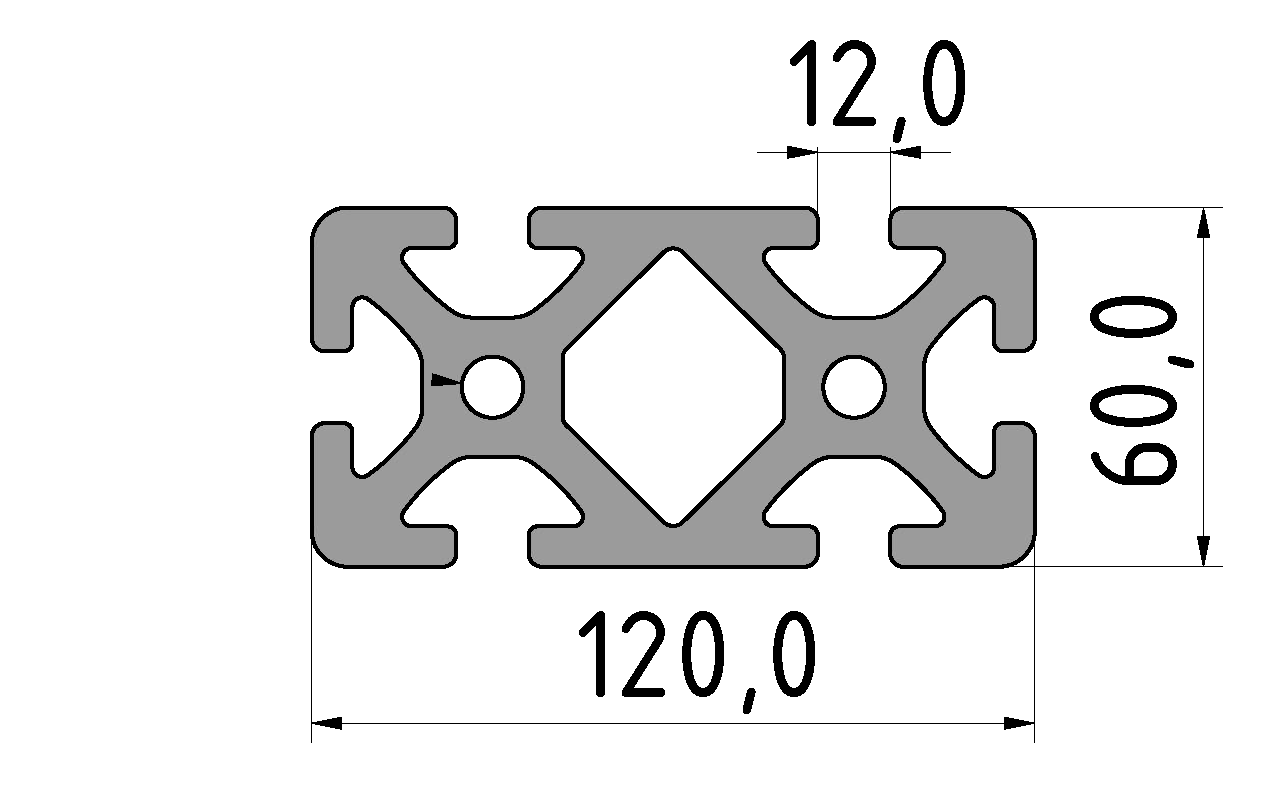

| Profile height: | 60 mm |
| Profile length: | 6000 mm bar |
| Profile width: | 120 mm |
| Series: | Series 12 |
| Size: | 120x60 mm |

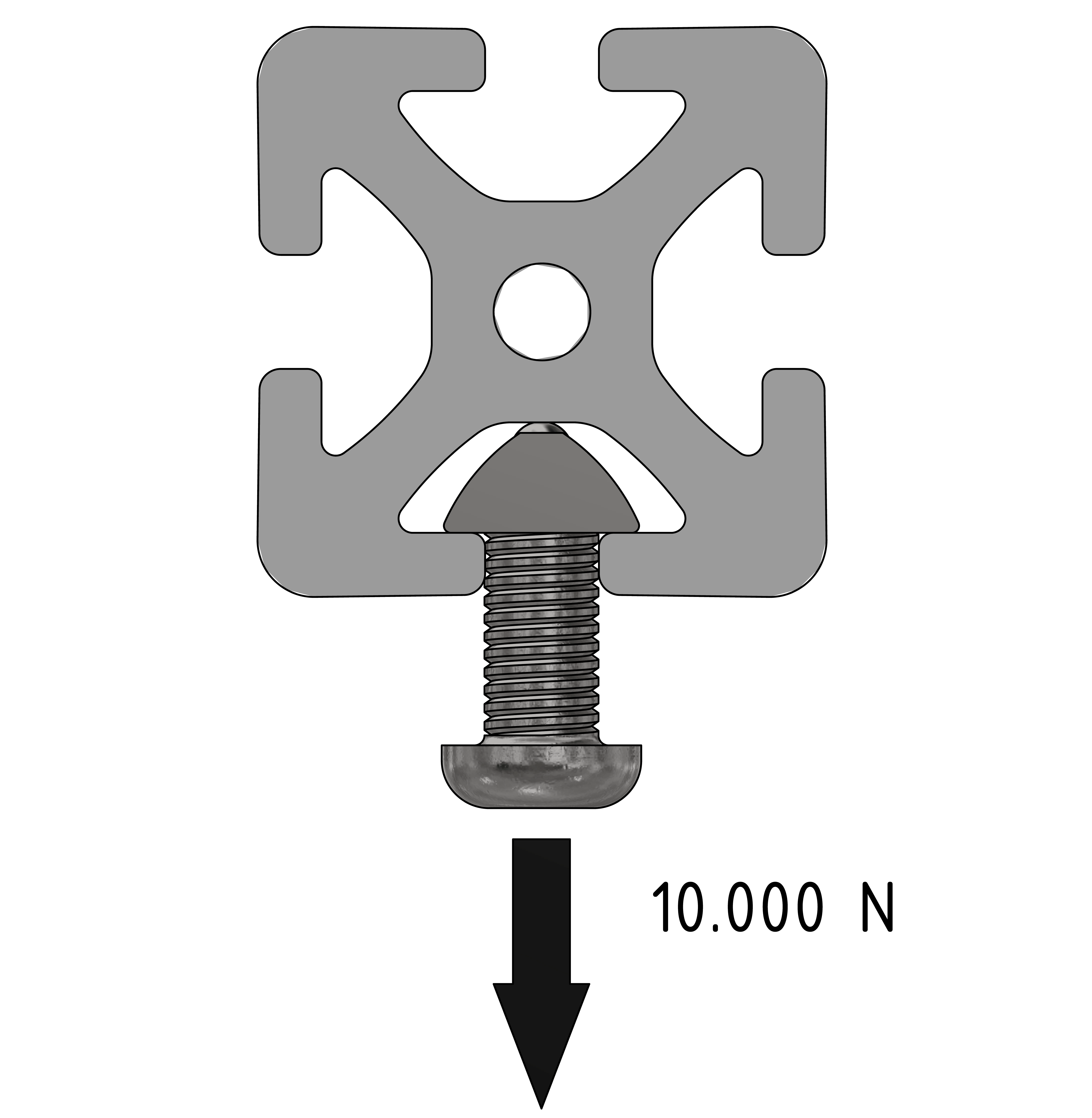

| Slot pull-out force: | F=10.000 N |
| Tolerances: | EN 12020-2 |
