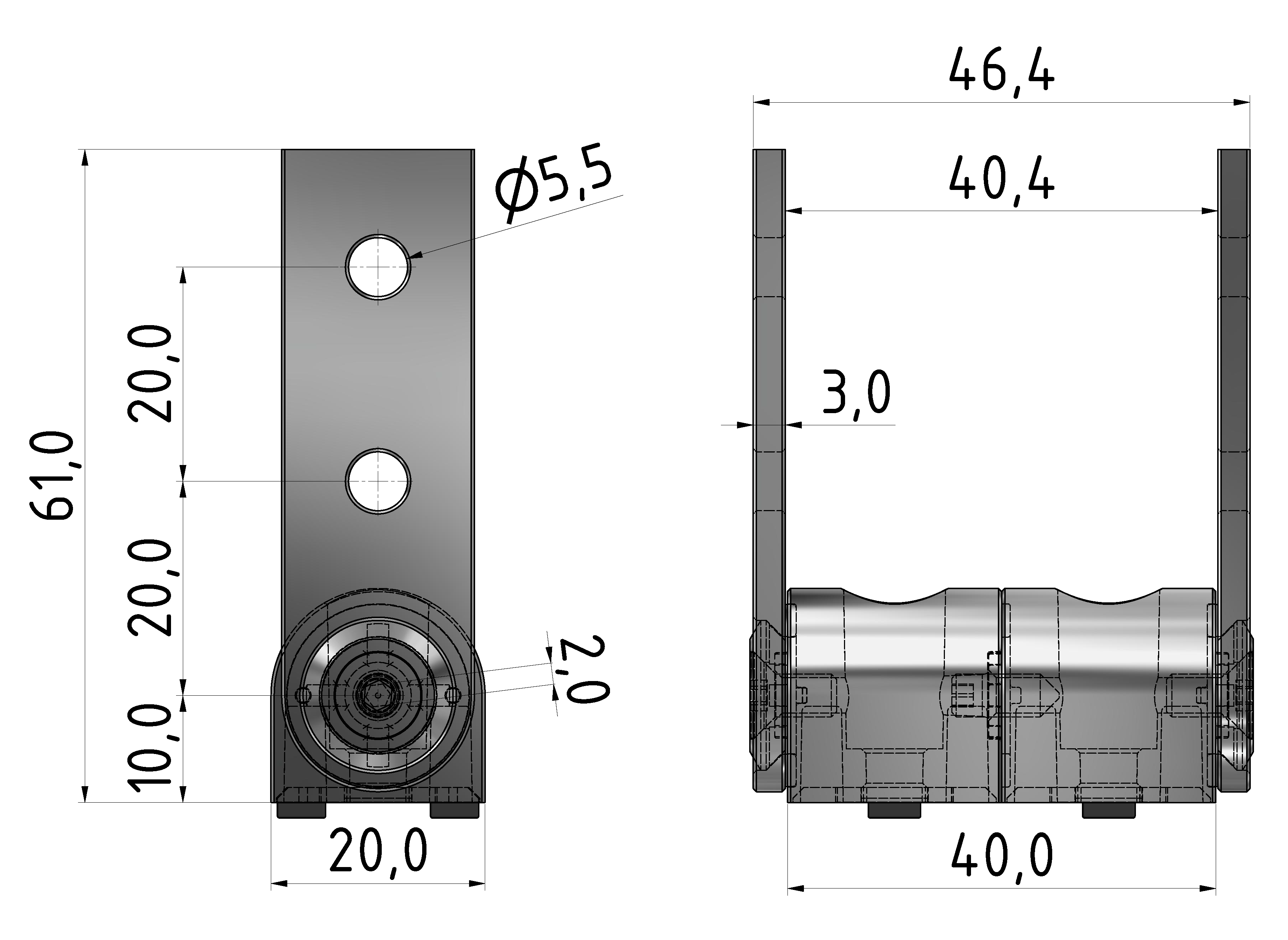

Pivot Joint 20x40, white aluminium-6
Maunsystem GmbH
Loading...
€19.02*
Product number:
VB-1065
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1002519
Weight:
0.045 kg
Description
Product information "Pivot Joint 20x40, white aluminium-6 "
Support arm joints are suitable for connecting profiles in a free angle. They can also be used as heavy hinges. The joints are freely movable. Tightening the clamping screws creates a rigid angle element. The fixings enable a twist-proof attachment to the profile groove.
Details
- 2 Joint head Support arm joint-6
- 2 Tab Support arm joint-6
- 4 Slot fixing-6
- 2Klemmschraube Support arm joint-6*
Step-Datei
| Colour: | white aluminium |
|---|---|
| Connection type: | Winkellage |
| Connector type : | Hinges |
| Part type : | Joints |
| Series: | Series 6 |
| Size: | 20x40 mm |
