€35.00*

PDF-Datasheet
Product number: VB-3255
Manufacturer: Maunsystem GmbH
Manufacturer number: 1002607
Weight: 1.069 kg

Description

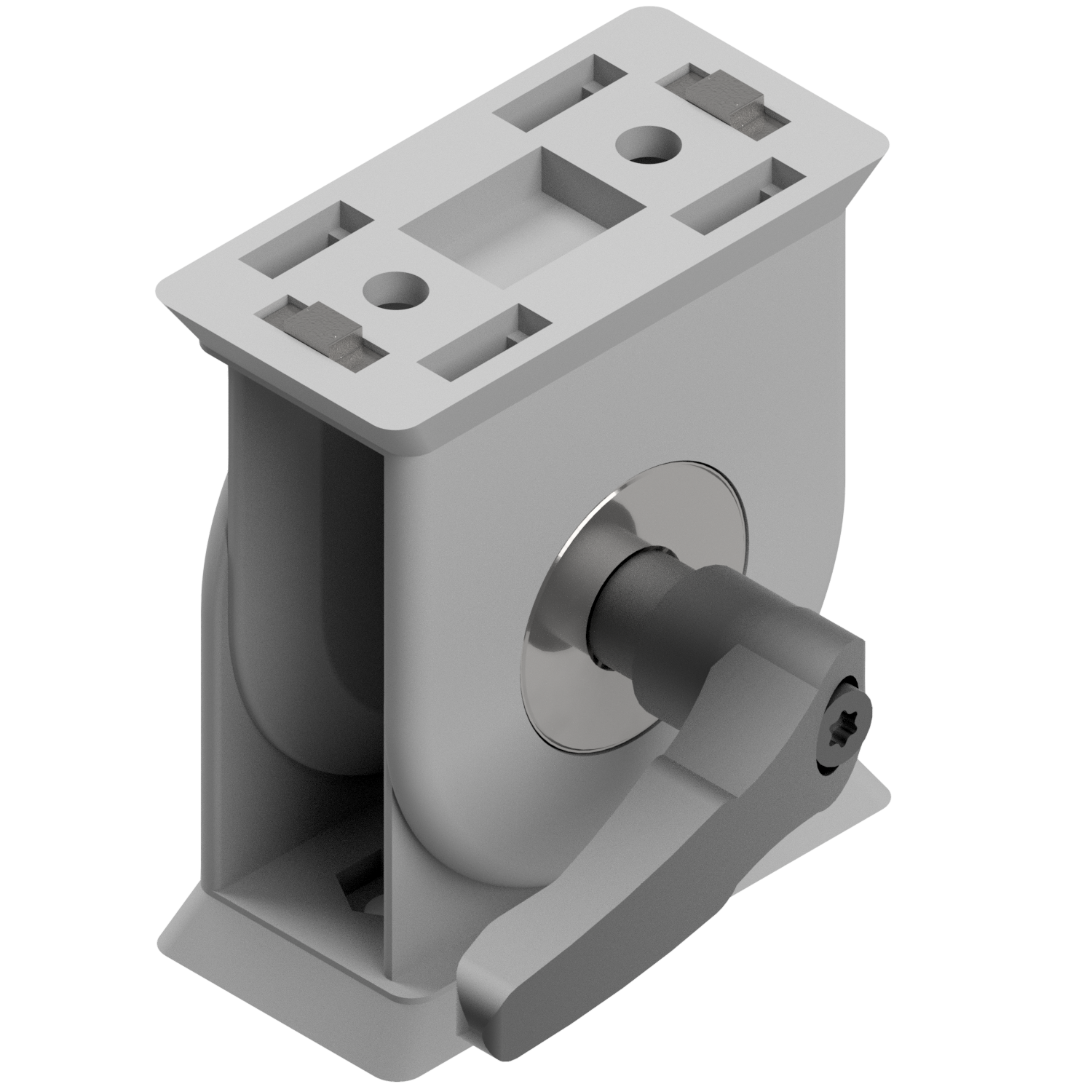

Product information "Hinge 90, heavy-duty with Clamp Lever, white aluminium-10"

Joints with clamping levers are suitable for connecting profiles in a free angle. They can also be used as heavy hinges. The joints are freely movable. Tightening the clamping lever creates a rigid angle element. The fixings enable a twist-proof attachment to the profile groove.

Details

  • 2 Gelenkhälfte 90
  • 8 Fixierung 45 AU244 1 Gewindebuchse-90
  • 1 Abstandshülse-90
  • 1 Buchse-90
  • 1 Klemmhebel-45

Step-Datei

Download
Colour: white aluminium
Compatible with: Bosch
Connector type : Hinges
Modular dimension: Modular dimension 45
Part type : Joints
Series: Series 45-10
Verbindungsart: Winkellage
