Clamp Profile 8 40x40-180°, natural

Profile length: Cut length
Clamp Profile 8 40x40-180°, natural
3D
Click and move
Open AR view
Tap to place the object
Move the device to start
Clamp Profile 8 40x40-180°, natural
Clamp Profile 8 40x40-180°, natural
Clamp Profile 8 40x40-180°, natural
Clamp Profile 8 40x40-180°, natural
Clamp Profile 8 40x40-180°, natural

€53.18*

Accessories total price €0.00

Prices excl. VAT plus shipping costs

Profile length

accessories

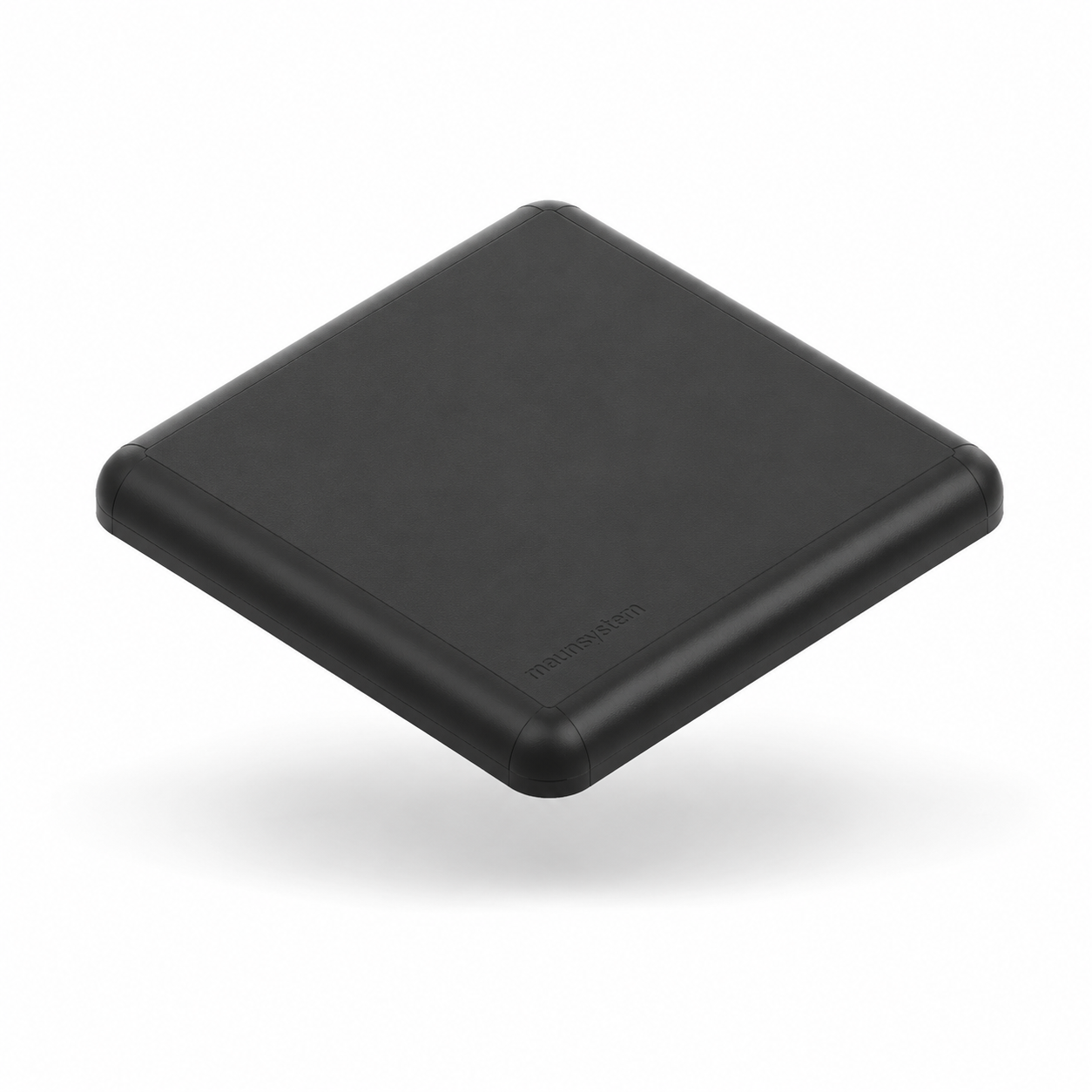

Cap 8 40x40, black
Colour: black
€0.25 - €0.35*
Cap 8 40x40, black
Colour: black
€0.25 - €0.35*

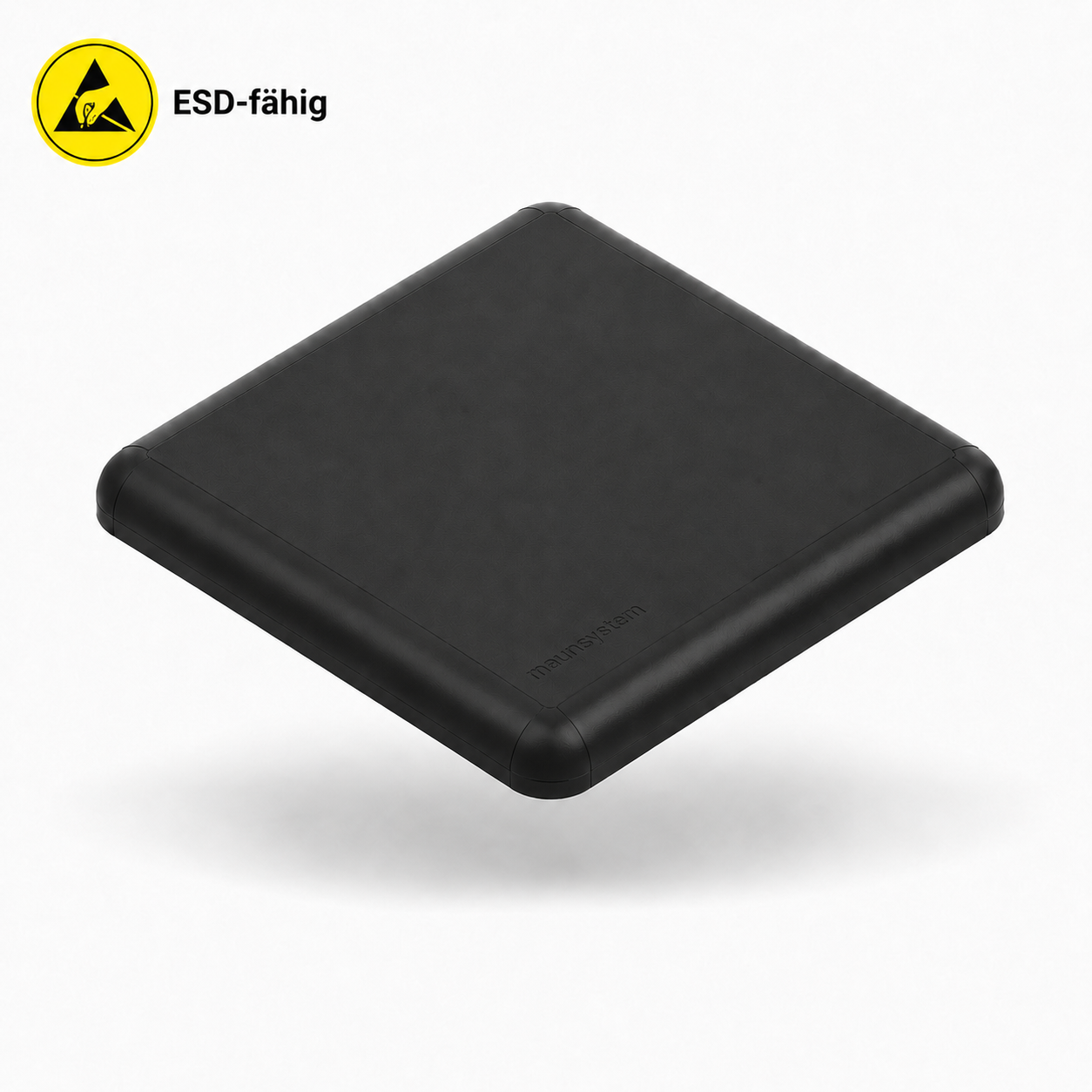

Cap 8 40x40 ESD, black
Colour: ESD
€0.59 - €0.75*
Cap 8 40x40 ESD, black
Colour: ESD
€0.59 - €0.75*

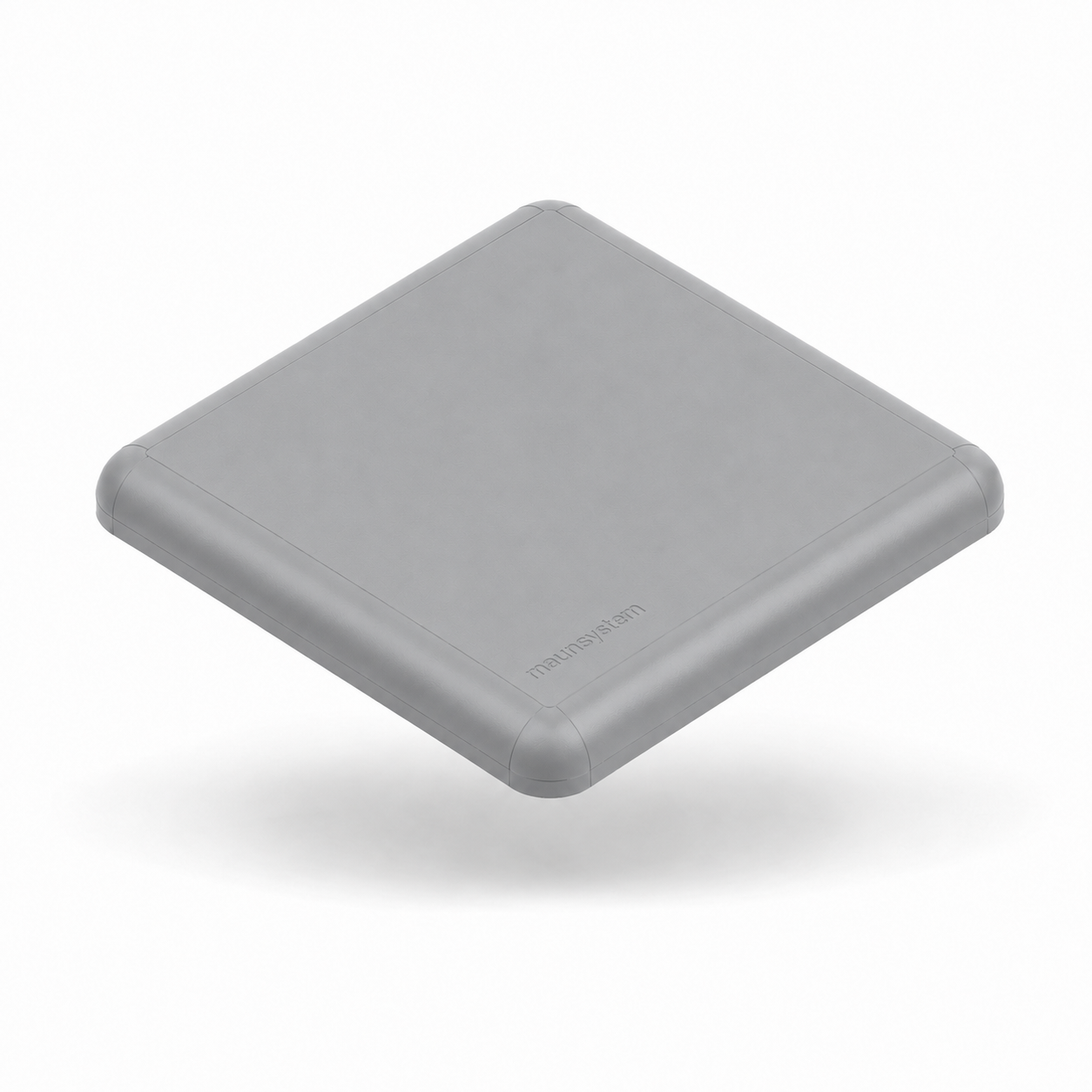

Cap 8 40x40, grey
Colour: grey
€0.35 - €0.45*
Cap 8 40x40, grey
Colour: grey
€0.35 - €0.45*

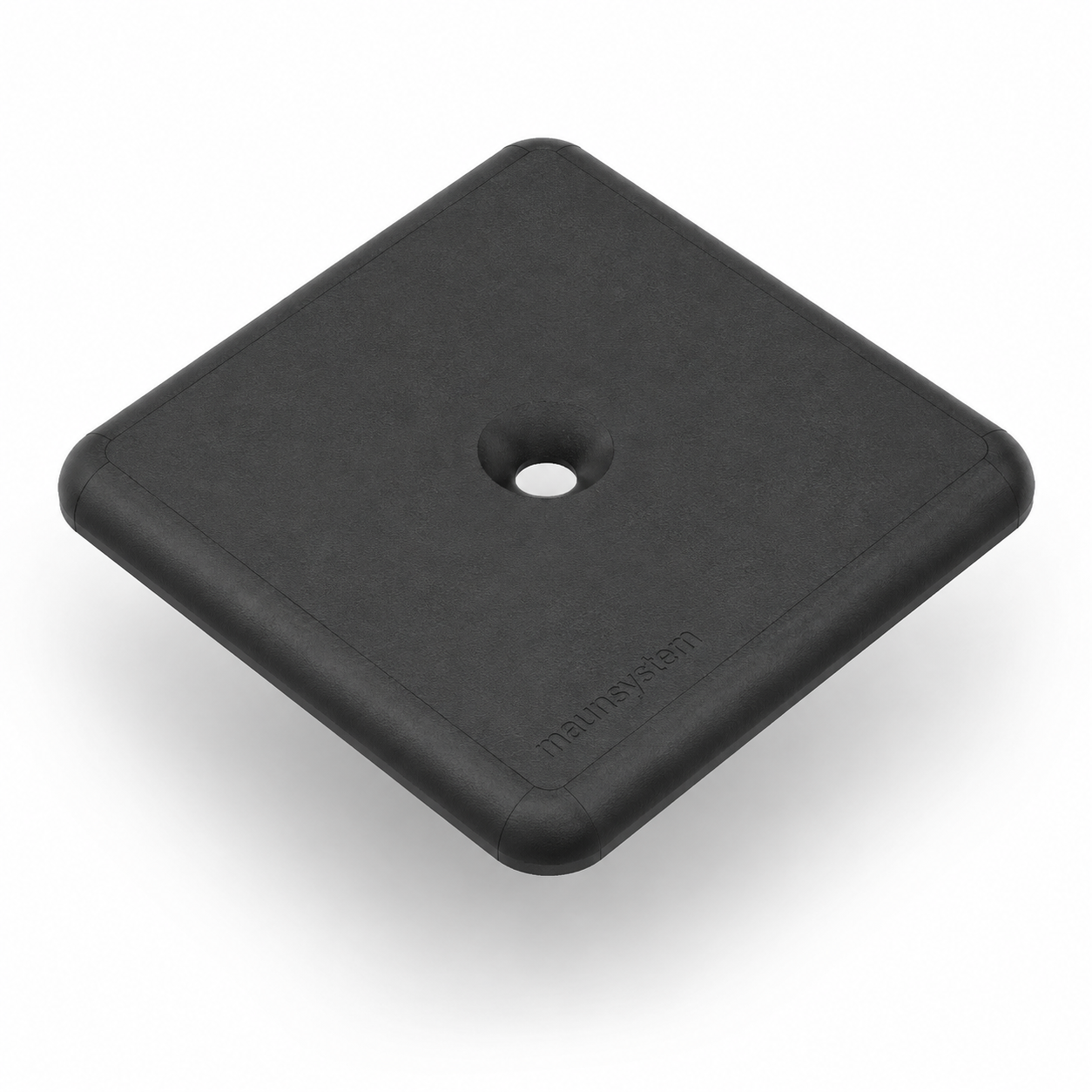

Cap 8 40x40 VS, black
€0.40 - €0.47*
Cap 8 40x40 VS, black
€0.40 - €0.47*
Accessories total price

€53.18 *

Allowed range: 20 mm to 6000 mm, step size: 1 mm.
PDF-Datasheet
Product number: PI-1410 SZ
Manufacturer: Maunsystem GmbH
Manufacturer number: 1006714
Weight: 2.56 kg

Product information "Clamp Profile 8 40x40-180°, natural"

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws. Clamping profiles are used to build large and stable protective panels. The panel elements are screwed together with cylinder head screws and clamping strips. The direct screwing of the panel element supports the stability of the panel. Panel size: clear inside dimension +30.0 mm
Cut to size max. 6000 mm

Compatible with item 0.0.429.95

Details

Ix    11,4    cm4
Iy    13    cm4
Wx    5,7    cm3
Wy    6,2    cm3
Profilfläche    8,38    cm2
Gewicht    2,56    kg/m

Step-Datei

Download
Anodised: E6EV1 10-15 µm silver
Colour: natural
Contour: Square
Delivery unit: Cuts
Execution: heavy
Groove shape: Clamp Profile
Material: Al Mg Si 0.5 F25, artificially aged
Nutauszugskraft: F=5.000 N
Profile length: Cut length
Series: Series 8
Size: 40x40 mm
Tolerances: EN 12020-2
Breite Profil: 40 mm
Höhe Profil: 40 mm
Funktionsintegration: Flächenbefestigung
Skip product gallery
Cap 8 40x40, black Cap 8 40x40, black
AI-1020-S
Cap 8 40x40, black
0.0.026.01

From €0.25*
Cap 8 40x40 ESD, black Cap 8 40x40 ESD, black
AI-1020-ESD
Cap 8 40x40 ESD, black
0.0.696.27

Variants from €0.25*
From €0.59*
Cap 8 40x40, grey Cap 8 40x40, grey
AI-1020-G
Cap 8 40x40, grey
0.0.627.16

Variants from €0.25*
From €0.35*
Cap 8 40x40 VS, black Cap 8 40x40 VS, black
AI-1022
Cap 8 40x40 VS, black
Abgerundete Abdeckkappen für die Stirnfläche der verschiedenen Profilquerschnitte.Das Entgraten der Schnittfläche entfällt. Abdeckkappen werden durch Verschrauben in die Kernbohrungen befestigt.

From €0.40*
