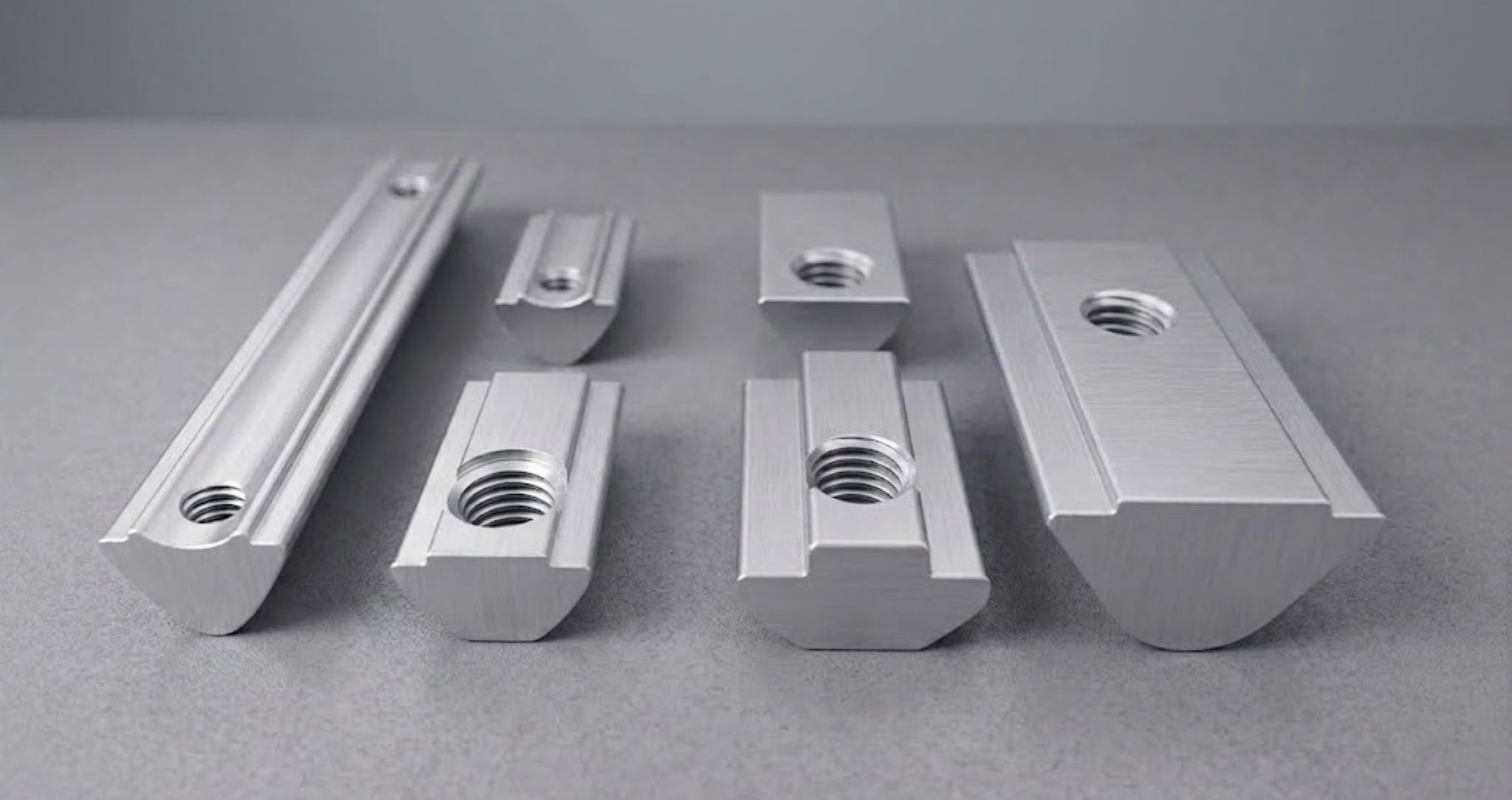

T-slot nut comparison: types, torques and material
Introduction: why choosing the right T-slot nut matters
In modern special machine building, in industrial furnishing and in fixture construction, aluminium construction profiles form a modular and load-bearing basis for frames, guards, enclosures and assembly workstations. The actual load capacity depends largely on the profile cross-section chosen, on the connecting elements used, on the load case at hand and on the structural design. The T-slot nut is the fundamental link within these modular profile kits.
Technically it is a rectangular or rhombic connecting element with a metric internal thread. Its outer geometry is matched precisely to the undercut of a standardised T-slot. The T-slot nut, also called a sliding nut or slot nut, provides the internal thread for the fastening screw. Depending on the design and the profile geometry, preload and operating forces are introduced into the profile through defined contact surfaces.
Unlike permanent joining methods such as welding, or machining operations such as drilling, using T-slot nuts allows attachments and profile connectors to be positioned anywhere along the slot – infinitely adjustable, fully reversible and non-destructive. For designers and technical buyers, choosing the right T-slot nut deliberately has a major influence on load capacity, assembly times and the lasting vibration resistance of the whole assembly.
The three main types compared directly
Industrial connection technology distinguishes primarily between three designs. Each has specific properties in terms of load capacity, assembly flexibility and set-up time.
1. Slide-in T-slot nut (standard block form): maximum load capacity for initial assembly
The classic slide-in T-slot nut in a heavy block design has a T-shaped cross-section. In this design the narrower web matches the slot opening, while the wider foot is matched to the slot chamber.
- Positive locking principle: as the screw is tightened, the foot bears against the slot webs of the profile. The transmission of force therefore takes place through the contact surface inside the profile.
- Pull-out strength: thanks to the substantial height and a continuous thread, a high density of thread engagement is achieved. The load capacity that can actually be reached has to be checked against the manufacturer's data and the specific load case. Blanket statements about pull-out, profile deformation and safety factors are not admissible.
- Limitation: by design, the slide-in nut can only be inserted from the end face, that is, through the open ends of the profile slot. Once a profile frame has been assembled and closed off at the ends, fitting this type later is usually impossible.
2. Spring-loaded T-slot nut (swivel-in, with ball or leaf spring): the ergonomic winner
The spring-loaded T-slot nut, also called a swivel-in nut, solves the problem of having to assemble from the end face. It can be placed into the open profile slot from above at any point in the structure and swivelled into position.
- Integrated fixing: this type has a spring-loaded pressure element in the form of a stainless steel ball or a leaf spring. As the nut is inserted, this element is compressed and then actively presses the nut against the slot flank.
- Advantage on vertical members: the spring holds the nut in position during assembly. It does not replace a load-bearing bolted joint and must not be treated as a fall-arrest device on its own.
- Efficiency in practice: using elements that can be pre-positioned can noticeably save assembly time where set-up and adjustment work is frequent. The actual effect depends strongly on the individual design and the specific process.
3. Hammer nut and rhombic T-slot nut: ideal for later fitting and retrofit
The hammer nut and the rhombic T-slot nut have a chamfered, diamond-shaped geometry.
- Turn-and-lock technique: on many hammer or rhombic nuts, the element is turned into a locking position by tightening the screw after insertion. The direction of rotation and the exact behaviour depend on the product and have to be checked against the relevant data sheet.
- Serrated surface: many hammer nuts have a sharp knurled or serrated structure on the contact face. Serrations or contact surfaces can penetrate the anodised layer locally and support electrical contact. For ESD applications, system measurement, manufacturer approval and the requirements of the specific installation are what count.
The three main types in direct technical comparison
| Criterion | Slide-in nut (block form) | Spring-loaded nut (ball/leaf spring) | Hammer nut / rhombic nut |
|---|---|---|---|
| Assembly route | Slid in from the end face | Swivelled in directly from the side | Inserted from above and turned in |
| Fitting later | No (requires an open profile end) | Usually possible | Yes, ideal for modifications |
| Pre-positioning | Slides freely (no self-friction) | Held by spring force | Loose until turned into contact |
| ESD suitability | Only in an explicitly conductive version with verified contact | Only in a conductive version (e.g. with a grub screw) | Supported by integrated serrations where contact is verified |
| Load capacity | Depends on size, profile and load case (usually high) | Depends on size, profile and load case | Depends on size, profile and load case (usually lower than the block form) |
Selection criteria: how to find the ideal T-slot nut
To guarantee a joint that is reliable in the long term, the following core criteria have to be checked and observed when specifying T-slot nuts:
Check system compatibility: the nominal size alone is not enough
The greatest risk of failure in fixture and frame building lies in mixing incompatible profile components. Although identical nominal widths are offered on the market for different construction kits (the universally used slot 8, for example), the manufacturer-specific slot geometries differ fundamentally.
- I-type (item compatible): characterised by specific flank angles, radii and slot chamber geometries.
- B-type (Bosch compatible): has a different undercut shape and different tolerance ranges.
- The mechanical consequences: differing geometries can lead to poor seating, reduced load capacity or damage. Only combine them where the manufacturer has approved it.
Understanding the profile designation: a standard example such as 40x80L I-type slot 8 follows a clear, market-standard nomenclature:
- 40x80: the outer dimension of the profile cross-section in millimetres.
- L: the light version (wall thickness class).
- I-type: the common market designation indicating item compatibility (not a universal standard). The designation and the compatibility always have to be verified against the manufacturer's information.
- Slot 8: a nominal slot opening width of 8 mm.
Material choice: zinc-plated steel, stainless steel or ESD aluminium?
How well a bolted joint resists physical and chemical influences from its environment is governed primarily by the material chosen and its surface finish.
- Steel (property class 8 or 10): the proven industry standard. Material, property class and surface finish do, however, have to be considered separately. Zinc-plated high-strength steels can suffer hydrogen embrittlement if the process is not controlled properly. Suitability for a specific case has to be secured through the manufacturer's information and the coating specification.
- Stainless steel (A2 / A4, material 1.4301 / 1.4404): stainless steel can make sense where corrosion, hygiene or outdoor use are involved. Selection and admissibility depend on the environment and on manufacturer approval. Suitable assembly conditions and approved lubricants help against galling.
- ESD-conductive versions (aluminium or steel with cutting edges): these T-slot nuts penetrate the anodised Al2O3 protective layer of the profile mechanically. They thereby provide a defined, permanently low-resistance discharge path for the static discharge of sensitive assemblies.
Material and surface comparison for T-slot nuts
| Material | Typical property class / grade | Corrosion resistance | ESD suitability | Mechanical properties and particularities |
|---|---|---|---|---|
| Steel, electro-galvanised | Property class 8 | Medium (ideal for dry interiors) | Yes, via separate contact screws | Very high mechanical load capacity, universally usable, economical. |
| Steel, black oxide | Property class 10 | Low (needs a light film of oil) | Yes, where it penetrates | Maximum load capacity (quenched and tempered); preventing brittle fracture requires the manufacturer's assurance. |
| Stainless steel | A2 / A4 (e.g. 1.4301 / 1.4404) | Excellent (resistant to acids and moisture) | Yes, via the mechanical fit | Rust-free, hygienic, tends to gall when assembled dry. |
| Aluminium | EN AW-7075 / anodised | High (naturally oxidising barrier) | Excellent (inherently conductive) | Very light, gentle on aluminium profiles, lower thread strength than steel. |
Determining slot width and thread size (M3 to M12)
Determining the slot width exactly is the basis for specifying parts without error. To do so, measure the clear width of the slot opening at the narrowest point of the profile cross-section with a calibrated vernier caliper.
maunsystem allocation matrix (example dimensional specifications for product families)
The table below shows example geometric parameters for centred T-slot nuts.
| Nominal T-slot | Thread size d | Nut width a (mm) | Overall height h (mm) | Flange height k (mm) | Foot width e (mm) |
|---|---|---|---|---|---|
| Slot 5 | M4 | 5.0 | 6.5 | 3.0 | 9.0 |
| Slot 6 | M5 | 6.0 | 8.0 | 4.0 | 10.0 |
| Slot 8 | M6 | 8.0 | 10.0 | 6.0 | 13.0 |
| Slot 10 | M8 | 10.0 | 12.0 | 6.0 | 15.0 |
| Slot 12 | M10 | 12.0 | 14.0 | 7.0 | 18.0 |
Important note: slot width, thread and outer dimensions depend on the system and the product.
maunsystem selection aid for common profile series
| Slot width | System (type) | Recommended version | Material | Thread (recommended) | Typical use |
|---|---|---|---|---|---|
| Slot 6 | B & I | with spring (swivel-in) | Zinc-plated steel | M3 to M6 | Fitting later, very light frames. |
| Slot 8 | B & I | with spring (swivel-in) | Zinc-plated steel | M4 to M8 | Universal, fast positioning of standard structures. |
| Slot 8 | B (Bosch) | with web (anti-rotation) | Zinc-plated steel | M5 to M8 | Structures exposed to vibration, defined angular positions. |
| Slot 8 | I (item) | Standard (slide-in) | Zinc-plated steel | M4 to M8 | Economical initial assembly where slot ends are open. |
| Slot 10 | B & I | with spring (swivel-in) | Zinc-plated steel | M5 to M10 | Robust gantry frames, heavy handling equipment. |
| Slot 10 | B (Bosch) | heavy / load-bearing | Stainless steel | M6 to M10 | High loads, damp zones, outdoor areas. |
| Slot 12 | B & I | with spring (swivel-in) | Zinc-plated steel | M6 to M12 | Heavy-duty special machines, gantry frames. |
Assembly and torque notes: keeping your joint secure for good
The static and dynamic strength of a profile joint depends heavily on observing the correct mechanical assembly parameters. To avoid common mistakes in practice, keep strictly to the following design and assembly guidelines:
- Align the guide web precisely: the guide web on the top of the T-slot nut centres the element in the slot opening automatically. This stops the nut from tilting as the screw is driven in and ensures that both slot flanks are loaded symmetrically.
- Match the tightening torque to the whole system: the permissible torque has to be determined from the screw grade, lubrication, engagement length, T-slot nut and profile manufacturer. The table value for a screw is not automatically the permissible torque for the whole profile joint. The pure strength value of a screw (11.3 Nm for an M6 8.8 socket head screw to DIN 912, for instance) must not be equated with the permissible system torque of the profile joint. For example, the torque for the integrated grub screw of the item-compatible T-slot nut F of series 8 is limited to 3 Nm, so that the anodised layer is penetrated in a controlled way without plastically deforming the slot webs of the aluminium profile.
- Inspection intervals and maintenance: inspection intervals have to be derived from the risk assessment, the manufacturer's information, the load and the operating environment. On safety-relevant joints or ones exposed to vibration, documented inspections make sense.
Special case: C-rail applications on vehicles and in leisure use (DIY and camping)
One field of application for T-slot nuts outside classic B2B machine building is mounting to the C-rails on vehicle roofs (such as the VW T5/T6 Multivan or California) for the flexible attachment of roof boxes, solar panels, awnings or lashing eyes.
- Practical problems with standard components: using unsuitable fasteners outdoors invites rapid corrosion. In addition, simple loose sliding plates tend to turn with the screw inside the channel as it is tightened, which makes assembly considerably harder.
- Product example for C-rails: in practice, the Thule T-track adapter (part number #23898, thread M6, length 35 mm, plate size 20 x 27.5 mm) is frequently used for VW-type T-slot profiles. Note, however, that all roof and vehicle mountings have to be designed strictly in line with the official approvals and load limits of the vehicle manufacturer and the rail manufacturer.
- Safety warning for vehicle mounting: make absolutely sure that the fastening screw is not driven too far through the T-slot nut. A screw that is too long bears against the sensitive slot base of the vehicle's own C-rail and can damage the roof permanently. Precisely dimensioned thread lengths or spacers are therefore essential.
Future trends: circular economy, Cr6-free coatings and the digital twin
Modern industrial assembly and connection technology is undergoing continuous change towards greater sustainability and seamless digitalisation.
- The digital twin: manufacturers increasingly supply CAD data and product metadata digitally. The scope of this information (precise weight or recycled content, for example) varies between suppliers and systems.
- Chromium-VI-free passivation (Cr6-free): to protect the environment and to comply with strict REACH and RoHS directives, reputable manufacturers consistently use environmentally friendly, chromium-VI-free passivation processes for zinc-plated steel elements.
- Modularity as a sustainability factor: the straightforward dismantling and infinite reuse of profiles and T-slot nuts contributes actively to the circular economy, because existing assemblies can be taken apart without damage at the end of the product life cycle and reconfigured.
Conclusion: the right T-slot nut for every application
Analysing the mechanics makes clear that the lasting operational safety and the assembly efficiency of complex profile structures depend largely on matching the T-slot nuts precisely to the system. The following guidelines can be used for an application-based choice:
- For initial assembly under high static load, slide-in block nuts are suitable, because their substantial geometry supports even force introduction and a high load capacity.
- Spring-loaded nuts with a ball are particularly suited to vertical members and overhead assembly, because the spring-loaded element holds the nut against falling out and thus makes assembly easier.
- For later extensions (retrofit) or where access is tight, hammer nuts and rhombic nuts offer an assembly-friendly solution, because they can be inserted from above and locked by turning.
- For every assembly, check system compatibility (I-type vs. B-type) carefully in advance, in order to avoid mechanical damage or a loss of load capacity through incompatible geometries.
FAQ – the most important questions about T-slot nuts
What is the difference between a slide-in nut, a spring-loaded nut and a hammer nut?
Can I use T-slot nuts for I-type profiles in B-type profiles?
How do I determine the slot width and the matching thread size?
What tightening torque applies to a profile joint?
Which material is right: zinc-plated steel, stainless steel or an ESD version?
What is the ball spring on a spring-loaded T-slot nut for?
