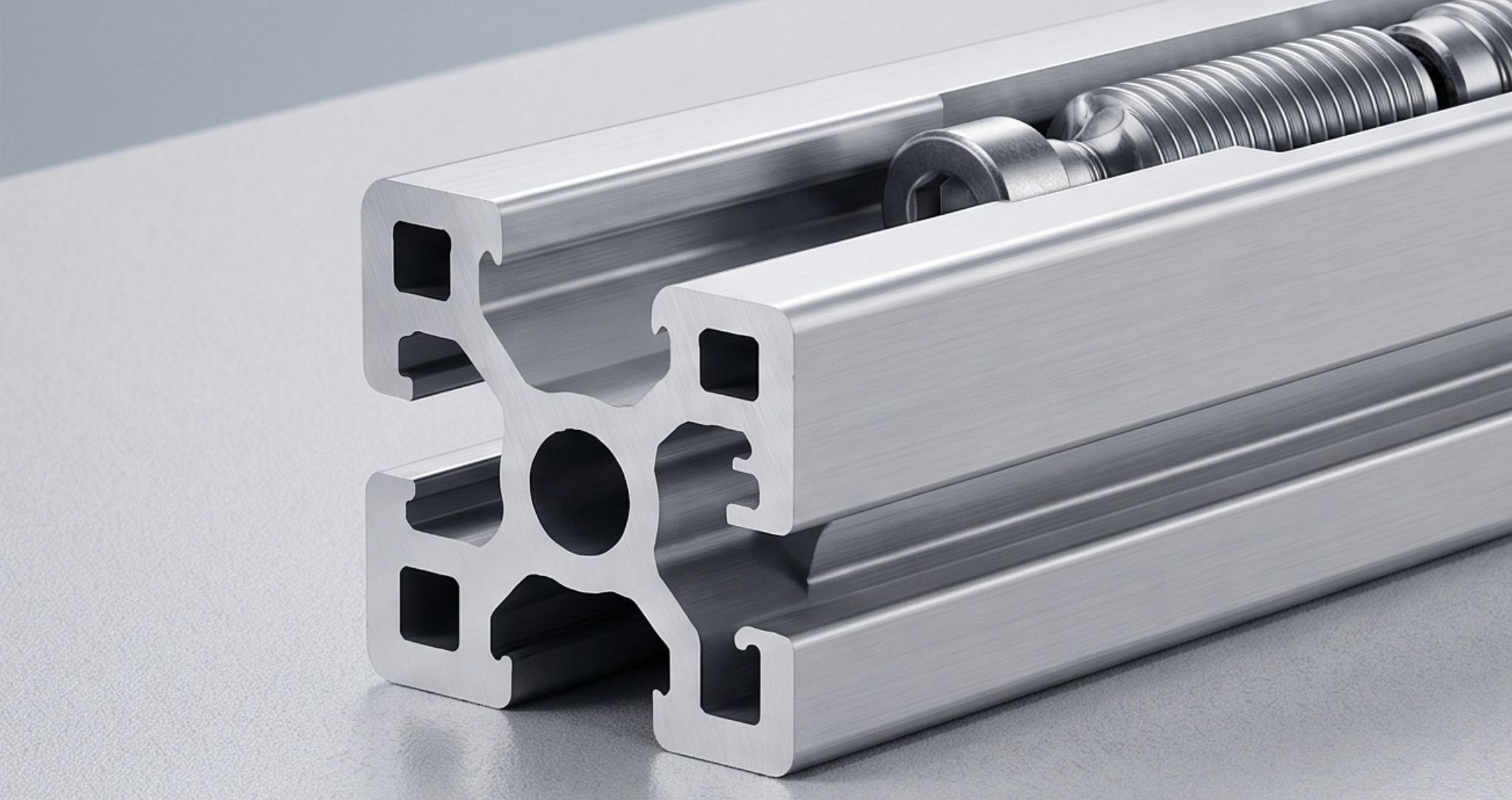

What is a butt connector for aluminium profiles?
A butt connector (also called a longitudinal connector or profile extension) is a mechanical assembly component that joins two aluminium construction profiles end to end, at 180°. Its main purpose is to extend profile lengths beyond the standard delivery length (usually 6,000 mm) or to make economical use of offcuts. The joint is made with a form and friction fit inside the T-slot or the core bore. Note that the bending stiffness at the joint is reduced compared with a continuous profile cross-section.
What is a butt connector?
The butt connector is the central element for creating linear extensions in modular profile systems. Aluminium profiles (series 8 or 10, grid 40/45, for example) are usually supplied in 6-metre bars. Butt connectors are therefore used for conveyor sections, large-format guard fences or linear axes with a greater span.
Unlike brackets, which join profiles at 90°, the butt connector continues the profile axially. It usually sits hidden inside the slot or the central core bore, so the outer contour stays free for attachments such as panel elements or sliding doors.
Technically, there are two main types:
- Profile butt connectors (internal): they are slid into the profile slots and clamped with grub screws.
- Automatic connectors (end face): they are screwed into the core bore of one profile and slide into the slot of the counterpart.
Purpose & key questions
When profile extensions are used, the same central questions come up again and again in design and procurement:
- What happens to the stiffness?
Can the joined beam take the same bending moment as a continuous profile? The answer is no: the joint is typically the weakest link in terms of deflection. - Is machining necessary?
Does anything have to be drilled or tapped, or is cutting to length and assembly with a hex key enough? Many butt and automatic connectors are designed so that they can be fitted with no machining, or very little. - Does the slot stay usable?
Does the connector block the slot channel for later T-slot nuts or panel elements? Internal butt connectors often block the slot locally, while end-face automatic butt connectors leave the slot largely free.
Relevance in an industrial context
- Logistics & standardisation: machine frames can be transported in segments and coupled on site.
- Cost reduction (offcut optimisation): remaining pieces are put to economical use.
- Flexibility in special machine building: profiles can be extended later instead of being replaced completely.
Key components / technical elements of butt connectors
- Connector body: mostly zinc-plated steel or stainless steel, made to fit the T-slot precisely.
- Grub screws / set screws: they create the clamping force. The correct tightening torque is decisive for resistance to vibration.
- Equipotential bonding (ESD): some designs break through the anodised layer as they are tightened and thus allow electrical conductivity.
- How the force is transmitted: tensile and compressive forces are transmitted well, bending moments only to a limited degree. Under high loads, additional external plates are recommended.
Factors influencing selection & application
When designing a profile extension, engineers have to weigh up the following factors:
| Factor | Effect on the butt connector |
|---|---|
| Load case & dynamics | With vibration or high bending moments, reinforce with external plates. |
| Profile cross-section | Large profiles offer more clamping area; heavy profiles use several connectors in parallel. |
| Machining effort | Automatic connectors save drilling time but need access to the end face. |
| ESD / conductivity | Choose conductive connectors where earthing is required. |
| Appearance vs. function | Internal connectors are invisible; external plates are stronger but visible. |
| Compatibility | Matched to slot 8, slot 10 and so on; mind the system type (I-type / B-type). |
Benefits for companies & engineering teams
For the company:
High material efficiency through the use of offcuts. Standard lengths can be combined flexibly into extra-long members. Stock-keeping stays lean and predictable.
For design & production:
The reversible design allows existing structures to be dismantled, extended or shortened. Iterations in fixture building become easier.
Practical tip for design & purchasing
Avoid placing the joint where the moment is highest.
- Best practice: place the joint close to a support leg (at about one fifth of the span).
- Stagger the joints: do not butt parallel profiles at the same position.
- Additional security: use extra external plates under critical loads.
A current example
Project: a modular enclosure for a 15-metre transfer line. The profiles were delivered in 3-metre segments and coupled on site with automatic butt connectors. Because no external plates were used, polycarbonate panel elements could be run continuously in the slot. Assembly time was reduced considerably compared with a welded structure.
Future trends
The trend is towards circular assembly. Butt connectors make it possible to refurbish existing frames and thus contribute to lower carbon emissions. In future, digital CAD systems will deliberately integrate offcuts into new designs.
Conclusion
The butt connector is a central element for scalable aluminium structures. It solves the problem of limited profile lengths and supports sustainable practice by reusing offcuts. What matters is positioning the joint correctly in structural terms and reinforcing it where necessary.
