Angle brackets for aluminium profiles explained

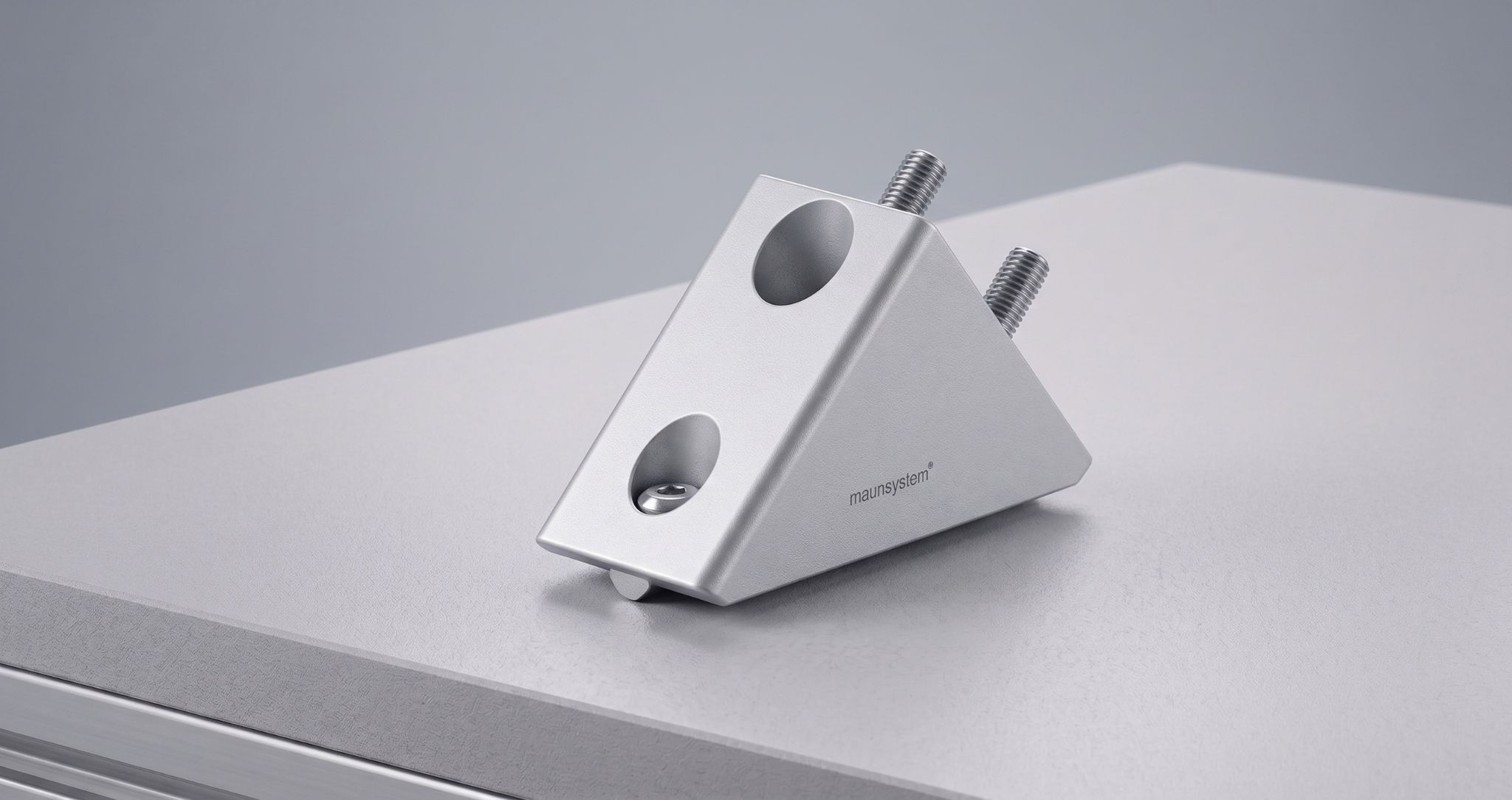

An angle bracket (also corner bracket or mounting bracket) is a form- and force-fitting connecting element for modular aluminium construction profiles. Its main job is to join two profiles at right angles and to stiffen frame structures. Fitted flexibly in the T-slot with T-slot nuts and screws, it allows assembly without any machining and without drilling.
What is an angle bracket?
In modular profile systems – of the kind known from Maunsystem, item or Bosch Rexroth – the angle bracket is a frequently used element for creating 90° nodes. It is mounted externally onto the profile faces and connects the slots of two profiles.
Unlike internal connectors or automatic connectors, the angle bracket remains visible. Technically it performs two functions:
- Connection: it holds two profiles together (a column and a strut, for example).
- Stiffening: thanks to its geometry, often with reinforcing ribs, it acts as a gusset plate and increases the bending stiffness of the corner against moments.
Typical fields of application are machine frames, guard fences, heavy workstation systems and fixtures – wherever stability comes before appearance, or where something has to be added later.
Purpose & key questions
- When do I use a bracket instead of an internal connector?
When no machining of the profile is wanted and high stability is required. - What is the role of the lugs (centring aids)?
They ensure correct alignment and prevent the bracket from twisting. - Does the joint withstand dynamic loads?
Yes, but the correct tightening torque – and, where necessary, steel instead of die-cast aluminium – is decisive.
Relevance in an industrial context
- No machining: the profiles do not have to be drilled or tapped. That shortens the throughput time in the workshop.
- Extendable later: a stiffening bracket can be added to an existing structure at any time without dismantling the frame.
- Process reliability: standardised T-slot nuts and defined tightening torques make the strength of the joint reproducible – important for machine designs that have to conform to standards.
Key components / technical elements of angle brackets
- The body: usually die-cast aluminium (light, corrosion-resistant) or zinc-plated steel (as a heavy-duty bracket for high loads). Often with ribs to increase the moment of inertia.
- Centring lugs (anti-rotation): small raised features on the back, matched to the profile slot (8 mm or 10 mm, for example). They prevent the bracket from twisting under load (positive fit).
- Fixing set: T-slot nuts or hammer nuts plus socket head screws (DIN 912, for example). The property class (8.8 or 10.9) determines the preload.
- Cover cap: plastic (PA/ABS) to improve the appearance and to reduce dirt deposits and the risk of injury.
Factors influencing selection & application
| Factor | Effect on the choice of angle bracket |
|---|---|
| Load case | Static: die-cast aluminium is sufficient. Dynamic or shock loads: heavy-duty steel brackets or additional bracing are needed. |
| Profile slot | Has to match (slot 5, 6, 8, 10), particularly when the centring lugs are used. |
| Mounting position | Cross joint vs. 90° corner. On cross joints the centring lugs often have to be removed. |
| Environment | Damp rooms or outdoors: use anodised parts and stainless steel screws. ESD areas: allow for serrated washers or a conductive coating. |
| Accessibility | Brackets sit proud and take up space in the slot – be careful where panel elements are involved. |
| Appearance | Visible areas: use cover caps. For a clean design: choose internal connectors instead. |
Benefits for companies & engineering teams
For the company:
Standardised angle brackets protect the investment. Racks or workstations can be dismantled and reused. Procurement is predictable and economical thanks to broad market availability.
For design & production:
Time saved because machining the profile is unnecessary. Assembly usually needs a single tool (a hex key). Sources of error such as wrongly positioned holes are reduced.
Practical tip for design & purchasing
The lug trick for maximum flexibility:
Make sure you buy angle brackets with break-off centring lugs.
- Case A (standard): the lugs stay in place. Automatic alignment in the slot, fast assembly.
- Case B (plate mounting / transverse slot): remove the lugs so the bracket can be mounted flat or across the slot.
That way one article covers several applications and stock-keeping is reduced.
A current example
In a modern low-cost automation application, a robot base for a cobot was built in 2024/25. Instead of a welded steel frame, heavy 80x80 mm aluminium profiles were used. Heavy-duty steel brackets took up the dynamic moments of the robot, while die-cast aluminium brackets were used for the enclosure. The modular concept allowed the process to be adapted later without rebuilding the structure.
Future trends
From 2026 onwards, the influence of CBAM (the Carbon Border Adjustment Mechanism) and the demand for low-carbon aluminium are gaining weight. Companies increasingly ask for evidence of the product carbon footprint. The trend is towards recycled (secondary) aluminium and designs that can be dismantled, in order to reduce the carbon footprint.
Conclusion
The angle bracket is a central element in modern machine building with aluminium profiles. It combines high stability with fast assembly and economic flexibility. Choosing the right slot size, material and tightening torque makes durable, modular structures possible.
