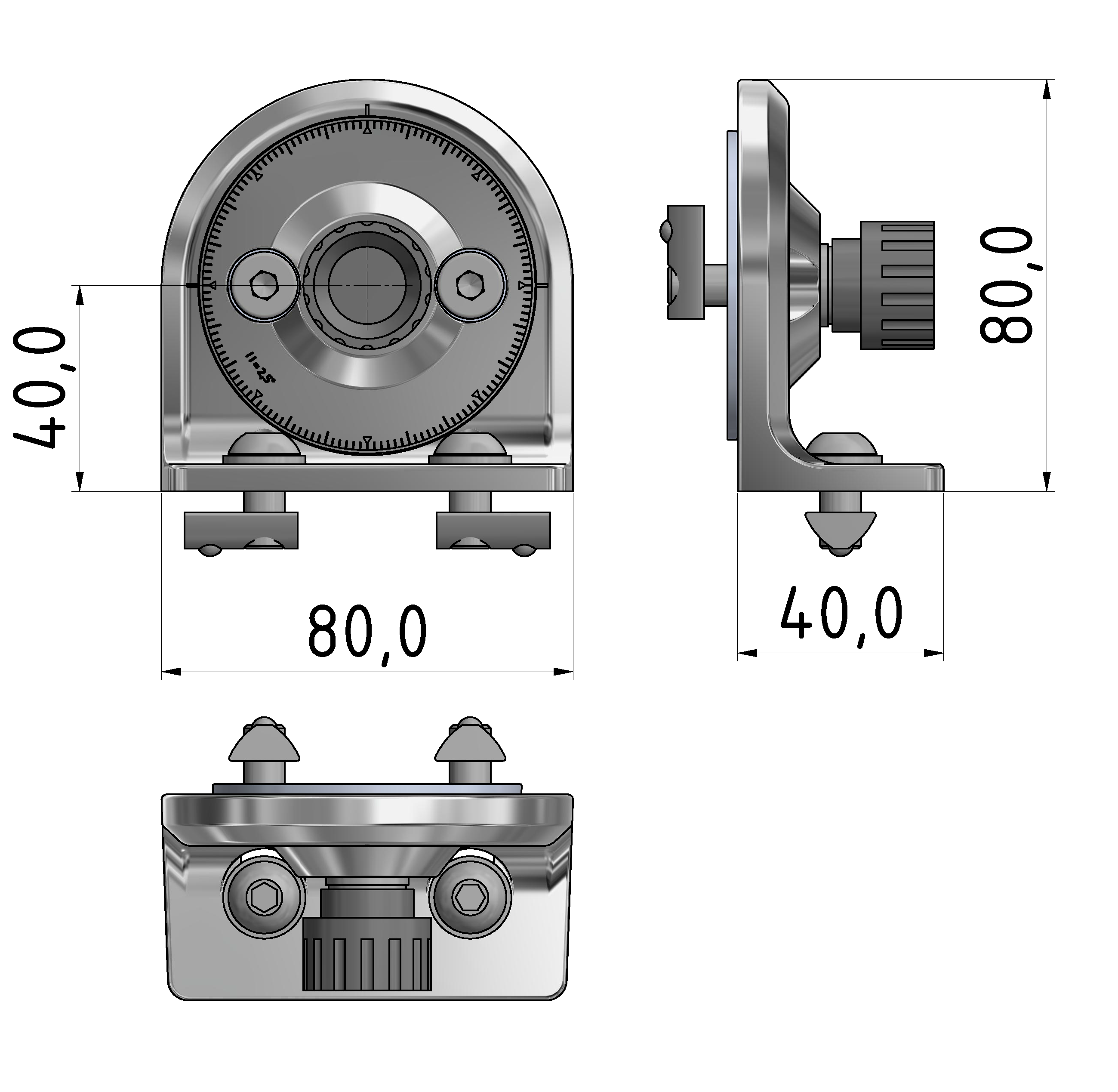

Angle Locking Bracket 8 80x40

Angle Locking Bracket 8 80x40
3D
Click and move
spatial.openArView
spatial.tapToPlaceTheObject
spatial.moveTheDeviceToStart
Angle Locking Bracket 8 80x40
Angle Locking Bracket 8 80x40
Angle Locking Bracket 8 80x40
Angle Locking Bracket 8 80x40
Angle Locking Bracket 8 80x40
Quantity Unit price
To 9
€24.92
From 10 To 99
€22.43
From 100
€21.31

PDF-Datasheet
Product number: ZI-1897
Manufacturer: Maunsystem GmbH
Manufacturer number: 1007105
Weight: 0.221 kg

Description

Product information "Angle Locking Bracket 8 80x40"

With the angle lock 40x80, constructions can be connected in an adjustable angular position.

Compatible with item 0.0.615.59

Details

  • 1 Stück Anschraubwinkel
  • 1 Stück Feststellscheibe
  • 2 Stück Druckfeder
  • 2 Stück S-1330 Halbrundschraube M8x18 ISO 7380, verzinkt
  • 2 Stück S-1103 Zylinderkopfschraube M8x18 DIN 912, verzinkt
  • 2 Stück Scheibe DIN 125 / A8,4
  • 4 Stück NI-1045 Nutenstein M8, verzinkt-8

Step-Datei

Download
Colour: white aluminium
Compatible with: item
Connector type : Hinges
Material: GD-Zn
Series: Series 8
Verbindungsart: Winkellage
