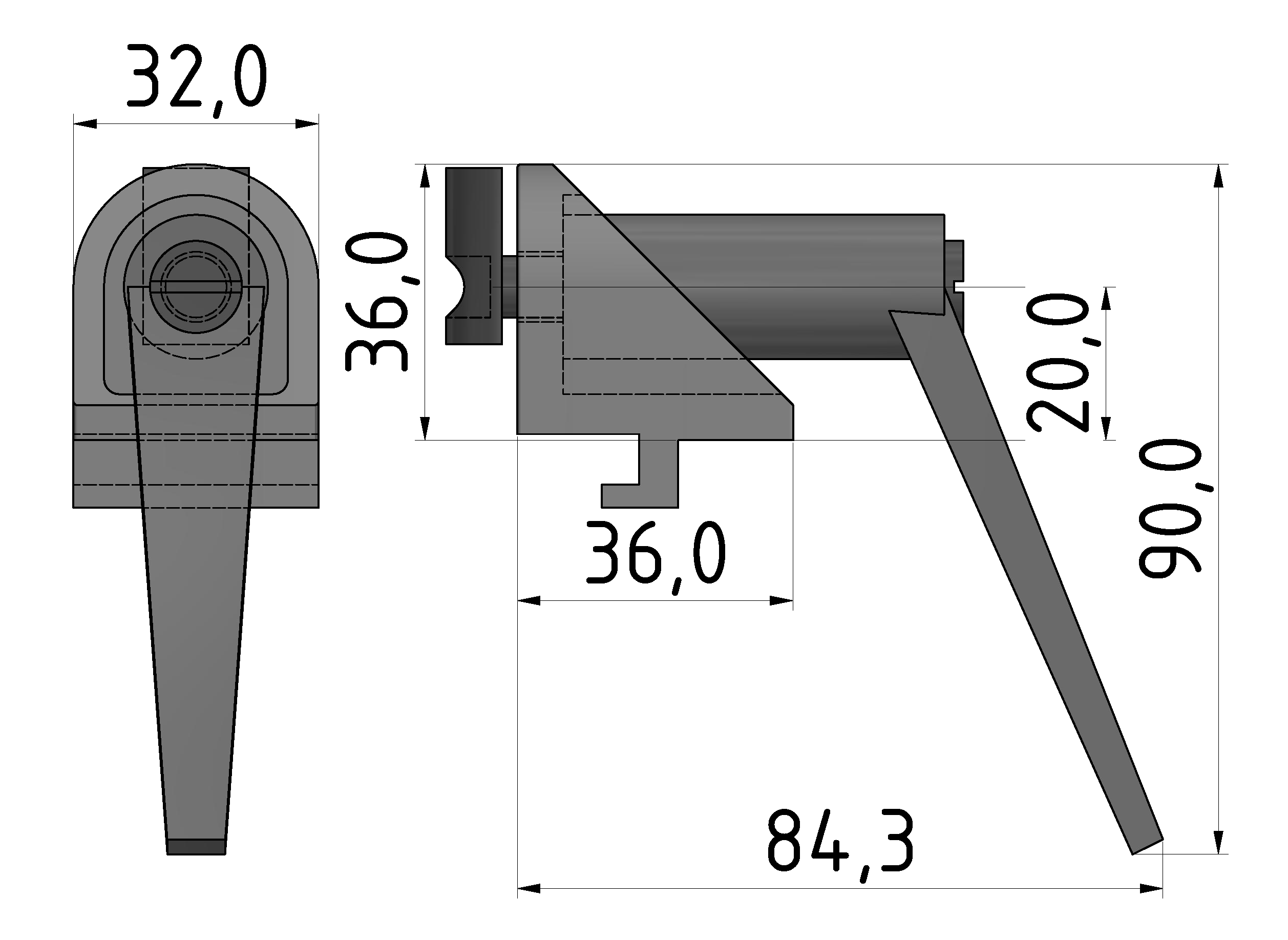

Angle Clamp Bracket 8 with Clamp Lever

Description

Product information "Angle Clamp Bracket 8 with Clamp Lever"

Clamping brackets allow two crossing profiles to be connected. They are suitable for table trays that are adjusted in position, height and inclination.


Compatible with item 0.0.457.78

Details

  • 1 StΓΌck Klemmwinkel 40
  • 1 StΓΌck Klemmhebel-40
  • 1 StΓΌck NI-1025 Nutenstein M8 steg, verzinkt-8
  • 1 StΓΌck S-1330 Halbrundschraube M8x18 ISO 7380, verzinkt

Step-Datei

Download

Colour: white aluminium
Compatible with: item
Connector type : Angle clamp bracket
Material: GD-Zn
Part type : Joints
Series: Series 8
Verbindungsart: Winkellage
