Angle Bracket Set X 8 40x40, grey
Maunsystem GmbH
| Quantity | Unit price |
|---|---|
| To 9pcs |
€6.10
|
| From 10 To 99pcs |
€4.50
|
| From 100pcs |
€4.23
|
Product number:
ZI-6075
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1003715
Weight:
0.127 kg
Description
Product information "Angle Bracket Set X 8 40x40, grey"
Angles are connections without machining. These are also used as additional reinforcement of connections and as a fastening element for add-on parts. Integrated anti-twist devices for fixing in the profile are provided. These are removed if required.
Compatible with item 0.0.601.62
Details
- 1 pcs ZI-6092 Bracket Z 40x40 Zn, white aluminium-8
- 1 pcs ZI-6094 Bracket Z-End cap 40x40, grey - 8
- 2 pcs NI-1045 T-slot nut M8, galvanised-8
- 2 pcs ZI-1087 Washer 13,9x13,9x2 - for Bracket ZN, galvanised-8
- 2 pcs S-1330 Button head screw M8x18 ISO 7380, galvanised
Step-Datei
| Angle bracket type: | Angle bracket ZN, Angle bracket set ZN |
|---|---|
| Angle freely selectable: | no |
| Bending moment: | very good |
| Can be retrofitted to existing construction: | yes |
| Colour: | grey, white aluminium |
| Compatible with: | item |
| Displacement force: | very goof |
| Force limitation: | F < 1.000 N |
| Linear sliding: | yes |
| Part type : | Bracket |
| Profile processing: | without profile machining |
| Series: | Series 8 Z |
| Size: | 40x40 mm |

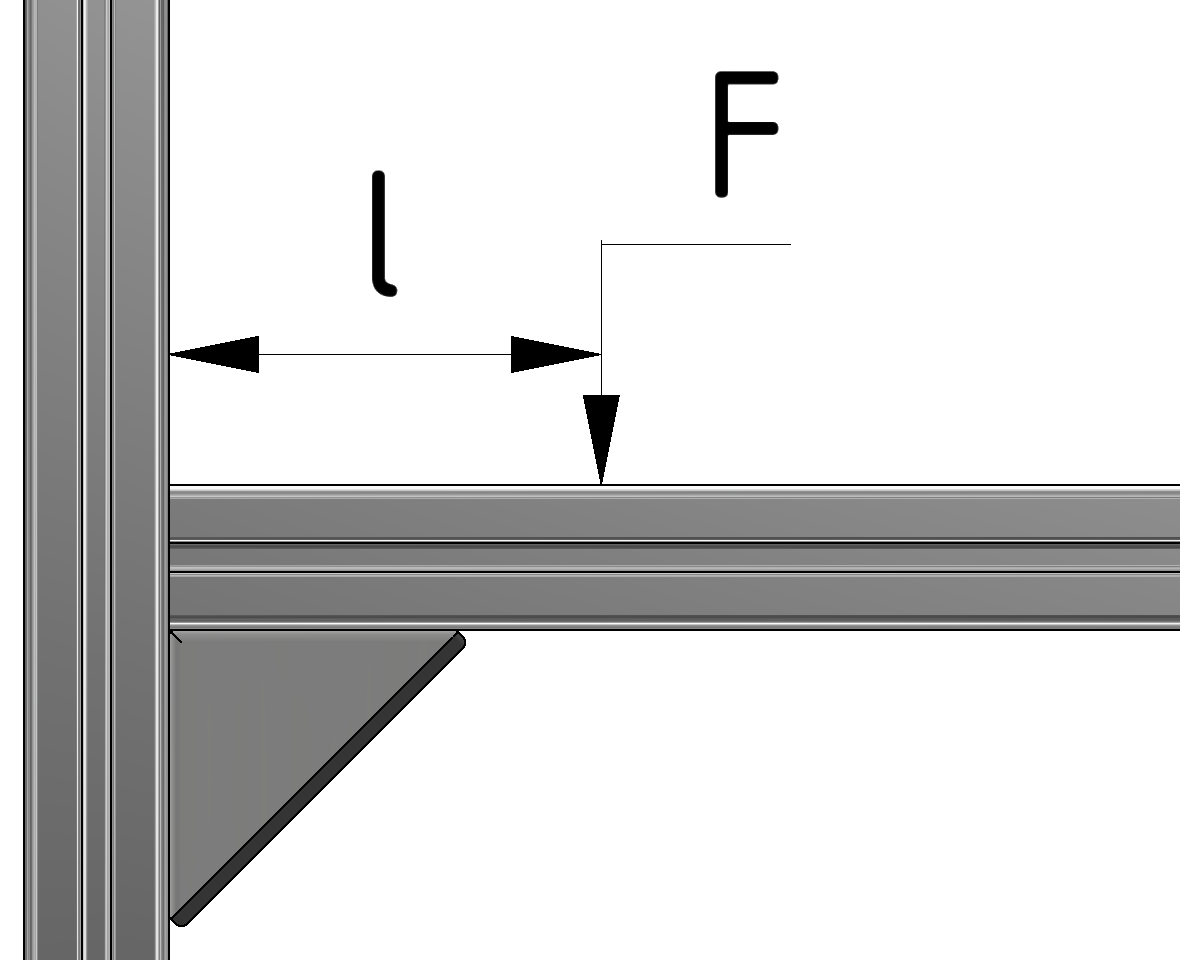

| Torque limitation: | F x l < 50 Nm |
| Torsional moment: | very good |
| Verbindungsart: | Rechtwinkelig |
