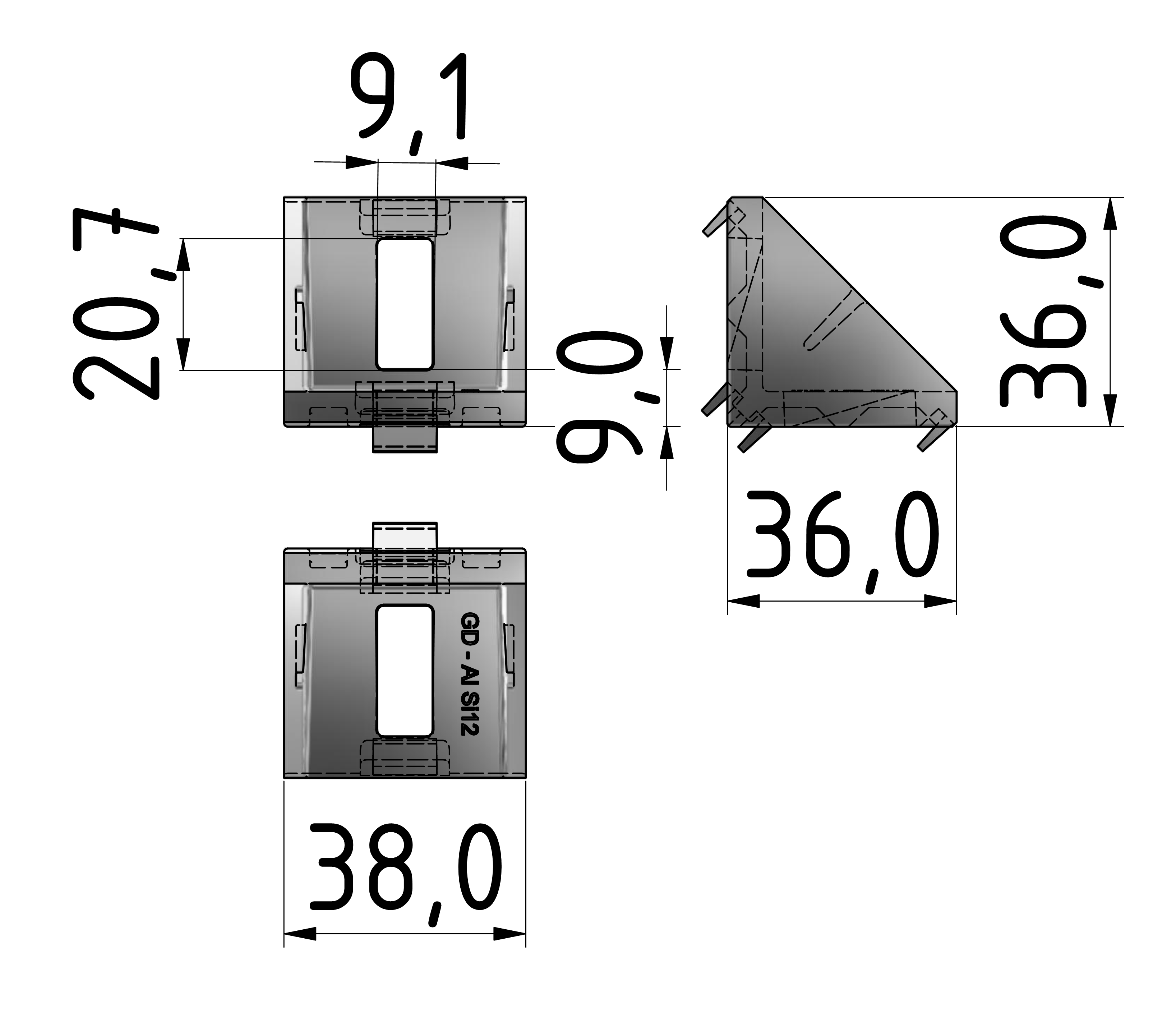

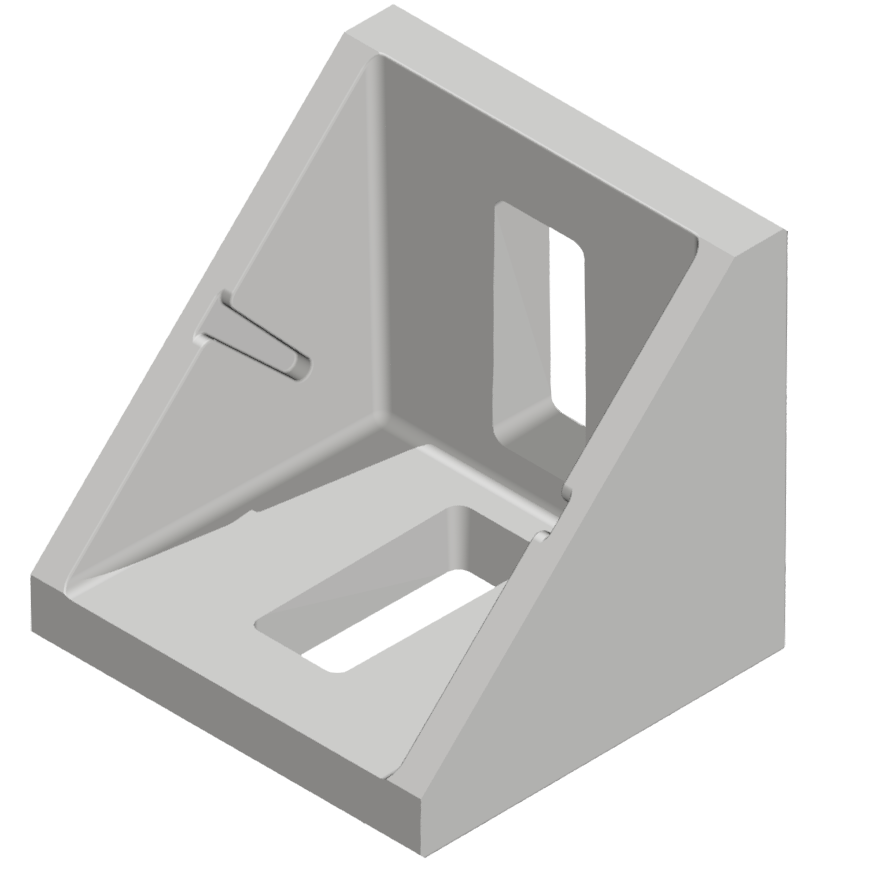

Angle Bracket 40x40 - 10

Colour: white aluminium
Angle Bracket 40x40 - 10
Angle Bracket 40x40 - 10
Angle Bracket 40x40 - 10
Angle Bracket 40x40 - 10

€2.63*

Accessories total price €0.00

Colour

accessories

Accessories total price

€2.63 *

PDF-Datasheet
Product number: ZB-3085-W
Manufacturer: Maunsystem GmbH
Manufacturer number: 1003839
Weight: 0.034 kg

Description

Product information "Angle Bracket 40x40 - 10"

Angles are a force-fit and processing wireless connection. These are also used as additional reinforcement of connections and as a fastener for attachments. Integral safety devices for fixing the profile are available. These are removed if necessary.

Step-Datei

Download
Angle bracket type: Angle bracket Al
Modular dimension: Modular dimension 40
Series: Series 10
Size: 40x40 mm
Skip product gallery

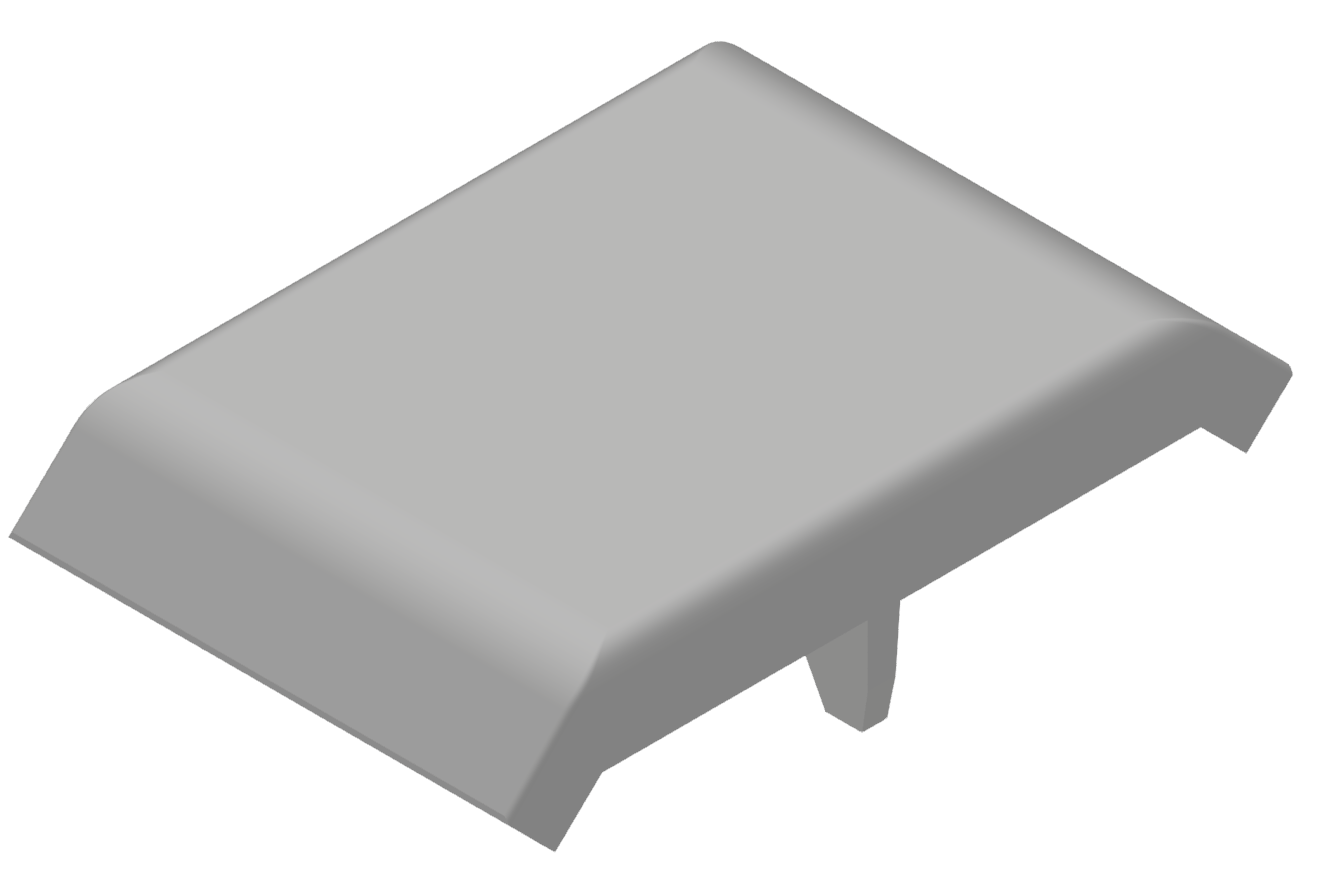

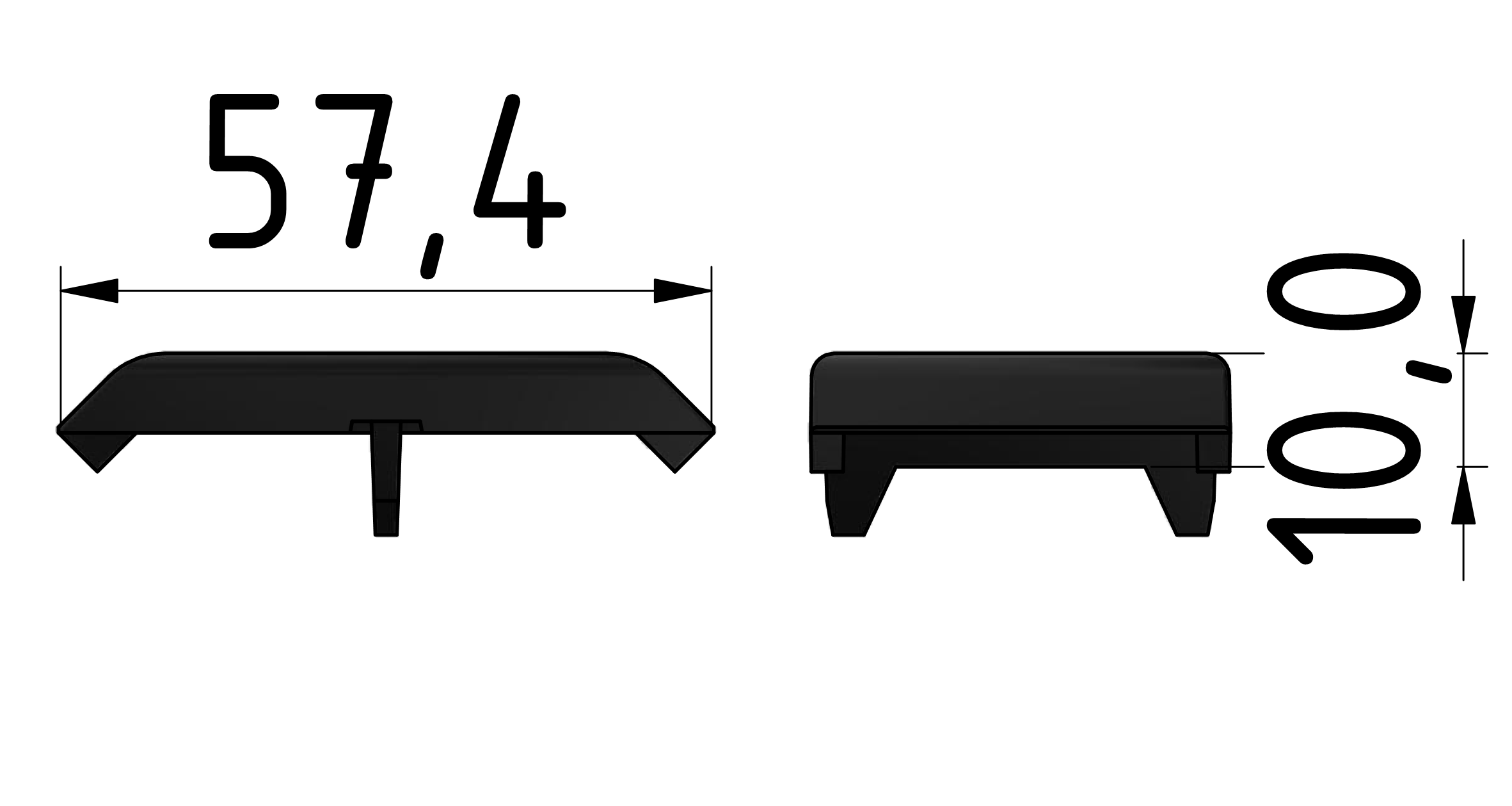

Angle Bracket Cap 40x40, grey-10 Angle Bracket Cap 40x40, grey-10
ZB-3086-G
Angle Bracket Cap 40x40, grey-10

Angle cover caps PA for angles ensure a better appearance. They avoid cuts and prevent the angle from being wasted. The assembly is simple.

€0.88
Angle Bracket Cap 40x40, black-10 Angle Bracket Cap 40x40, black-10
ZB-3086-S
Angle Bracket Cap 40x40, black-10

Angle cover caps PA for angles ensure a better appearance. They avoid cuts and prevent the angle from being wasted. The assembly is simple.

€0.70
