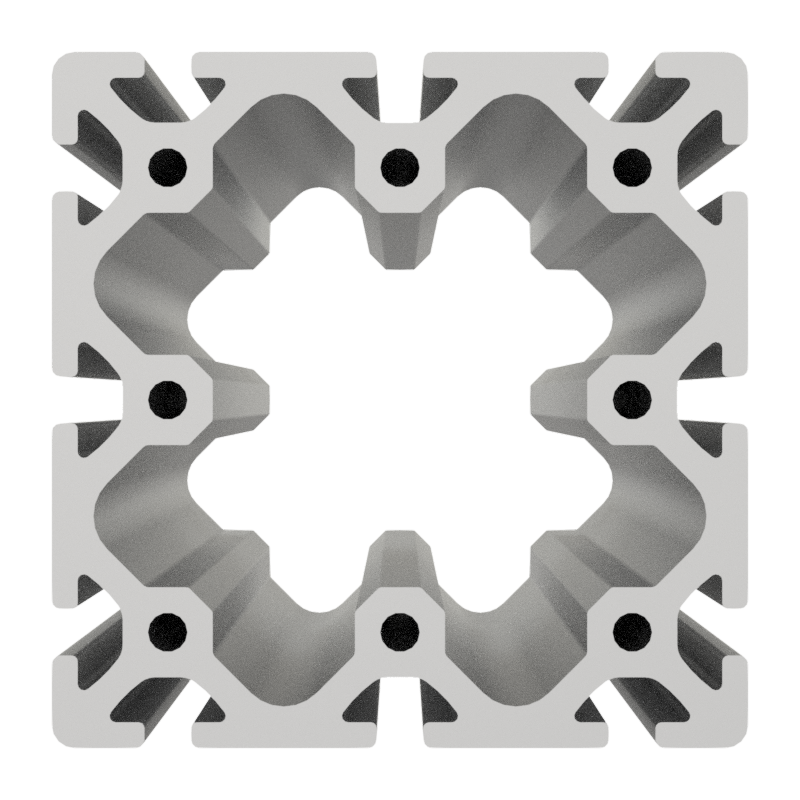

Profile 8 120x120, natural
Profile length:
Cut length
Maunsystem GmbH
Loading...
€212.53*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€212.53 *
Product number:
PI-1095 SZ
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1007533
Weight:
12.452 kg
Description
Product information "Profile 8 120x120, natural"

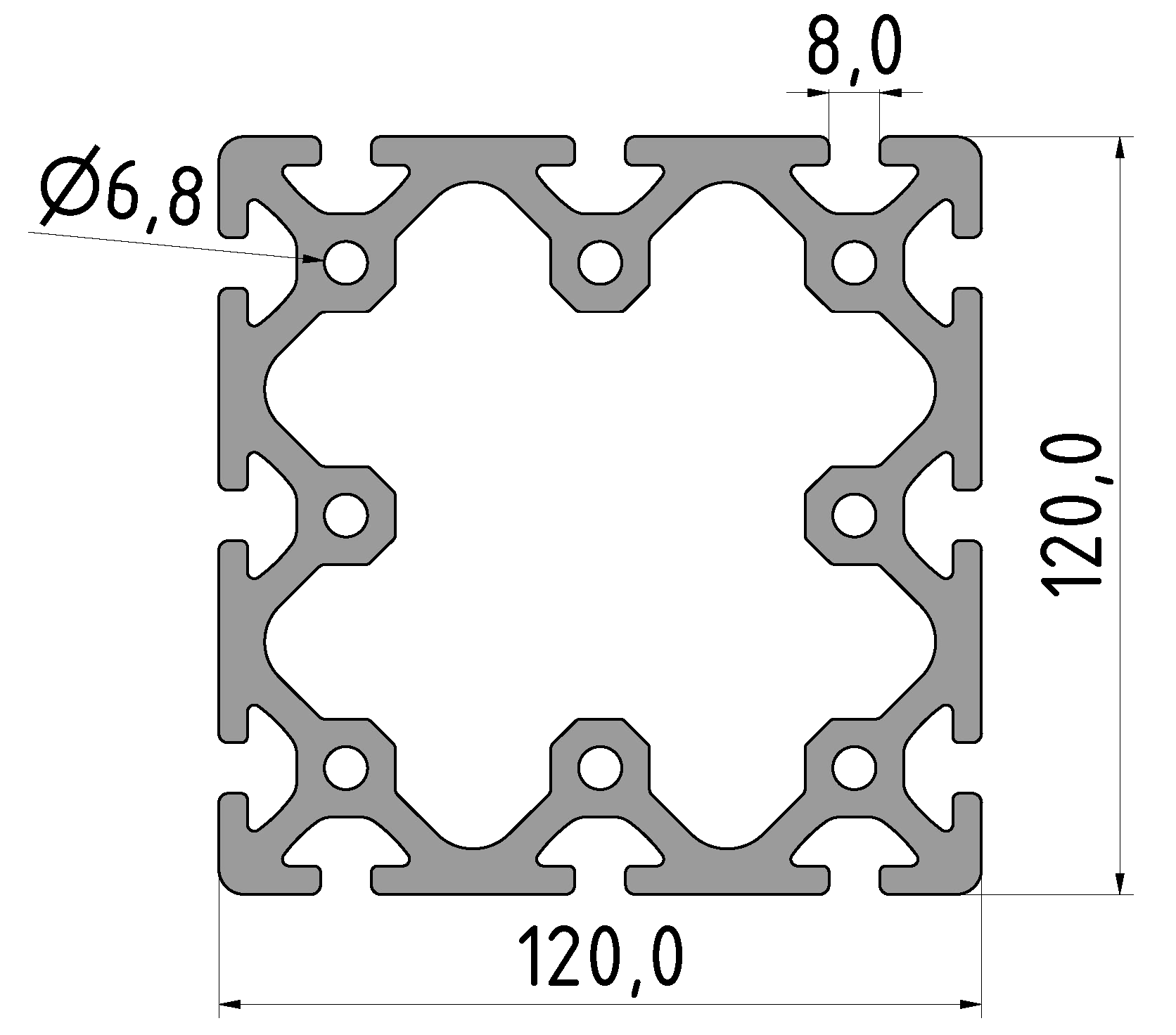

Profiles 8 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves and the core holes of the profiles 8 are designed for M8 screws.
Cut to size max. 6000 mm
Compatible with item 0.0.609.79
Details
Ix 798,83 cm4
Iy 798,8, cm4
Wx 133,13 cm3
Wy 133,13 cm3
Profile cross-section 45,92 cm2
Weight 12,39 kg/m
Iy 798,8, cm4
Wx 133,13 cm3
Wy 133,13 cm3
Profile cross-section 45,92 cm2
Weight 12,39 kg/m
Step-Datei
| Colour: | natural |
|---|---|
| Contour: | Square |
| Delivery unit: | Cuts |
| Execution: | heavy |
| Groove shape: | Open grooves |
| Profile height: | 120 mm |
| Profile length: | Cut length |
| Profile width: | 120 mm |
| Series: | Series 8 |
| Size: | 120x120 mm |
| Slot pull-out force: | F=5.000 N |
