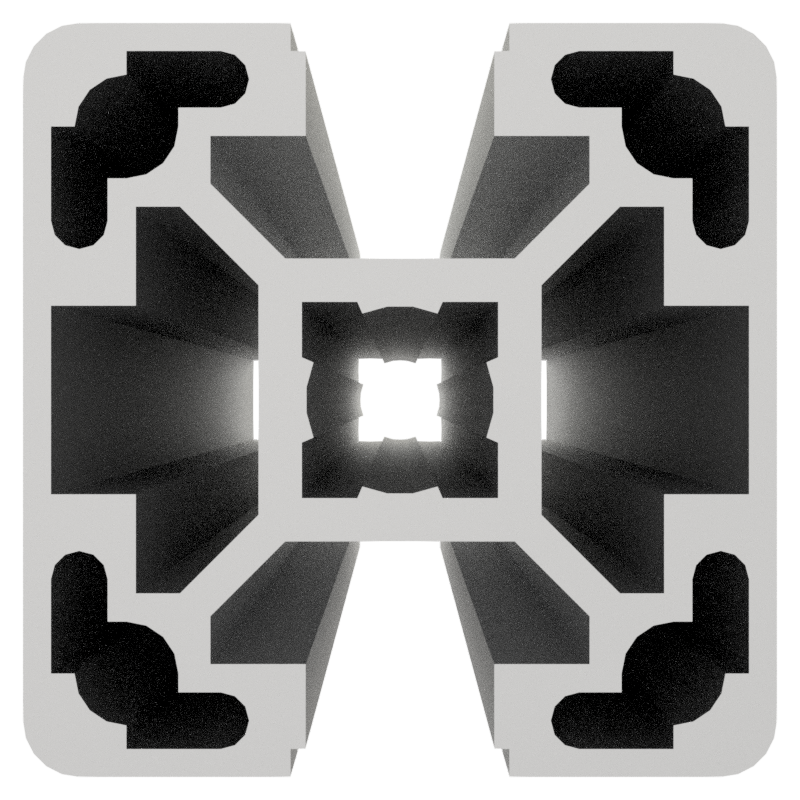

Profile 40x40 2N 180° light natural-10
Profile length:
6000 mm bar
Maunsystem GmbH
Loading...
€80.57*
| Accessories total price | €0.00 |
Below you will find matching articles
Accessories total price
€80.57 *
Product number:
PB-1124 SN6000
Manufacturer:
Maunsystem GmbH
Manufacturer number:
1001600
Length:
6000 mm
Weight:
9.576 kg
Description
Product information "Profile 40x40 2N 180° light natural-10"
The profiles in pitch 40 with groove 10 are suitable for assemblies of all kinds. Due to the different profile geometries, the material requirements can be adapted to the application. The grooves are designed for M8 screws.
Delivery length 6030 mm
Compatible with Bosch 3 842 993 187
Delivery length 6030 mm
Compatible with Bosch 3 842 993 187
Compatible with Bosch 3 842 993 187
Step-Datei
| Anodised: | E6EV1 10-15 µm silver |
|---|---|
| Colour: | natural |
| Compatible with: | Bosch |
| Contour: | Square |
| Delivery unit: | Rods |
| Execution: | light |
| Groove shape: | 2 sides closed 180° |
| Material: | Al Mg Si 0.5 F25, artificially aged |
| Modular dimension: | Modular dimension 40 |

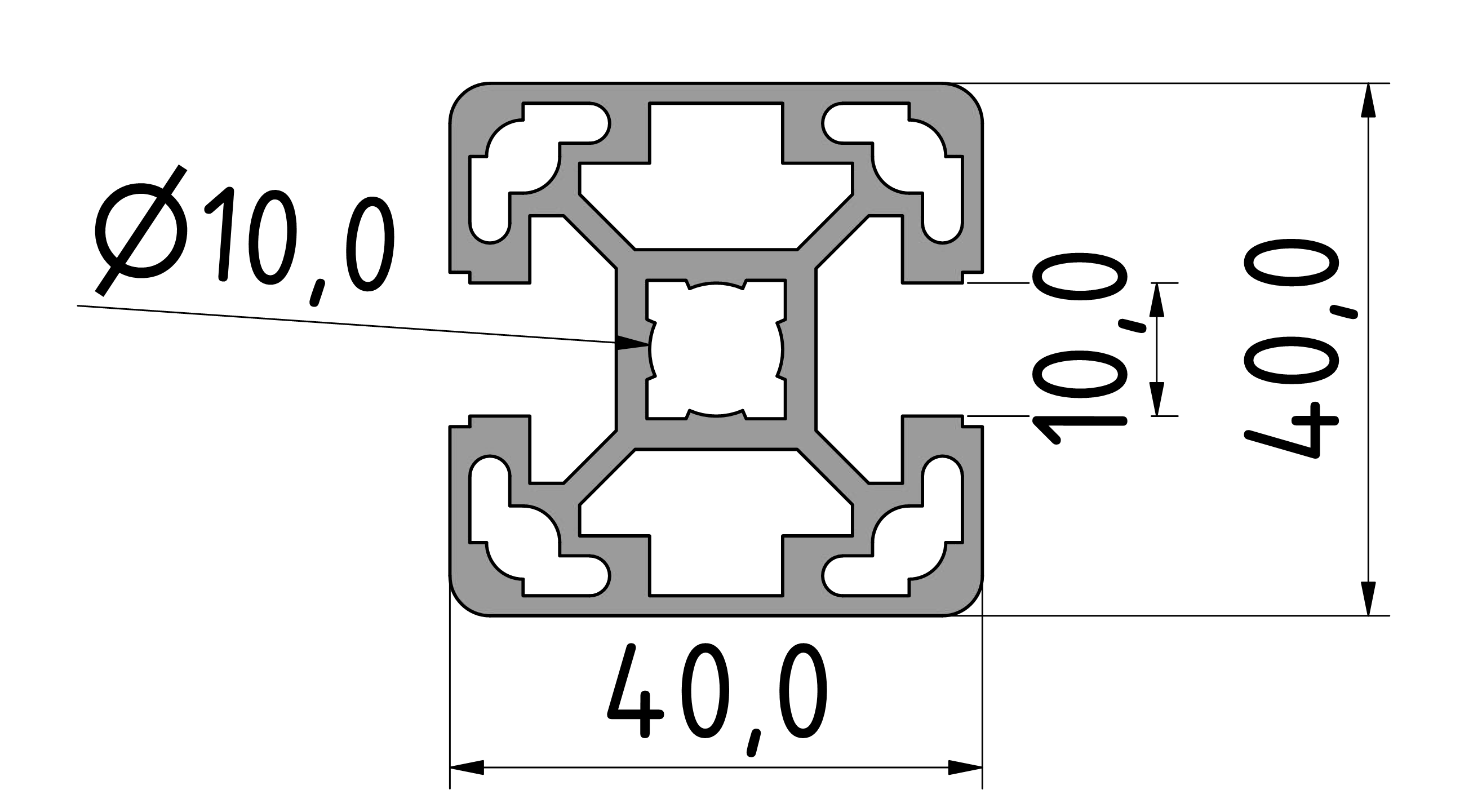

| Profile height: | 40 mm |
| Profile length: | 6000 mm bar |
| Profile width: | 40 mm |
| Series: | Series 40-10 |
| Size: | 40x40 mm |
| Slot pull-out force: | F=7.000 N |
| Tolerances: | EN 12020-2 |
